Chicago PneumaticM39-650-TL ATEX
M Motor, 0.25 - 0.39 kW, 650 RPM, Threaded Spindle, Oil-Free, ATEX
Standard vane air motor
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
M39-650-TL ATEX | M Motor, 0.25 - 0.39 kW, 650 RPM, Threaded Spindle, Oil-Free, ATEXM39-650-TL ATEX
Price on request
Details
Product information
Overview

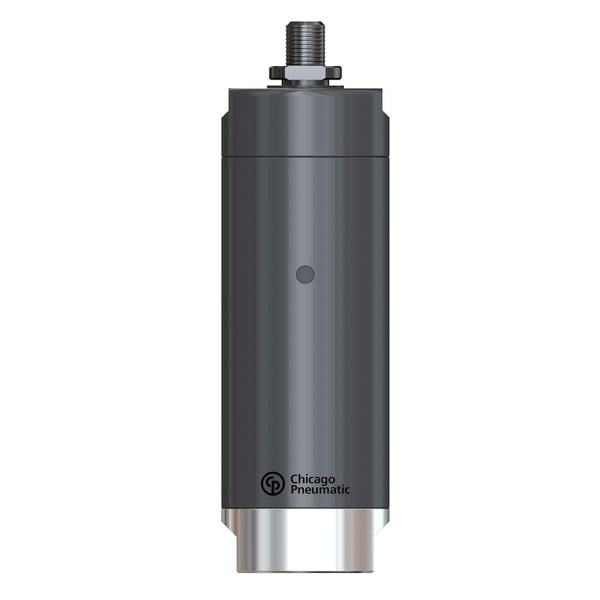

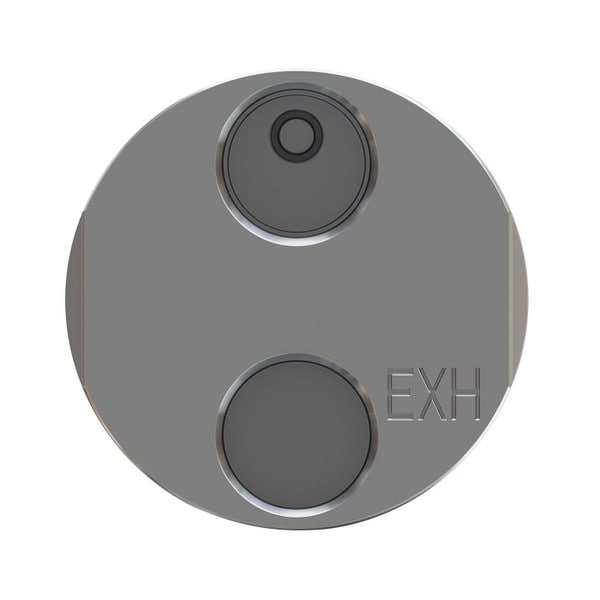

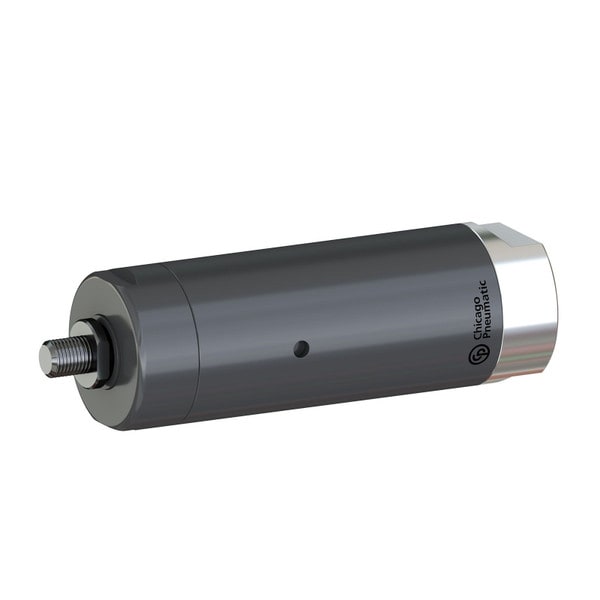

Chicago Pneumatic M39-650-TL ATEX | M Motor, 0 .25 – 0 .39 kW, 650 rpm, Threaded Spindle, Oil-Free, ATEX Certified Air Motor
| Technical Specifications | |
|---|---|
| Model | M39-650-TL ATEX |
| Manufacturer | Chicago Pneumatic |
| Free Speed (RPM) | 650 |
| SKU | 2051478694 |
| Stock Code | 3 |
| Max Torque (Ft Lb) | 8.5 |
| Max Torque (Nm) | 11.5 |
| Rated Power (kw) | 0.38 |
| Weight (lbs) | 2.25 |
| Starting Torque (ft lb) | 15.5 |
| Stall Torque (ft lb) | 17 |
| Series | M39-KL/TL |
| Air Cons. @ Load (cfm) | 17.2 |
| Rated Power (hp) | 0.51 |
| Stall Torque (Nm) | 23 |
| Weight (kg) | 1.02 |
| Air Consp. @ Free Speed (L/s) | 8.1 |
| MPN | M39-650-TL ATEX |
