CMM7177

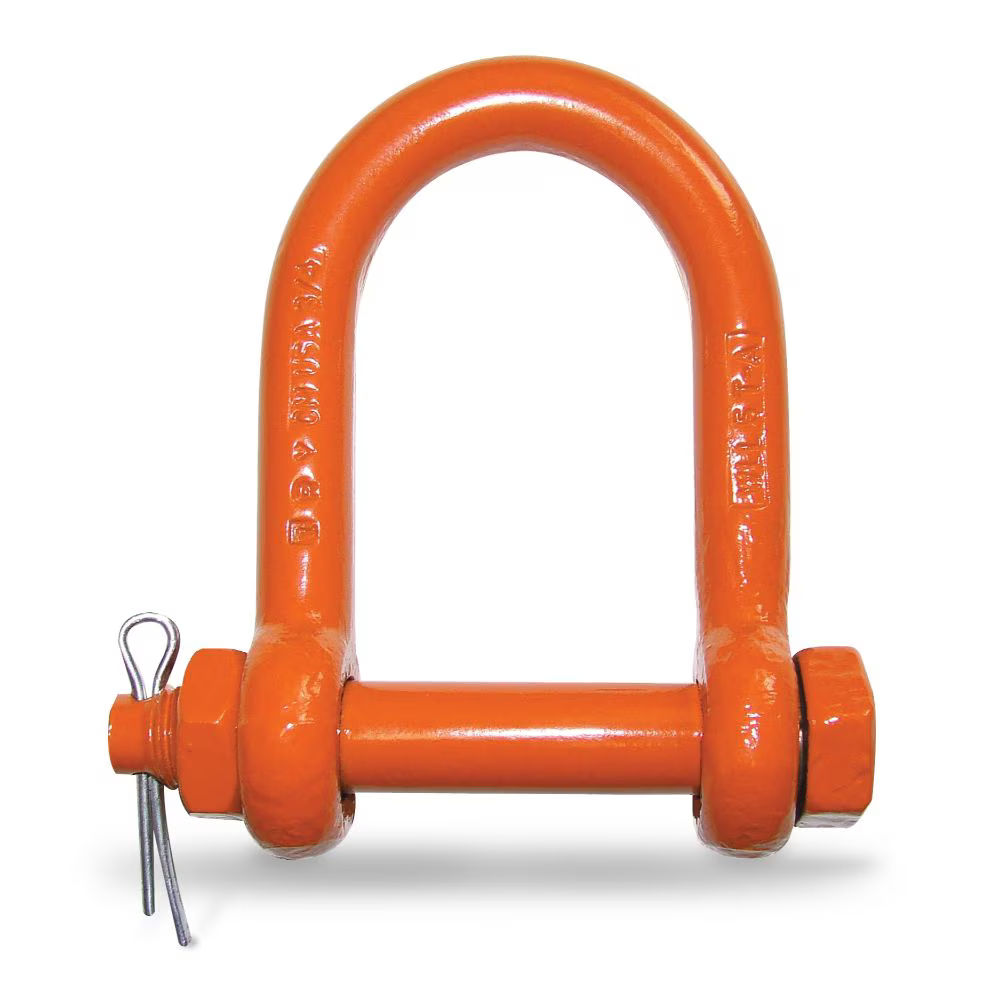

SHACKLE CHAIN-LONG REACH 1-3/4 SC''
Design factor of 5:1 Meets the requirements of ASME B30.26 Alloy Steel WLL forged on body Offered in self-colored or durable orange powder coated finish Do not point load. The load should be evenly distributed over the entire pin to achieve full working load limit.
$494.98List $618.72
Save $123.74Total$494.98Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
M7177 | SHACKLE CHAIN-LONG REACH 1-3/4 SC''M7177
Total$494.98
1
Details
Product information
Overview
CM Long Reach Shackle Self Colored Screw Pin | SHACKLE CHAIN-LONG REACH 1-3/4 SC"
WLL: 7,000 to 50,000 lbs. As one of the only manufacturers of long-reach shackles, we designed these shackles for use in construction applications where a longer reach is needed to attach to pick points.
| Technical Specifications | |
|---|---|
| Size | 1-3/4'' |
| Model | M7177 |
| Manufacturer | CM |
| Finish | Self Colored |
| Length (In) | 4 |
| SKU | M7177 |
| Weight (lbs) | 30.7 |
| Capacity (lbs) | 50000 |
| Capacity (tons) | 25 |
| MPN | M7177 |
