CMM804A
HOOK CLEVIS GRAB 1/4 G80 30/B X''
Not recommended for overhead lifting For use when high-capacity hooks are needed for tiedown/transportation applications. Quenched and tempered alloy steel Durable orange powder coated finish 4:1 Design Factor Chart Note: * Hook is marked Grade 63.
$14.66List $18.32
Save $3.66Total$14.66Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
M804A | HOOK CLEVIS GRAB 1/4 G80 30/B X''M804A
Total$14.66
1
Details
Product information
Overview

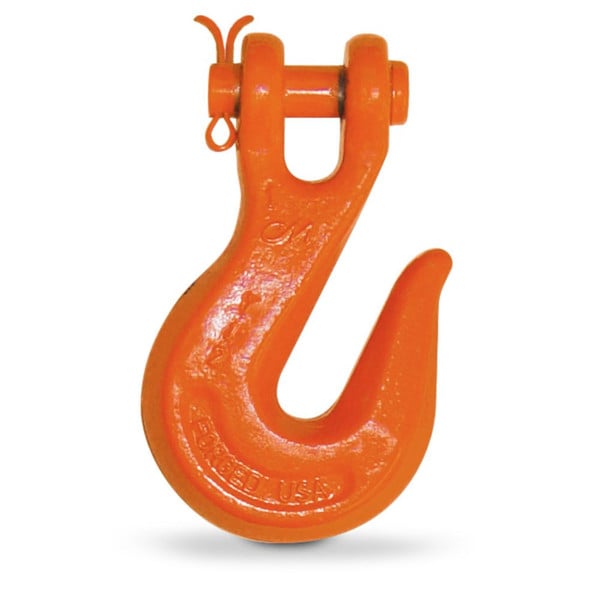

CM Clevis Grab Hook Grade 80 | HOOK CLEVIS GRAB 1/4 G80 30/B X"
WLL: 3,500 to 18,100 lbs. Sizes: 1/4 to 5/8 in. Clevis Hooks are not designed for overhead lifting, but instead are most often used for load securement with tie-down chains. Clevis hooks can be used in combination with various grades of chain including Grade 30, 43, 70 and 80. These feature a U-shaped attachment point with a pin to secure chain or other rigging attachments.
| Technical Specifications | |
|---|---|
| Size | 1/4'' |
| Model | M804A |
| Manufacturer | CM |
| Finish | Orange Powder Coated |
| SKU | M804A |
| Grade | 80 |
| Weight (lbs) | 0.56 |
| Capacity (lbs) | 3500 |
| MPN | M804A |
