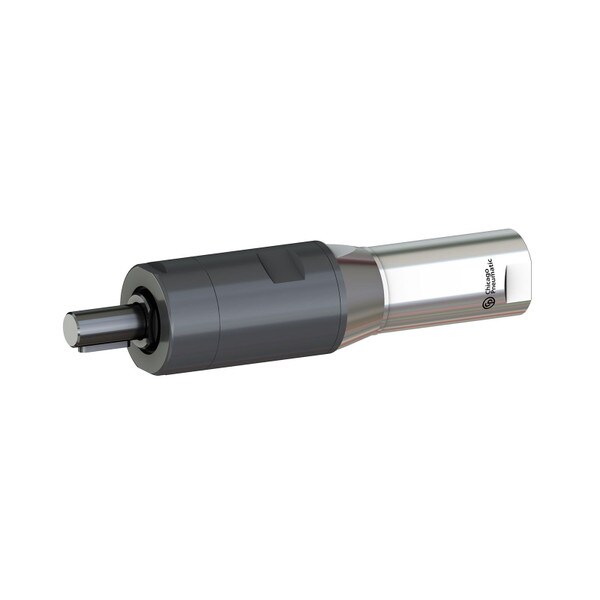

Chicago PneumaticM84-45-K ATEX
M Motor, 0.58 - 0.84 kW, 45 RPM, Keyed Spindle, ATEX
Standard vane air motor
$3,466.65List $4,333.32
Save $866.67Total$3,466.65Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorized service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
M84-45-K ATEX | M Motor, 0.58 - 0.84 kW, 45 RPM, Keyed Spindle, ATEXM84-45-K ATEX
Total$3,466.65
1
Details
Product information
Overview
Chicago Pneumatic M84-45-K ATEX | M Motor, 0 .58 – 0 .84 kW, 45 rpm, Keyed Spindle, ATEX Certified Air Motor
| Technical Specifications | |
|---|---|
| Model | M84-45-K ATEX |
| Manufacturer | Chicago Pneumatic |
| Free Speed (RPM) | 45 |
| SKU | 2051479234 |
| Stock Code | 3 |
| Max Torque (Ft Lb) | 221 |
| Max Torque (Nm) | 299 |
| Rated Power (kw) | 0.79 |
| Weight (lbs) | 10.8 |
| Starting Torque (ft lb) | 358 |
| Stall Torque (ft lb) | 441 |
| Series | M84-K |
| Air Cons. @ Load (cfm) | 34.4 |
| Rated Power (hp) | 1.06 |
| Stall Torque (Nm) | 598 |
| Weight (kg) | 4.9 |
| Air Consp. @ Free Speed (L/s) | 16.2 |
| MPN | M84-45-K ATEX |
