18V 3/8'' Square Precision Nutrunner, 13 - 58 in lbs, 180 - 1300 rpm
Makita's DFL063FZ Right Angle Brushless Nut-Runner delivers 13 - 58 in lbs of torque with 7-phase programming, wireless Poka-Yoke, and pass/fail indicators.
A specialist replies within one business day.
Recommended Accessories
5 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Model | Amp hours (Ah) | Price | Qty | |
|---|---|---|---|---|---|
 BL1820BBL1820B | 18V, 2Ah Lithium-Ion Battery$118.80 | BL1820B | 2 | $118.80 | 1 | View details |
 BL1830BBL1830B | 18V, 3Ah Lithium-Ion Battery$186.00 | BL1830B | 3 | $186.00 | 1 | View details |
 BL1840BBL1840B | 18V, 5Ah Lithium-Ion Battery$166.80 | BL1840B | 5 | $166.80 | 1 | View details |
 BL1850BBL1850B | 18V, 6Ah Lithium-Ion Battery$174.69 | BL1850B | 6 | $174.69 | 1 | View details |
 BL1860BBL1860B | 18V, 4Ah Lithium-Ion Battery$197.33 | BL1860B | 4 | $197.33 | 1 | View details |
Details
Product information
Overview

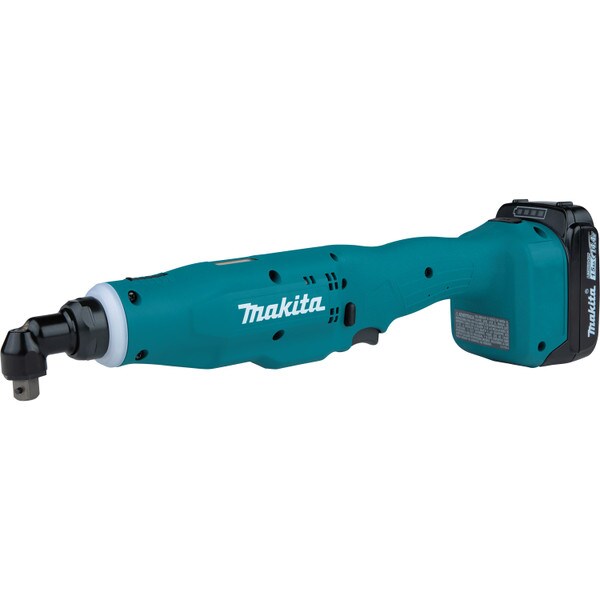

Makita's DFL063FZ LXT 18V Brushless Programmable Right Angle Nut-Runner, is designed for high-precision fastening in demanding assembly environments. With certified repeatability within 4% of mean torque, it meets the strict accuracy requirements of Automotive and Aerospace manufacturing.
Powered by their proven LXT 18V lithium-ion platform, the DFL063FZ delivers programmable torque from 13 - 58 in lbs (1.5 - 6.5 Nm) with speeds from 180 - 1300 rpm. The right-angle design provides access in tight spaces while maintaining operator comfort and fastening consistency.

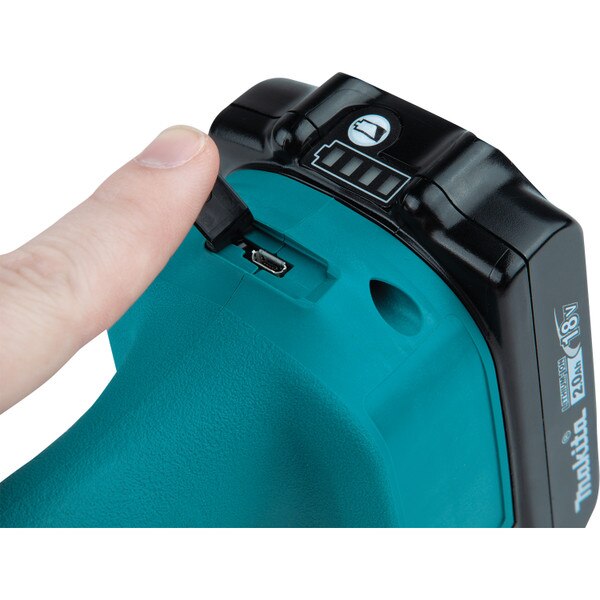

The 7-Phase Rundown Programming allows operators to program RPM, directional, and angle strategies via USB for advanced multi-stage rundown control. This improves fastening quality and assists in detecting cross-thread conditions.
Wireless Poka-Yoke capability adds another layer of quality control by confirming fastening results to your process control system, reducing errors and enhancing traceability.

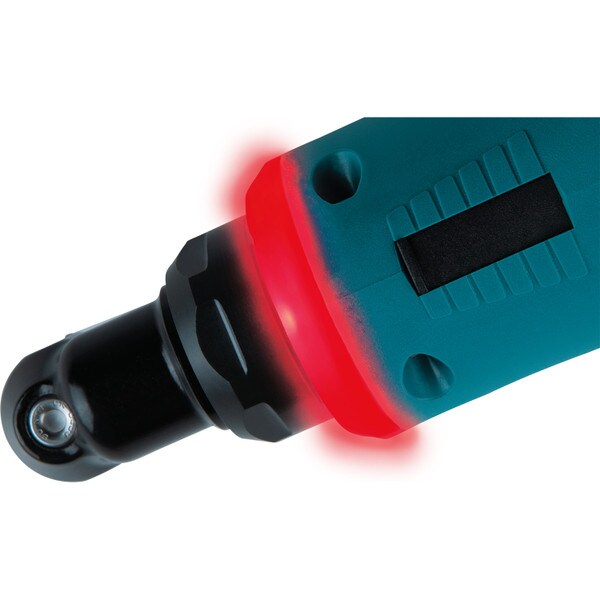

A Pass/Fail indicator lamp with audible signal gives operators immediate feedback on fastening results, clearly indicating sufficient or insufficient torque application for process reliability.
Combining brushless motor technology, intelligent programming, and ergonomic right-angle design, the DFL063FZ is a dependable solution for precision-driven industries.
Note: Tool Only, Battery sold separately.
| Technical Specifications | |
|---|---|
| Manufacturer | Makita |
| SKU | DFL063FZ |
| Model | DFL063FZ |
| Series | LXT |
| Type | Precision Nutrunner |

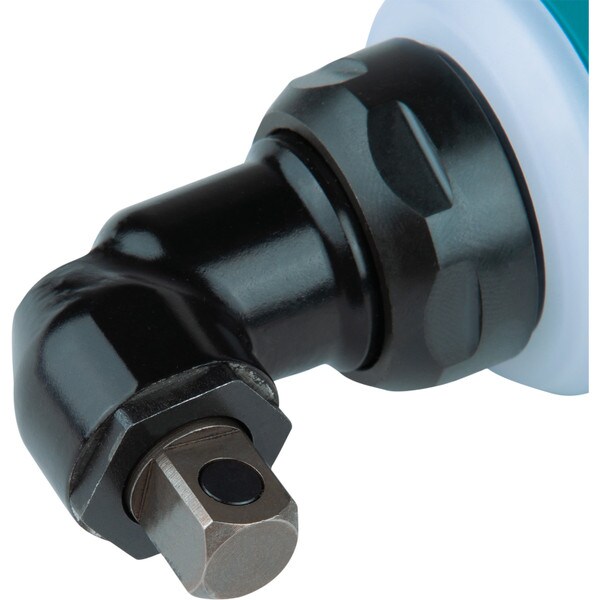

| Drive Size | 3/8'' Square |

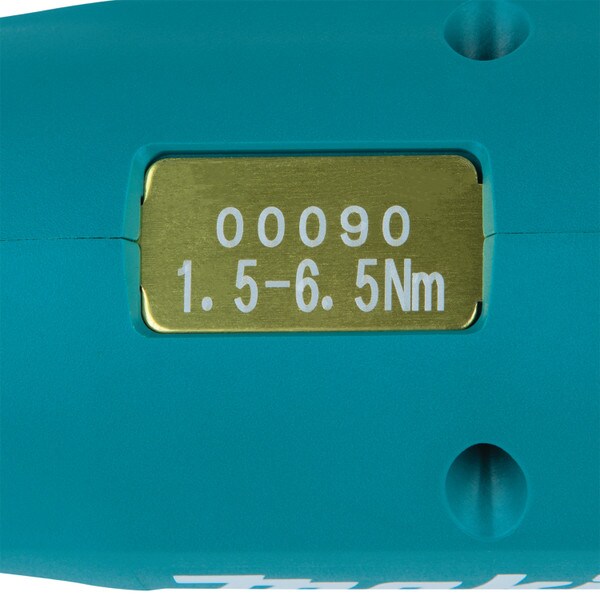

| Torque Range (Nm) | 1.5 - 6.5 |
| Torque Range (In lbs) | 13 - 58 |
| Speed (RPM) | 180 - 1300 |
| Motor Type | Brushless |
| Voltage | 18V |
| Battery | BL1820B, BL1830B, BL1840B, BL1850B, BL1860B |
| MPN | DFL063FZ |
| Features & Benefits | |
| Brushless Motor: Efficient, reliable, and long-lasting performance. | |
| Certified Accuracy: ±4% torque repeatability. | |
| Torque Range: 13 - 58 (1.5 - 6.5 Nm) with speeds up to180 - 1300. | |
| Right Angle Design: Accesses tight spaces with ergonomic handling. | |
| 7-Phase Rundown: Customizable RPM, direction, and angle control. | |
| Wireless Poka-Yoke: Confirms fastening results for error-proofing. | |
| Pass/Fail Indicator: Visual and audible feedback on torque success. | |
| Cross-Thread Detection: Enhances fastening quality and reliability. | |
