Overview

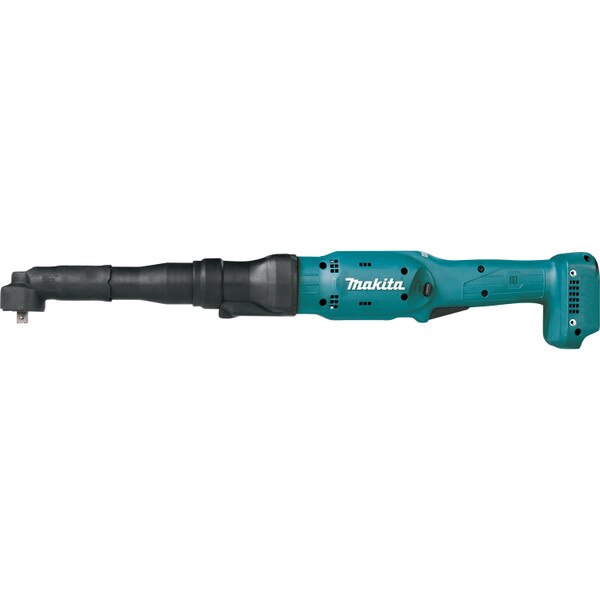

Makita's DFL651FZ LXT 18V Brushless Programmable Right Angle Nut-Runner, is designed for high-precision fastening in demanding assembly environments. With certified repeatability within 4% of mean torque, it meets the strict accuracy requirements of Automotive and Aerospace manufacturing.

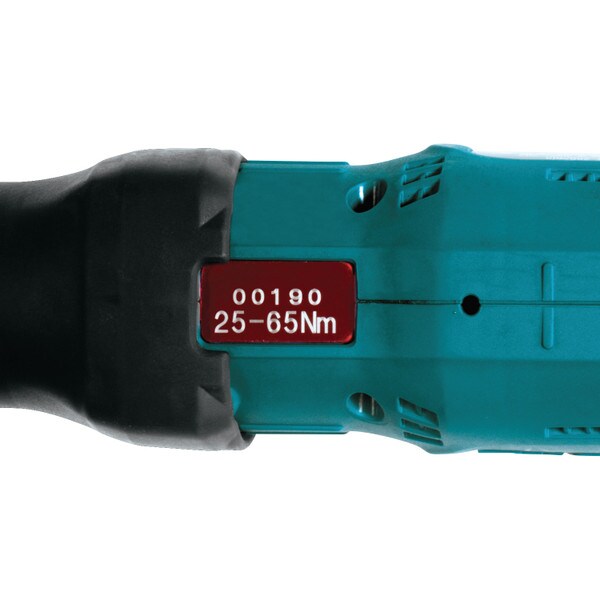

Powered by their proven LXT 18V lithium-ion platform, the DFL651FZ delivers programmable torque from 221 - 575 in lbs (25 - 65 Nm) with speeds from 80 - 200 rpm. The right-angle design provides access in tight spaces while maintaining operator comfort and fastening consistency.

The 7-Phase Rundown Programming allows operators to program RPM, directional, and angle strategies via USB for advanced multi-stage rundown control. This improves fastening quality and assists in detecting cross-thread conditions.

Wireless Poka-Yoke capability adds another layer of quality control by confirming fastening results to your process control system, reducing errors and enhancing traceability.

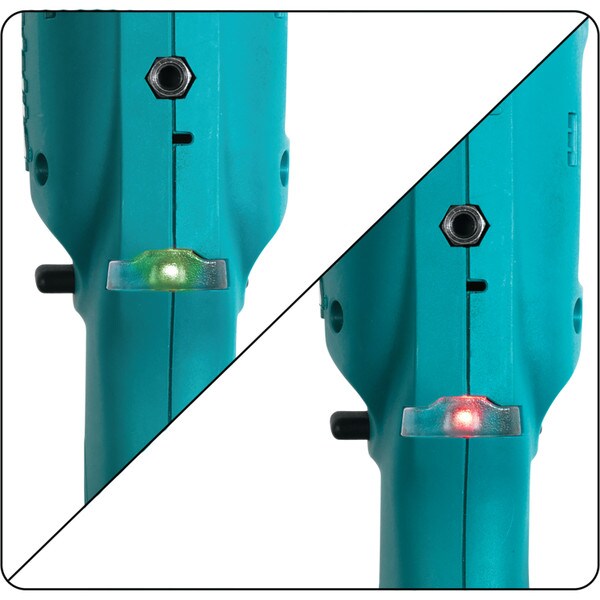

A Pass/Fail indicator lamp with audible signal gives operators immediate feedback on fastening results, clearly indicating sufficient or insufficient torque application for process reliability.

Combining brushless motor technology, intelligent programming, and ergonomic right-angle design, the DFL651FZ is a dependable solution for precision-driven industries.

Note: Tool Only, Battery sold separately.

Back

Features & Benefits

  • Brushless Motor: Efficient, reliable, and long-lasting performance.
  • Certified Accuracy: ±4% torque repeatability.
  • USB port for RPM and directional programming
  • Torque Range: 221 - 575 (25 - 65 Nm) with speeds up to80 - 200 .
  • Right Angle Design: Accesses tight spaces with ergonomic handling.
  • 7-Phase Rundown: Customizable RPM, direction, and angle control.
  • Wireless Poka-Yoke: Confirms fastening results for error-proofing.
  • Pass/Fail Indicator: Visual and audible feedback on torque success.
  • Cross-Thread Detection: Enhances fastening quality and reliability.
Back

Technical Specifications

Manufacturer
Makita
SKU
DFL651FZ
Model
DFL651FZ
Series
LXT
Type
Precision Nutrunner
Drive Size
3/8'' Square
Torque Range (Nm)
25 - 65
Torque Range (In lbs)
221 - 575
Speed (RPM)
80 - 200
Motor Type
Brushless
Voltage
18V
Battery
BL1820B, BL1830B, BL1840B, BL1850B, BL1860B
