MakitaXVR02Z

18V Cordless Rivet Tool, 1/4'', 20 kN, tool only

Install or pull aluminum, steel, and stainless steel rivets with the 18V LXT® Brushless Cordless Rivet Tool, Tool Only (XVR02Z)

$2,838.00
Total$2,838.00Taxes & shipping at checkout
Quantity
1

Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA

  • Free UPS Ground over $999.99
  • Factory-authorised service
Documents1 file

Details

Product information

Overview

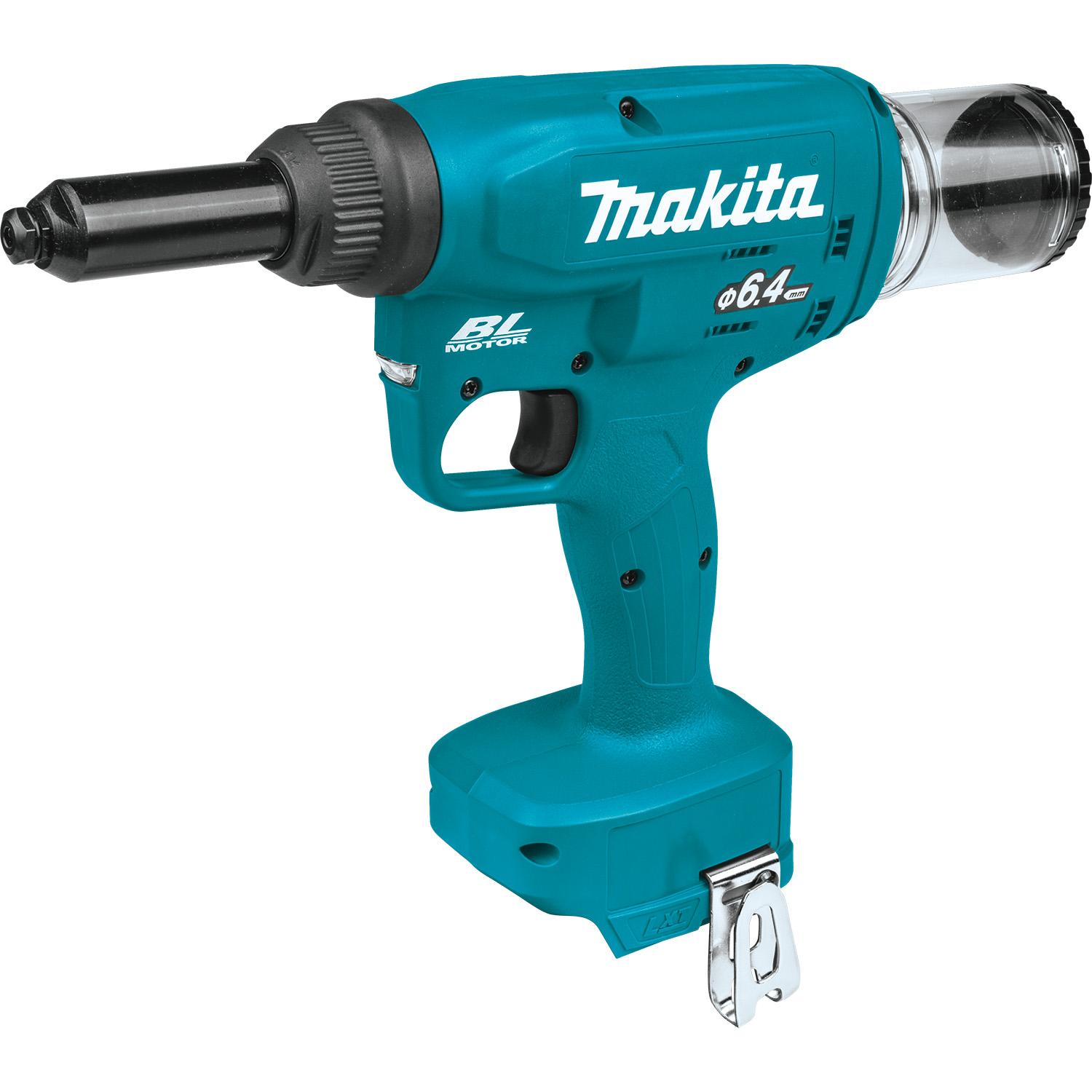

Makita 18V Cordless Rivet Tool

18V Cordless Rivet Tool that is capable of speeds up to rpm. The XVR02Z Cordless Rivet Tool by Makita is available to acquire from Flexible Assembly Systems. Do you see this same Rivet Tool available elsewhere at a lower cost? Contact Customer Service to price match!

Install or pull aluminum, steel, and stainless steel rivets with the 18V LXT® Brushless Cordless Rivet Tool, Tool Only (XVR02Z). The XVR02Z installs rivets up to 1/4” (6.4 mm). The BL™ Brushless Motor delivers 20kN of pulling force, while the 30 mm stroke sets most rivets in one stroke. The XCV02Z is compact at only 12-3/4” long and weighs only 5.3 lbs with 5.0Ah LXT Battery (sold separately). Other features include an ergonomically designed handle for increased comfort, built-in L.E.D. light, and a transparent mandrel catch container for convenient viewing of container level.

Part of Makita’s expanding 18V LXT System, the world’s largest cordless tool system powered by 18V lithium-ion slide-style batteries. Makita® 18V LXT Lithium-Ion Batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger.

Note: Tool Only, Lithium-Ion Battery sold separately.

Technical Specifications
ModelXVR02Z
TypeCordless Rivet Tool
ManufacturerMakita
Motor TypeBrushless
SKUXVR02Z
Battery ModelBL1830B, BL1840B, BL1850B, BL1860B
StylePistol Grip
UPC088381876346
Weight (lbs)5.3
SeriesXVR
Voltage18V
Pull Force (lbf)4.5
Capacity (in)1/4
MPNXVR02Z
Features & Benefits
Built-in LED Light

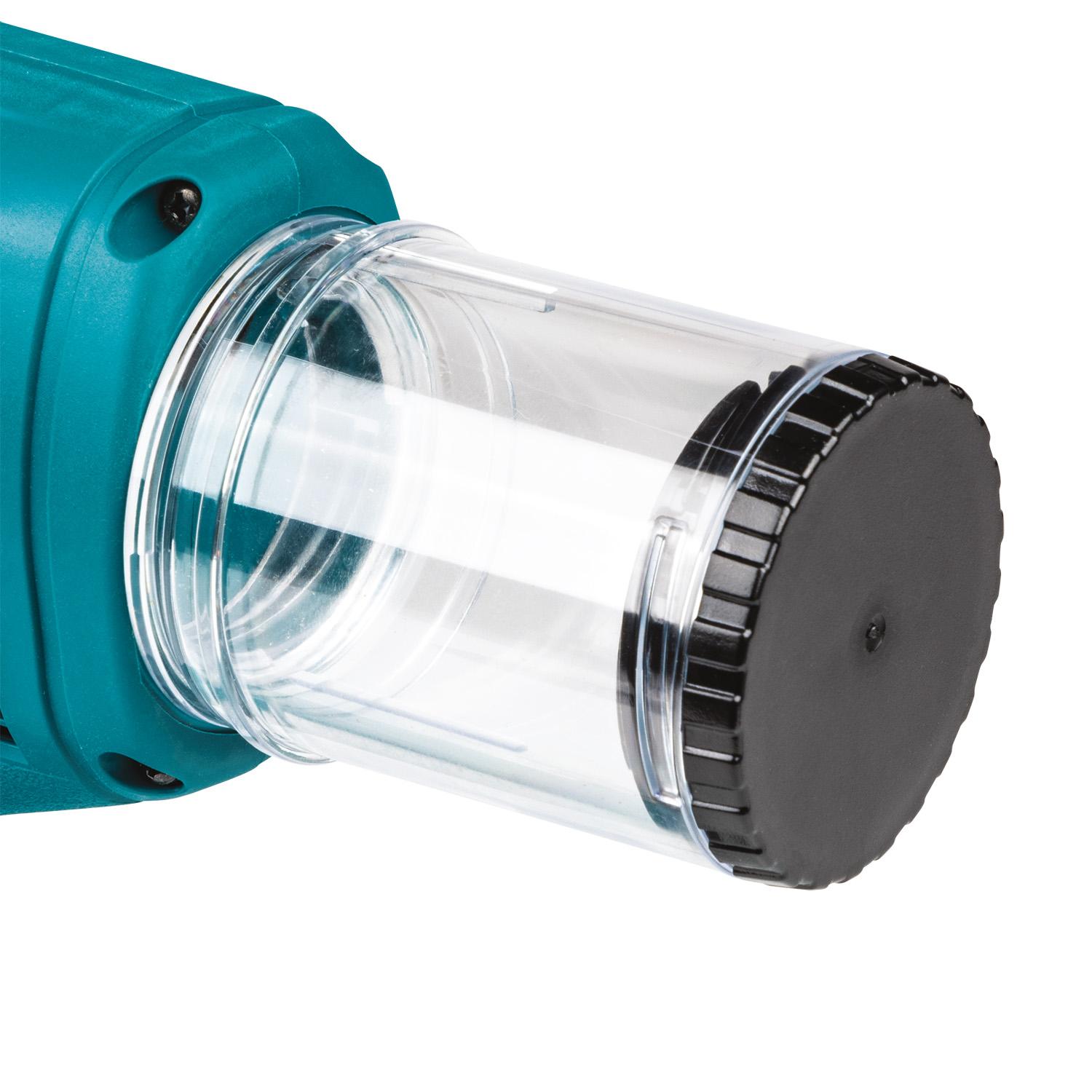

Transparent Mandrel Catch Container
Brushless Motor
