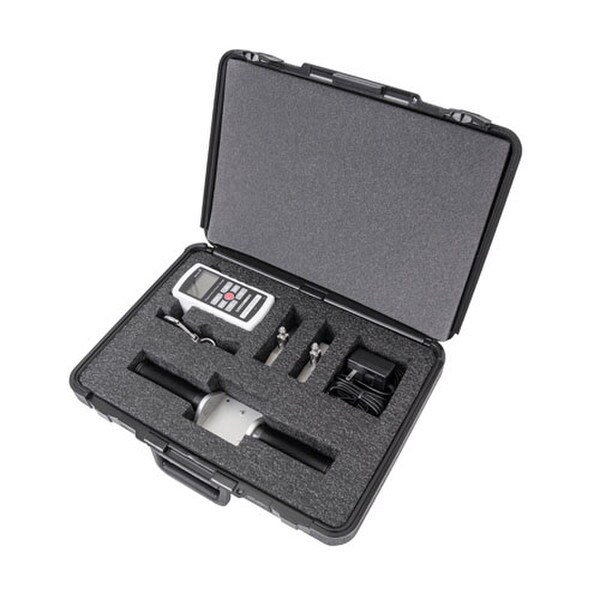

Mark-10 EKE-100-1 | Basic ergonomics testing kit w/Series E force gauge, 100 lbF / 500 N

SKU:
EKE-100-1
Condition:
New
On Sale
Now: $1,325.25
Was: $1,395.00
Technical Specifications

Description

Mark-10 EKE-100-1

Basic ergonomics testing kit w/Series E force gauge, 100 lbF / 500 N

Series E push / pull force gauges make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. Series E presents the ergonomist and other professionals with a simple and economical testing solution. 100 lbF, 200 lbF and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available, along with a wide range of attachments for various applications.

click-lock technology

Attachments click and lock into place via innovative Click-Lock™ technology, a rugged anti-rotation locking mechanism. The attachments may be clicked into 90° or 180° orientations. No fastening is required, as with conventional force gauges, thereby reducing the risk of damage to the instrument.

Features:
  • Measure real time and peak push and pull forces
  • Click-Lock™ accessory mounting technology
  • USB data output
  • High / low limit indicators, for pass / fail and minimum force testing
  • Averaging mode calculates average force over a period of time
  • 5,000-point data memory - data points may be saved individually or logged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESURTM Lite data collection software.
  • Statistical calculations for saved data points
