Force Sensor, Tension / Compression, 10 Lbf / 50 N

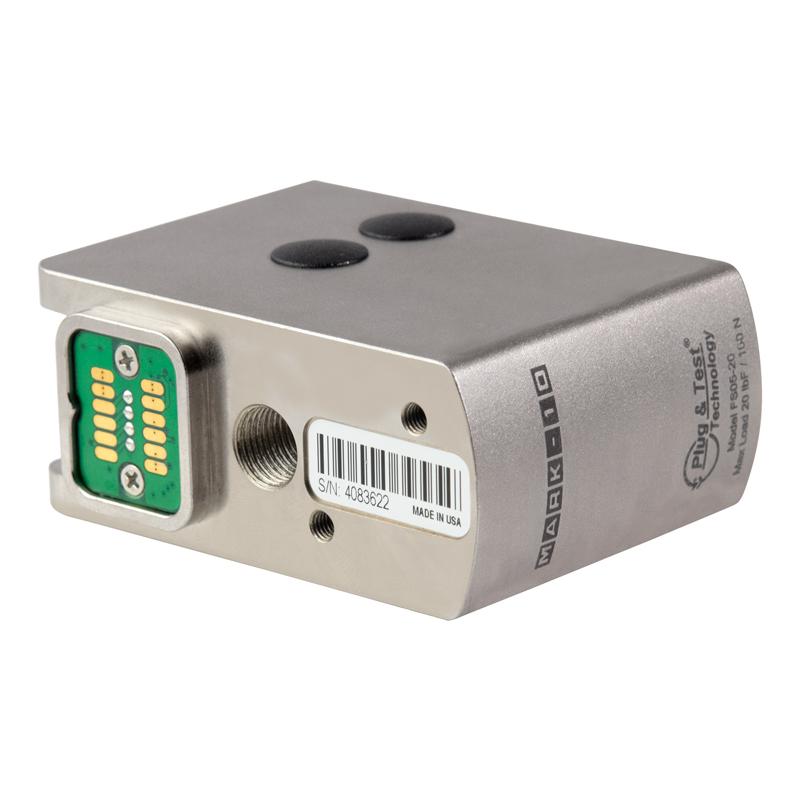

Series FS05 force sensors measure tension and compression forces. They mount directly to the crosshead of models F105, F305, F505, and F505H test frames, for a clean, integrated look.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview
Mark-10 Force Sensor, Tension / Compression, 10 Lbf / 50 N
Series FS05 force sensors measure tension and compression forces. They mount directly to the crosshead of models F105, F305, F505, and F505H test frames, for a clean, integrated look.

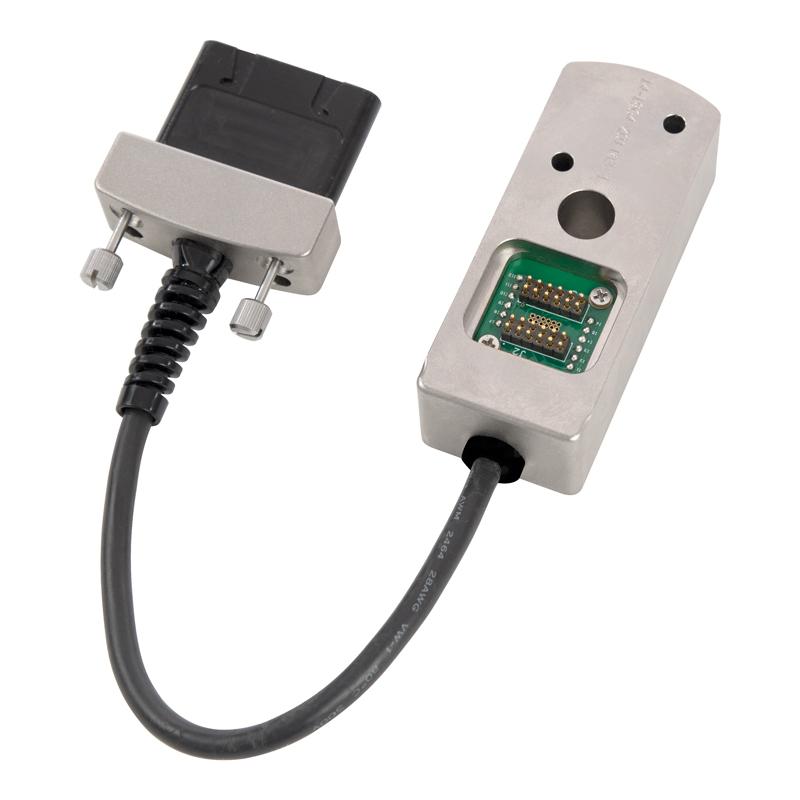

With Plug & Test® technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator (optional adapter: AC1083 required ).
Note: An AC1083 adapter is required to use FS05 force sensors with the following test frames: F755, F755S, F1505, and F1505S.
| Technical Specifications | |
|---|---|
| Model | FS05-10 |
| Overload Protection | 150% of full scale |
| Type | Tension and Compression Force Sensor |
| Manufacturer | Mark-10 |
| SKU | FS05-10 |
| Series | FS05 |
| Accuracy | ± 0.1% |
| MPN | FS05-10 |
| Features & Benefits | |

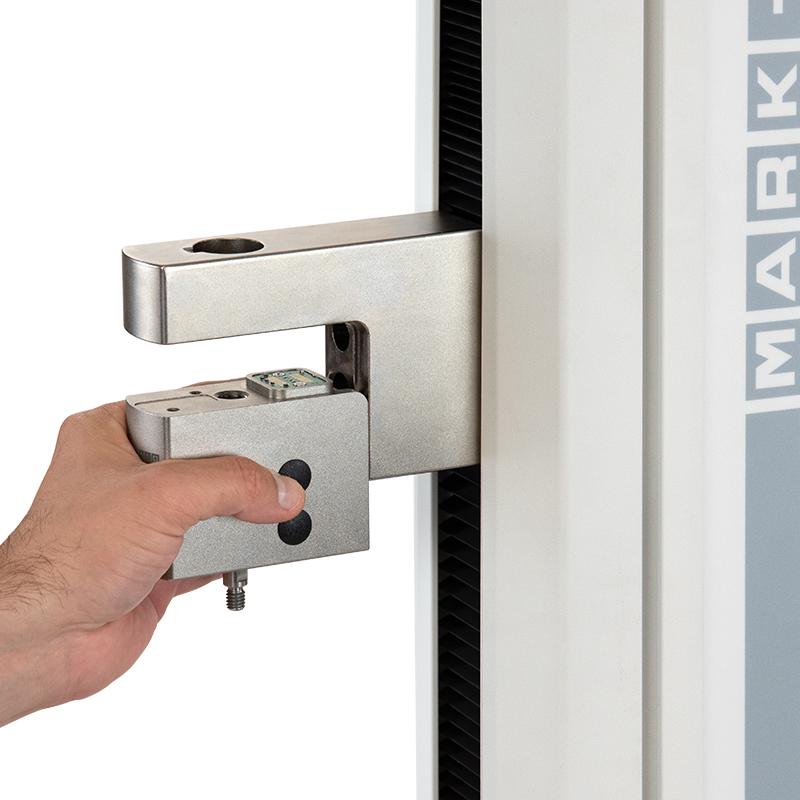

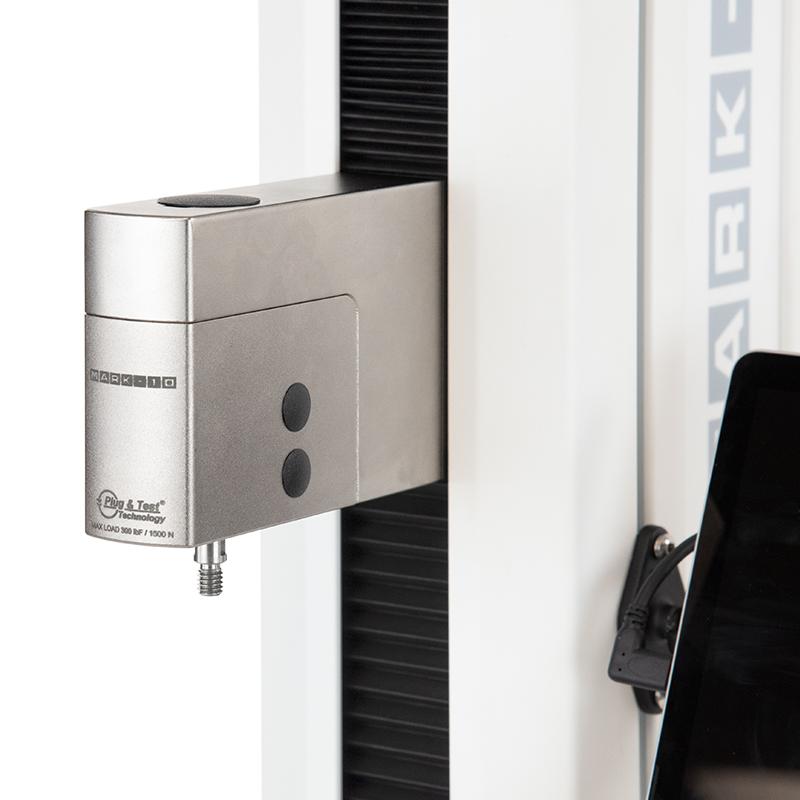

| Mount directly to crosshead of models F105, F305, F505, and F505H without any connection cables | |
| Member of the Plug & Test® family of interchangeable sensors and indicators (adapter required) | |
| NIST-traceable certificate of calibration with data is included | |
| 3 Year Warranty | |
| Mount directly to crosshead of models F105 | |
| F305 | |
| F505 | |
| and F505H without any connection cables | |
