Tension and Compression Force Sensor, 50 lbF / 800 ozF / 25 kgF / 25000 gF / 250 N
MR04-50 | Tension and Compression Force Sensor, 50 lbF / 800 ozF / 25 kgF / 25000 gF / 250 N
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Recommended Accessories
3 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Model | Dimensions | Price | Qty | |
|---|---|---|---|---|---|
 M3IM3I | Force-Torque Indicator, 110V$674.50 | M3I | 3.9 x 2.53 in | $674.50 | 1 | View details |
 M5IM5I | Advanced Force-Torque Indicator, 110V$973.75 | M5I | 5.88 x 2.53 in | $973.75 | 1 | View details |
 M7IM7I | Professional Force-Torque Indicator, 110V$1,653.00 | M7I | 5.88 x 2.53 in | $1,653.00 | 1 | View details |
Details
Product information
Overview
Mark-10 Tension and Compression Force Sensor, 50 lbF / 800 ozF / 25 kgF / 25000 gF / 250 N
Tension and Compression Force Sensor, 50 lbF / 800 ozF / 25 kgF / 25000 gF / 250 N, item# MR04-50, available to order online from Flexible Assembly Systems. Do you see this Mark-10 Tension and Compression Force Sensor available elsewhere for a lower price? Contact Customer Service to price match!
MR04-50 Tension and Compression Force Sensor by Mark-10

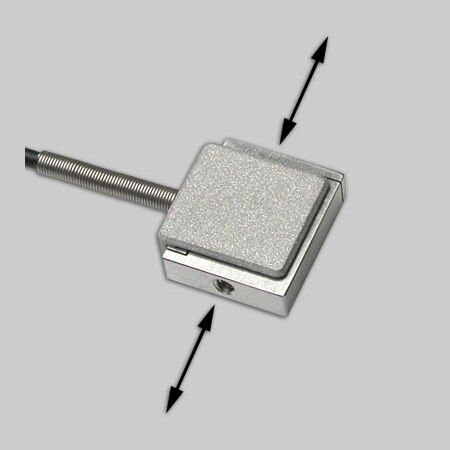

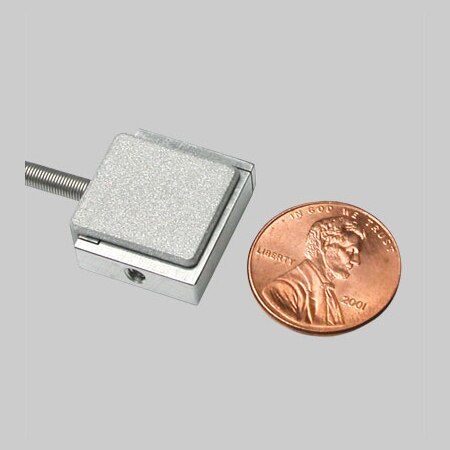

Extremely compact force measurement sensor for tensile and compressive loads in applications with limited space. The Series R04 is available in capacities from 0.25 to 100 lbF (1 to 500 N). Every capacity has the same miniature dimensions. The sensors feature outstanding mechanical overload protection and threaded holes on two sides for the mounting of attachments or implements.
| Technical Specifications | |
|---|---|
| Model | MR04-50 |
| Overload Protection | 200% of full scale |
| Type | Tension and Compression Force Sensor |
| Manufacturer | Mark-10 |
| Capacity | 50 lbF / 800 ozF / 25 kgF / 25000 gF / 250 N |
| SKU | MR04-50 |
| Stock Code | 2 |
| Series | R04 |
| Accuracy | ±0.2% of full scale + indicator |
| MPN | MR04-50 |
