Manual Wire Crimp Pull Tester, 200 lbF / 1000 N
Ensure crimp integrity and compliance with the Mark-10 WT-205, a portable wire crimp pull tester capable of applying up to 200 lbF (1,000 N) via a smooth ergonomic lever. Built for production and lab environments, it offers reliable real-time and peak force measurement with automated data capture and advanced output options.
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview

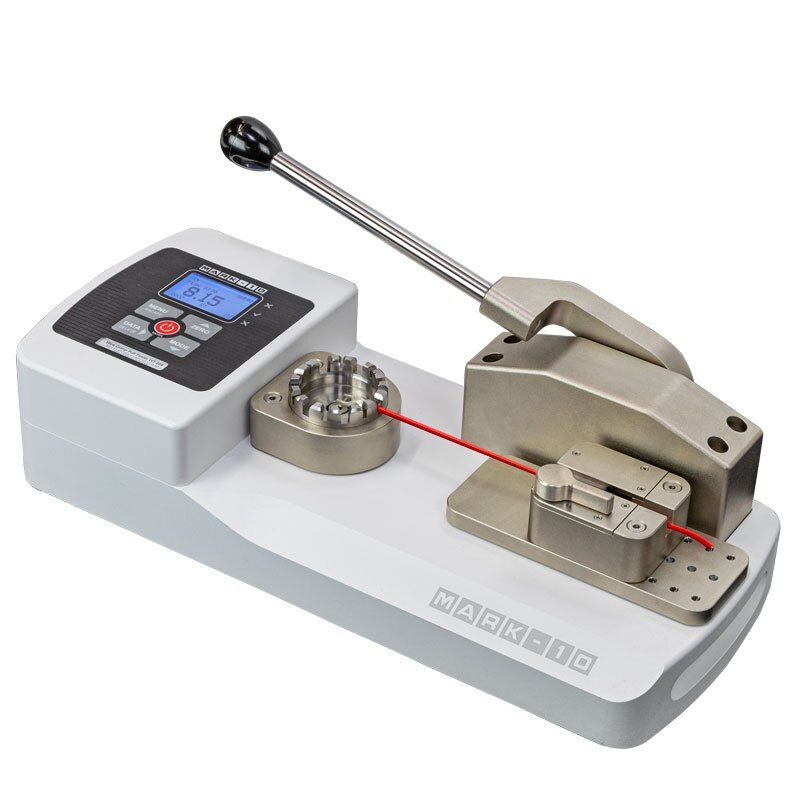

The Mark-10 WT-205 Wire Crimp Pull Tester delivers precision, efficiency, and repeatability in wire crimp testing. Designed to meet quality standards across production lines and laboratories, this manually operated tester accommodates wire sizes up to AWG 3 (0.25 in / 6.3 mm) with its multi-slot terminal fixture. Its self-tightening wedge grip ensures the free end of the wire is securely clamped for consistent results.

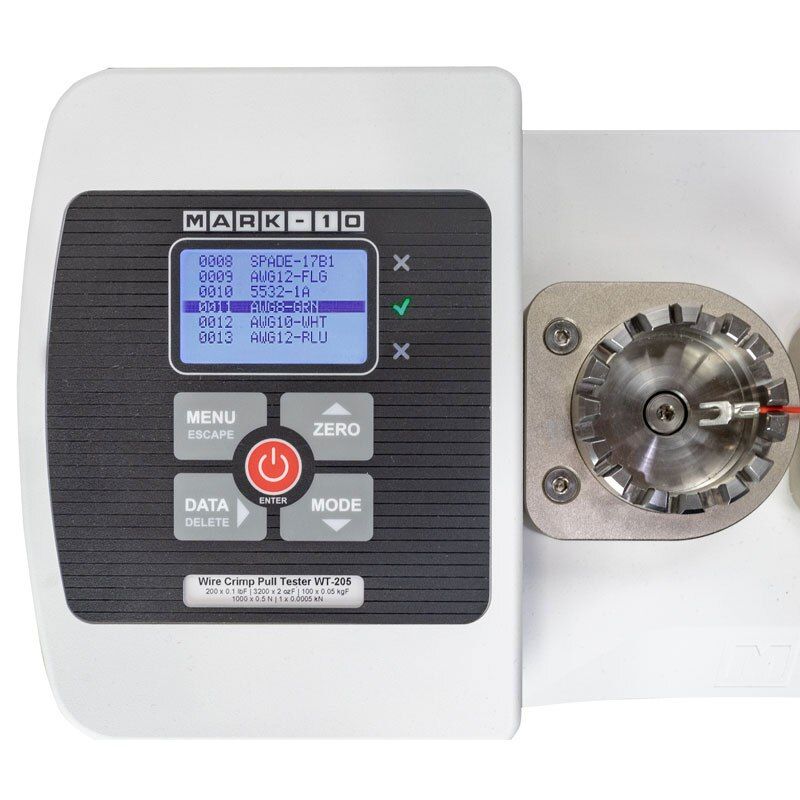

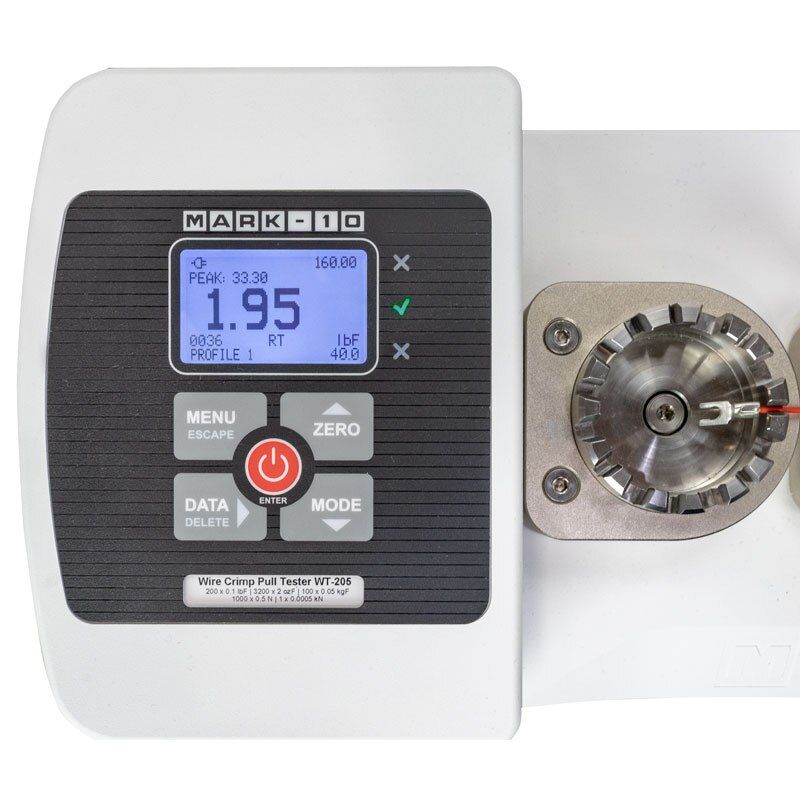

At the core of the WT-205 is a high-resolution, backlit LCD that displays real-time and peak force readings, measurement units, and programmable pass/fail indicators—both visual and audible. The 7,000 Hz sampling rate ensures accurate peak capture, while built-in memory stores up to 1,000 test results with statistical analysis capabilities.
Users can streamline their workflow with automatic data capture, peak detection, and auto-zeroing upon sample break. Data can be exported via USB, RS-232, Mitutoyo (Digimatic), or analog outputs to PCs, data loggers, or quality control systems. With password-protected settings and flexible mounting options, the WT-205 is ready for integration into demanding test environments.
| Technical Specifications | |
|---|---|
| Manufacturer | Mark-10 |
| Model | WT-205 |
| Type | Wire Crimp Pull Tester |
| Subtype | Manual |
| Capacity x Resolution | 200 x 0.1 lbF, 3200 x 2 ozF, 100 x 0.05 kgF, 1000 x 0.5 N, 1 x 0.0005 kN |
| Accuracy | ±0.2% of full scale |
| Wire Gauge Range | AWG30 - AWG3 (including insulation) |
| Wire diameter range | 0.01 - 0.25 in (0.3 - 6.3 mm) |
| Minimum sample length | 2.1 in (53.3 mm), excluding termination |
| Maximum sample elongation | 1.7 in (43.2 mm) |
| Sampling Rate | 7000 Hz |
| Power Supply | AC adapter: 100-240VAC, 50-60 Hz, 0.3A or Battery: Rechargeable 8.4V NiMH |
| Outputs | USB / RS-232, Mitutoyo (Digimatic), Analog, Set Points |
| Overload Protection | 1.5 |
| Weight (lbs) | 16.1 |
| MPN | WT-205 |
| Features & Benefits | |
| Accurate Force Measurement: Measures real-time and peak pull forces up to 200 lbF (1,000 N) for wire crimp verification. | |

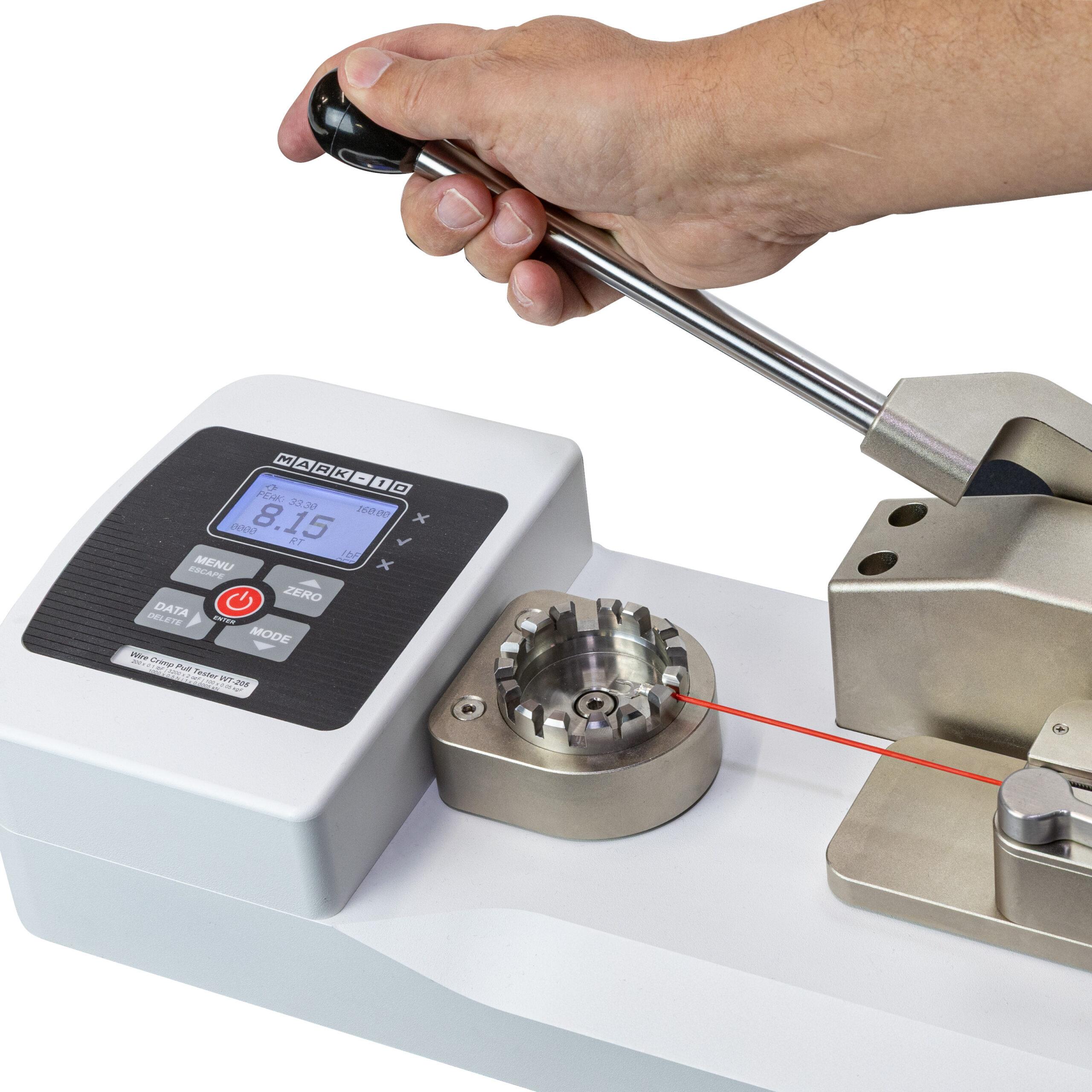

| Ergonomic Lever Operation: Manual lever design offers controlled application of force with minimal operator fatigue. | |
| Multi-Slot Terminal Fixture: Accommodates wire sizes up to AWG 3 (0.25 in / 6.3 mm) for versatile testing needs. | |

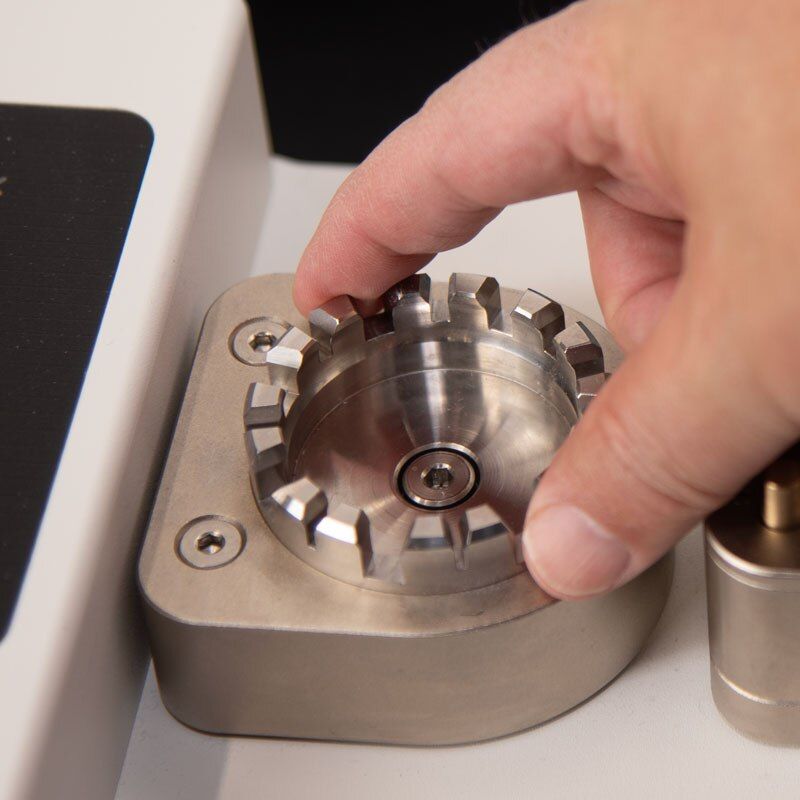

| Secure Clamping: Self-tightening wedge grip provides repeatable and slip-free holding of wire ends. | |
| Data Handling Efficiency: Automatically captures, stores, and zeros data upon sample break for streamlined workflow. | |

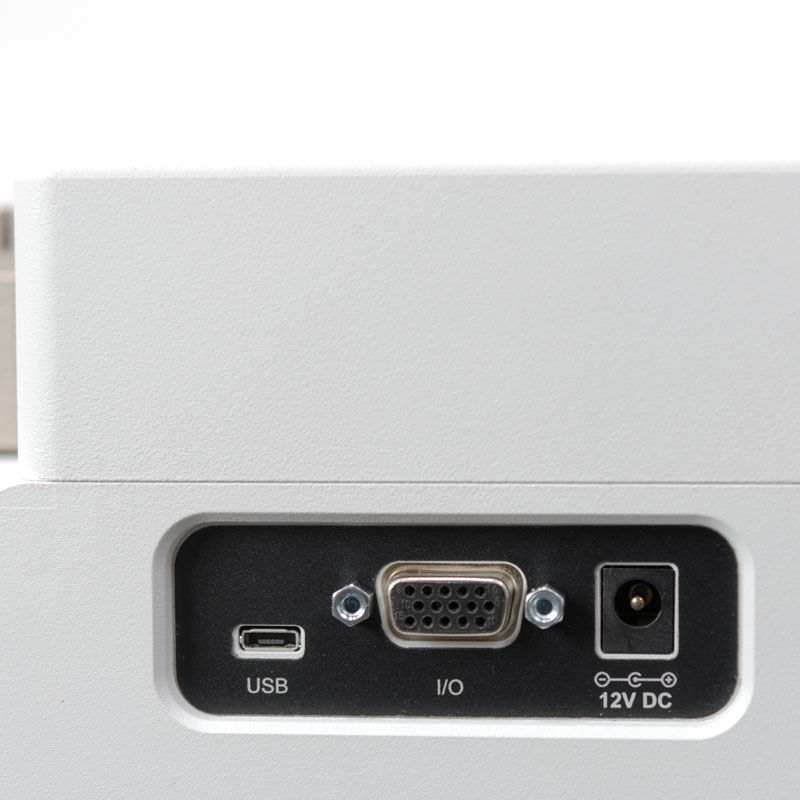

| Output Versatility: Includes USB, RS-232, Mitutoyo (Digimatic), and analog outputs for easy data integration. | |
| Memory and Stats: Stores up to 1,000 readings with statistical calculations to track quality trends. | |
| Fast Sampling Rate: 7,000 Hz sampling ensures accurate peak capture, even for fast breaks. | |
| Visual and Audible Pass/Fail Feedback: Configurable green/red indicators and audible alerts for quick compliance checks. | |
| Secure Configuration: Password protection prevents unauthorized changes to test settings. | |
| Mount-Ready Design: Built-in mounting holes allow for secure bench installation. | |
