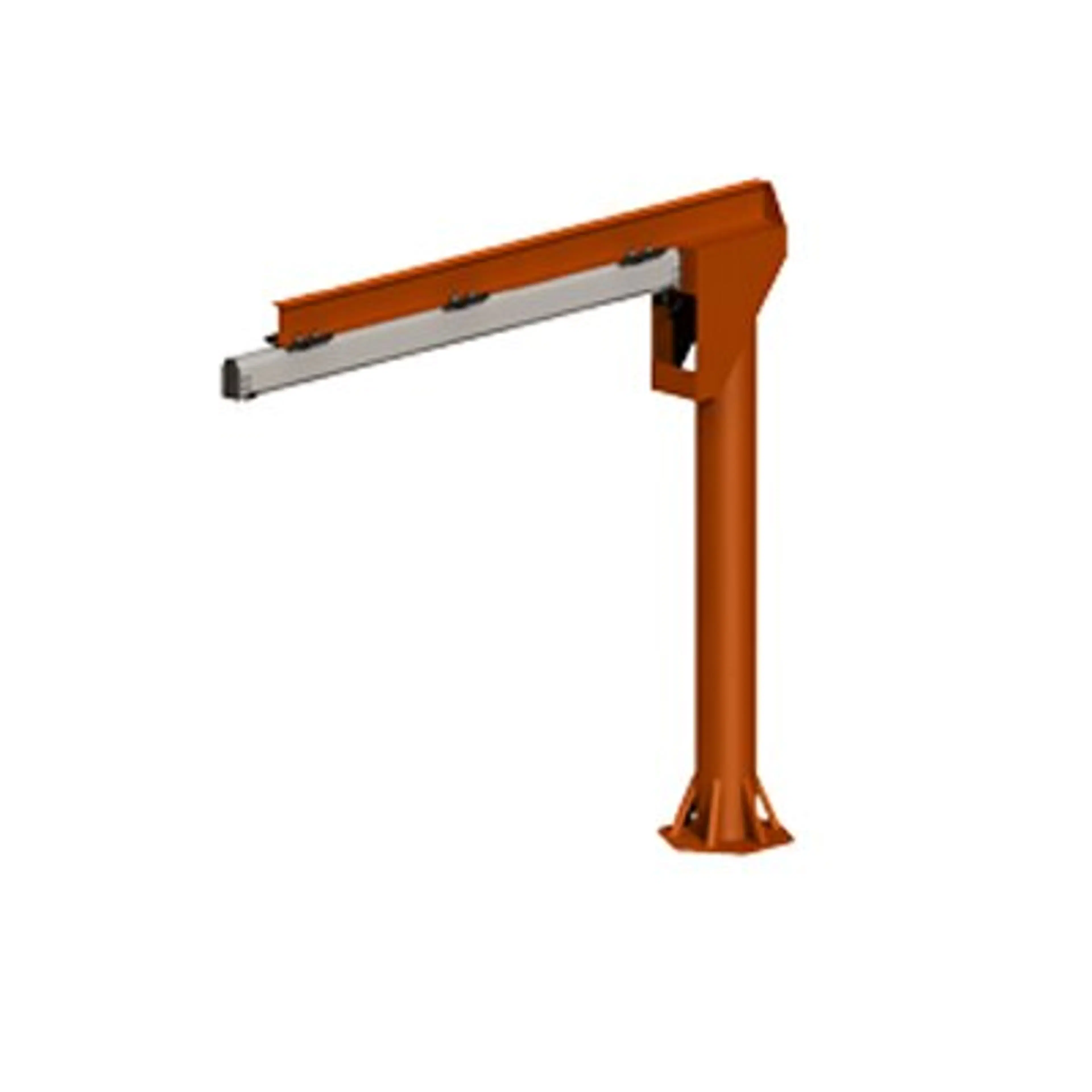

Heavy Duty Low Profile Jib Crane

Knight Industries MJBA3000

Heavy Duty Low Profile Jib Crane

Features

• Jib crane is an alternative solution when ceiling heights are inconvenient for an overhead workstation crane system.
• Ergonomically designed for low headroom clearance applications.
• Jib crane has optional rail mounting kit for low friction Knight RAD7510 Aluminum Rail.
• Jib lengths available up to 14 ft. [4.2 m]. Contact a representative for lengths over 14 ft. [4.2 m].
• Hose management system JSA9135 is not included with jib crane.
• Optional RAD7510 8" Series Rail only
• MJBA3000 Capacity: Up to 2,000 lbs [908 kg] (based on H=8 ft. [2.4 m] and L=5 ft. [1.5 m] and deflection ratio of 1 in. / 450 in.)
• Reaches and loads are verified by a Knight Engineering Algorithm.
• Contact a Knight Representative for specific reach, height, and capacity calculations per application.
• 3 to 1 safety factor
