Ergonomics Testing
These kits make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, physical therapy, and ergonomic studies. These kits present the ergonomist and other professionals with a simple and economical testing solution.
Details
Product information
Overview
-

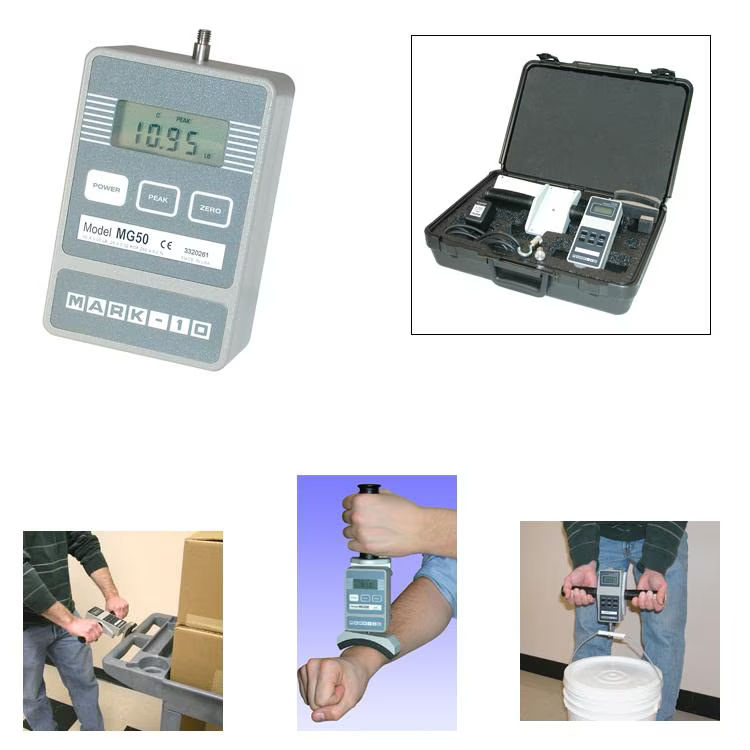

Digital force gauge
- Compact design, easy to hold
- Measure in lb, kg, or N
- Peak force capture for push and pull forces
- Durable construction ensures longevity
- Battery or AC operation
-
Double & Single Handles
Non-slip rubber handles for good grip and consistent test results. -
Padded Attachments
Flat, curved, and square padded attachments mount directly to the force gauge for conducting musculoskeletal strength analysis. -
Implements
Rugged hook and flat adapter attach directly to the force gauge for conducting job task analysis and ergonomic analysis in push, pull, and lift forces.
- Compatible with all Mark-10 test Stand grips
- Small size
- Reversible aluminum housing for hand use or stand mounting
- Peak memory for tensile and compressive loads
- Programmable automatic shutoff
- Programmable default configuration
- Push-button calibration
- IPM - Intelligent Power Management system
- Selectable units of measurement
- Battery or AC operation
- Same housing size for all capacities
- Accuracy: ± 0.5% of full scale ±1 digit
- Safe overload: 150% of capacity
- Battery life: 30 hours of continuous operation
- Weight: 0.7 lbs (0.3 kg)
- Environmental requirements: 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
- Warranty: 3 years
- CE mark
**MKB Series includes a Series BG digital force gauge, output cable, hand grips, padded attachments, NIST Certificate, carrying case and accessories
| Features & Benefits | |
|---|---|
| Maximum Capacity: 500 Lbs | |
| Accuracy: +/- 0.2% | |
| From $1278 |
