CMML063

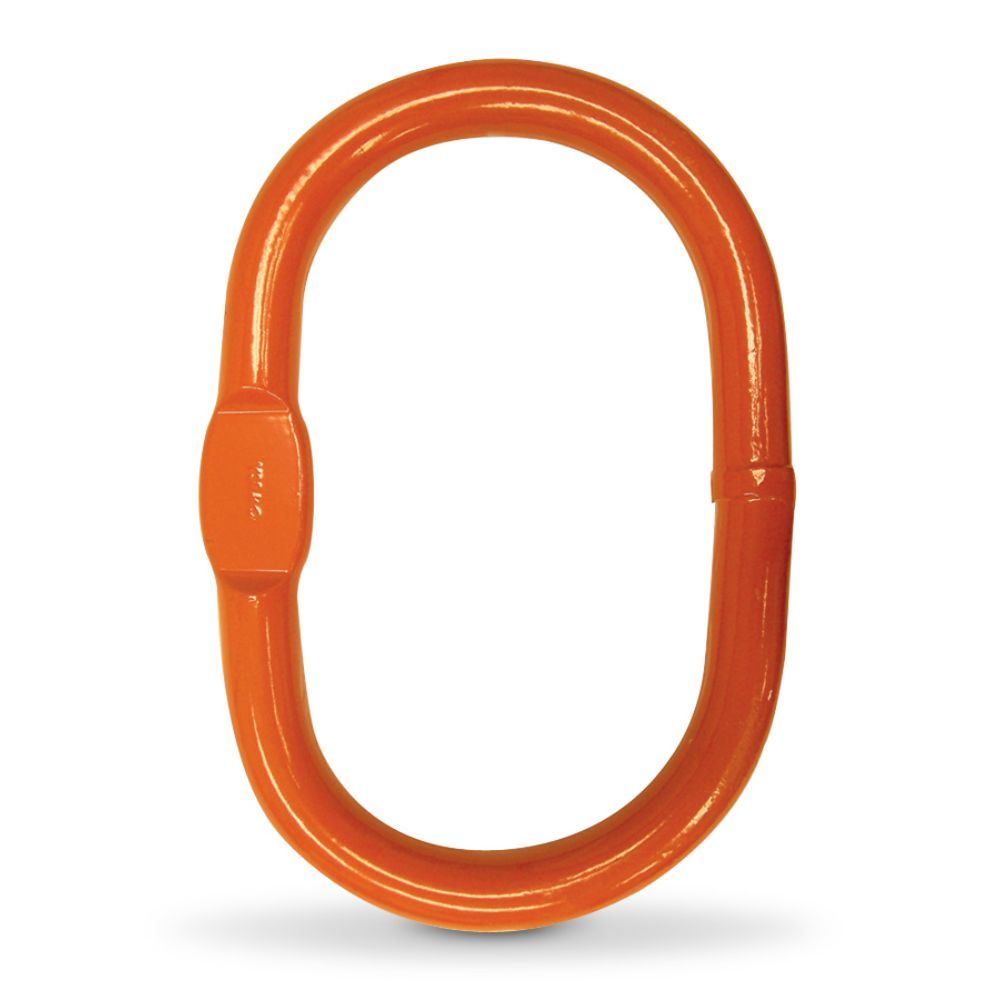

LINK MST OBLONG G80 .625 x 2.977'' x 5.29''''
Designed to accept HA800 chain, wire rope and synthetic attachments Use with mechanical and welded assemblies Sizes up to 1-1/4" available with flats to accommodate Omega link 100% proof tested Extra wide body makes these links ideal for wire rope applications and use with Omegaloks. Master link with flat allows for easy installation of these attachments. Design factor 6:1 Chart Note: *Master link with flats are available through 1-1/4" only Part numbers with"NF" are for master links WITHOUT flats
$42.31List $52.89
Save $10.58Total$42.31Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
ML063 | LINK MST OBLONG G80 .625 x 2.977'' x 5.29''''ML063
Total$42.31
1
Details
Product information
Overview
Master Link with Flats (Grade 80) | LINK MST OBLONG G80 .625 x 2.977" x 5.29""
WLL: 4,200 to 327,800 lbs. Sizes: 7/16 to 2-3/4 in.
| Technical Specifications | |
|---|---|
| Size | 5/8'' |
| Model | ML063 |
| Manufacturer | CM |
| Finish | Orange Powder Coated |
| Length (In) | 0.63 |
| SKU | ML063 |
| Grade | 80 |
| Weight (lbs) | 1.34 |
| Capacity (lbs) | 9000 |
| MPN | ML063 |
