Ingersoll RandML1000K-2C10-C6

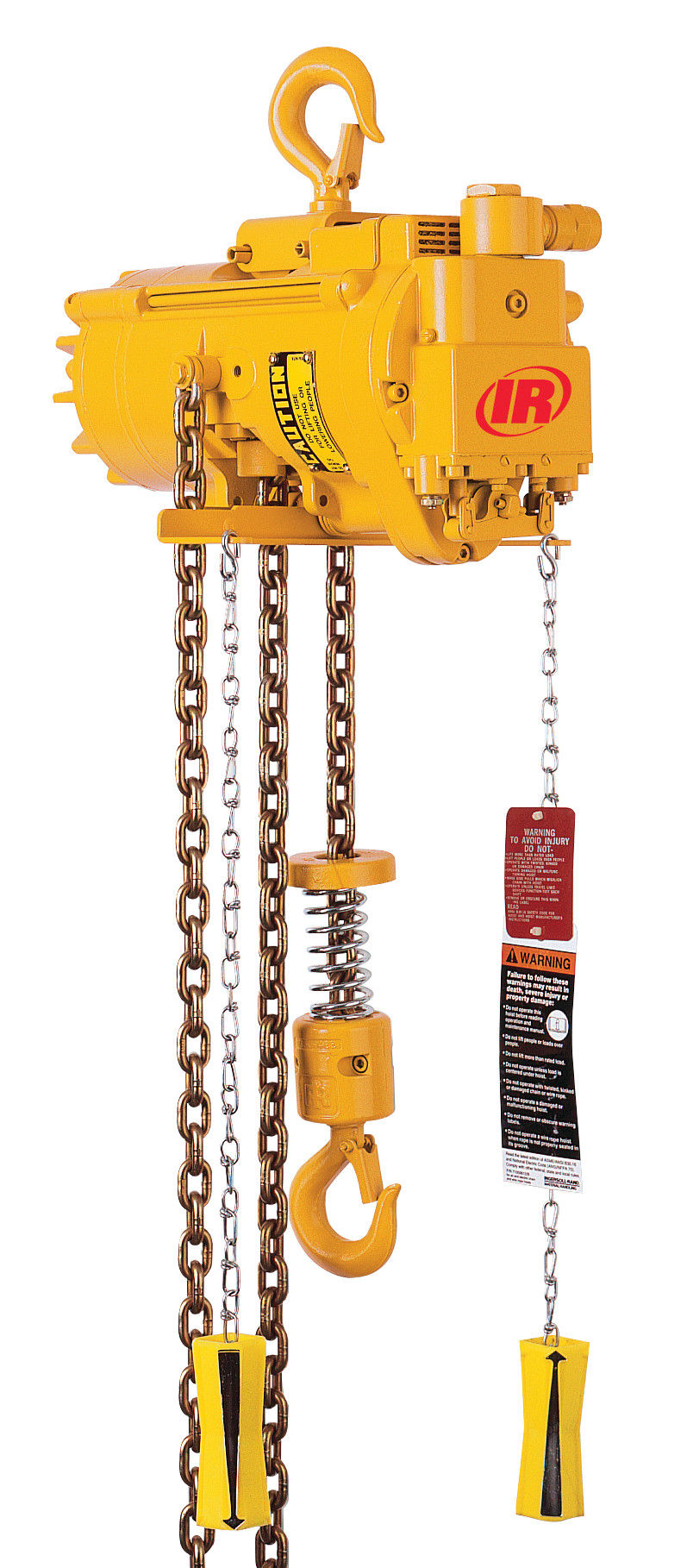

Air Chain Hoist, 2200 lbs, Pendant ctrl, Swivel top took, 10 ft, lower steel snap hook
The Ingersoll Rand MLK family of hoists is suitable for A5 / H5 severe-duty use in the 0.25 to 1 metric ton range. The MLK Series is designed to be used as a highspeed production hoist.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
ML1000K-2C10-C6 | Air Chain Hoist, 2200 lbs, Pendant ctrl, Swivel top took, 10 ft, lower steel snap hookML1000K-2C10-C6
Price on request
Details
Product information
Overview
Ingersoll Rand ML1000K-2C10-C6
2200 Lb Mlk Series Air And Electric Hoist
With a lifting capacity of between 550 - 2,200 lbs.
The Ingersoll Rand MLK family of hoists is suitable for A5 / H5 severe-duty use in the 550 to 2,200 lb range.
Features:
- Meets ASME B30.16 Specifications
- 100% duty cycle. Both the MLK and HLK Series are rated as HMI duty classification A5, severe duty. This equates to FEM 9.511 duty classification 2m.
- All rotating parts are supported by either ball or roller type bearings. Unique planetary gearing system assures long life.
Is the MLK Series by Ingersoll Rand for you?
- Spark Resistent Models (KR): Spark resistant models and a wide range of options and accessories are available.
- easy conversion from pull chain to pendent control.
| Technical Specifications | |
|---|---|
| Capacity | 2200 |
| Lift Height | 10 |
| Headroom | 18 |
| Chain Fall | 2 |
| Brake Type | Disc |
| Reeving | Double |
| Power Source | Air Powered |
| Sound Pressure | 85 |
| Air Inlet Size | 1/2" NPT |
| Air Pressure (PSI) | 90 |
| Air Consumption @ Load | 70 |
| Control Type | Pendant |
| Weight (lbs) | 61 |
| Weight (kg) | 27.67 |
| Housing Material | Aluminum |
| Color | Yellow |
| MPN | ML1000K-2C10-C6 |
| Features & Benefits | |
| 100% duty cycle enables continuous operation | |
| Air-operated, non-asbestos, self-adjusting disc brake | |
| Heat-treated planetary gearing system | |
| High-strength aluminum housing | |
| Air-operated | |
| non-asbestos | |
| self-adjusting disc brake | |
