Ingersoll RandMMP150-D0A2A

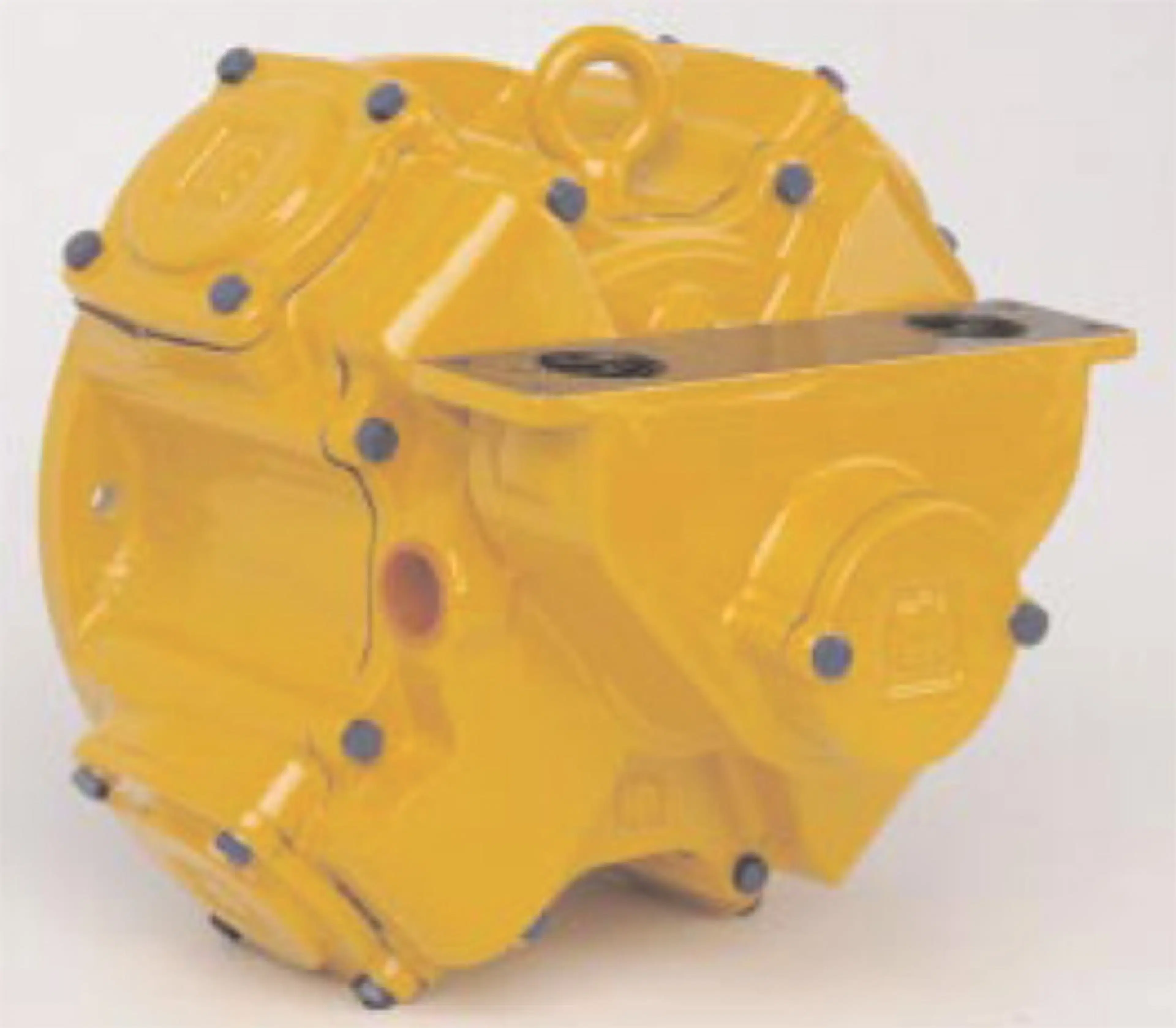

16 Hp, 3800 Rpm, Geared Piston Motor
With a direct drive radial piston air motor design, the MMP150 Series is great for winch and hoist type applications.
$23,012.51List $27,300.00
Save $4,287.49Total$23,012.51Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
MMP150-D0A2A | 16 Hp, 3800 Rpm, Geared Piston MotorMMP150-D0A2A
Total$23,012.51
1
Details
Product information
Overview
Ingersoll Rand MMP150-D0A2A
16 Hp, 3800 Rpm, Geared Piston Motor
MMP150 Series, Direct drive, Radial piston Air Motor. 16.00 hp (11.9 Kw). 1800 rpm motor with adjustability through air controls. Piston motors are ideal for constantly varying loads such as winch and hoist applications. MMP150 series may be ran lubrication free or with Natural Gas on specially modified models. Remote control options available.
Features:- Lubrication Free models available
- Natural Gas operation models available
- NEMA, SAE and Foot mount models available
- Fenner RM410 interface available
- Manual and Remote control options available
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
| Technical Specifications | |
|---|---|
| Model | MMP150-D0A2A |
| Manufacturer | Ingersoll Rand |
| Motor Type | Direct Drive |
| Free Speed (RPM) | 3800 |
| SKU | MMP150-D0A2A |
| Stock Code | 3 |
| Max Free Speed (rpm) | 3800 |
| Weight (lbs) | 2.2 |
| Starting Torque (ft lb) | 61 |
| Air Cons. @ Max Power (scfm) | 12 |
| Speed at Max Power (rpm) | 1800 |
| Stall Torque (ft lb) | 78 |
| Series | MMP150 |
| Rated Power (hp) | 16 |
| Stall Torque (Nm) | 105.75 |
| MPN | MMP150-D0A2A |
| Features & Benefits | |
| stands up to demanding applications. | |
| motors can function at variable speeds and torques | |
