Chicago PneumaticMR16-800-KL ATEX
M Motor, Reversible, 0.10 - 0.16 kW, 800 RPM, Keyed Spindle, Oil-Free, ATEX
Standard vane air motor
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
MR16-800-KL ATEX | M Motor, Reversible, 0.10 - 0.16 kW, 800 RPM, Keyed Spindle, Oil-Free, ATEXMR16-800-KL ATEX
Price on request
Details
Product information
Overview

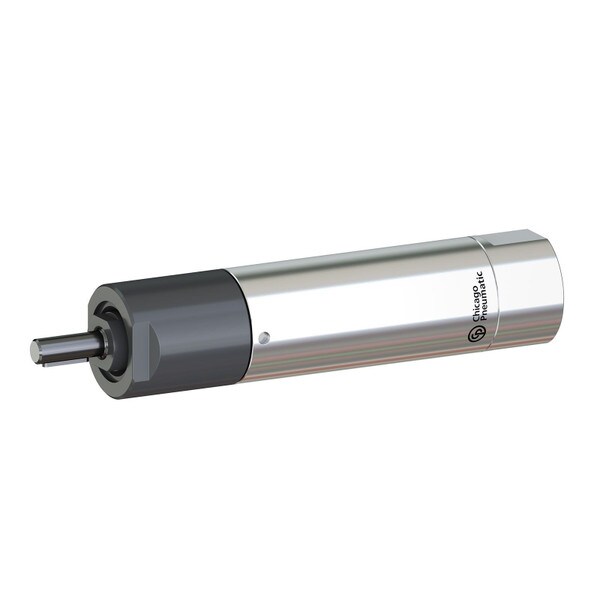

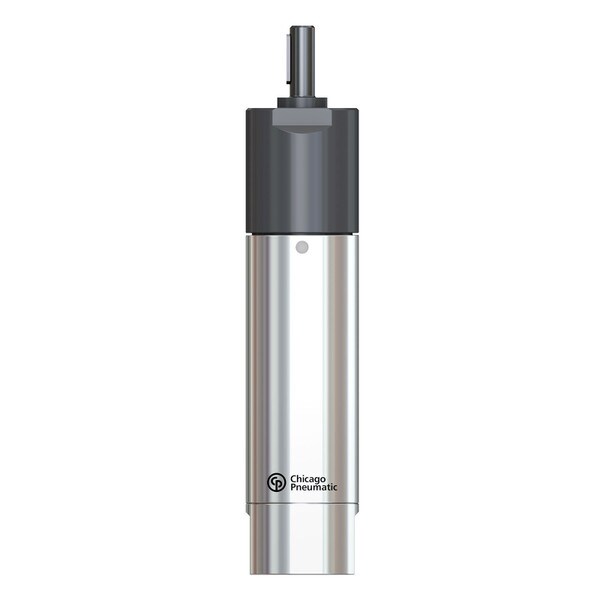

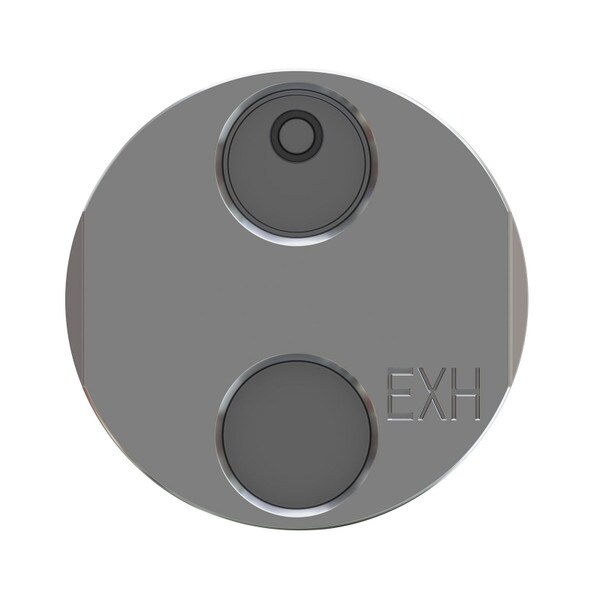

Chicago Pneumatic MR16-800-KL ATEX | M Motor, Reversible, 0 .10 – 0 .16 kW, 800 rpm, Keyed Spindle, Oil-Free, ATEX Certified Air Motor
| Technical Specifications | |
|---|---|
| Model | MR16-800-KL ATEX |
| Manufacturer | Chicago Pneumatic |
| Free Speed (RPM) | 800 |
| SKU | 2051479004 |
| Stock Code | 3 |
| Max Torque (Ft Lb) | 1.92 |
| Max Torque (Nm) | 2.6 |
| Rated Power (kw) | 0.11 |
| Weight (lbs) | 0.88 |
| Starting Torque (ft lb) | 3.1 |
| Stall Torque (ft lb) | 3.8 |
| Series | M16-KL |
| Air Cons. @ Load (cfm) | 7.6 |
| Rated Power (hp) | 0.15 |
| Stall Torque (Nm) | 5.2 |
| Weight (kg) | 0.4 |
| Air Consp. @ Free Speed (L/s) | 3.6 |
| MPN | MR16-800-KL ATEX |
