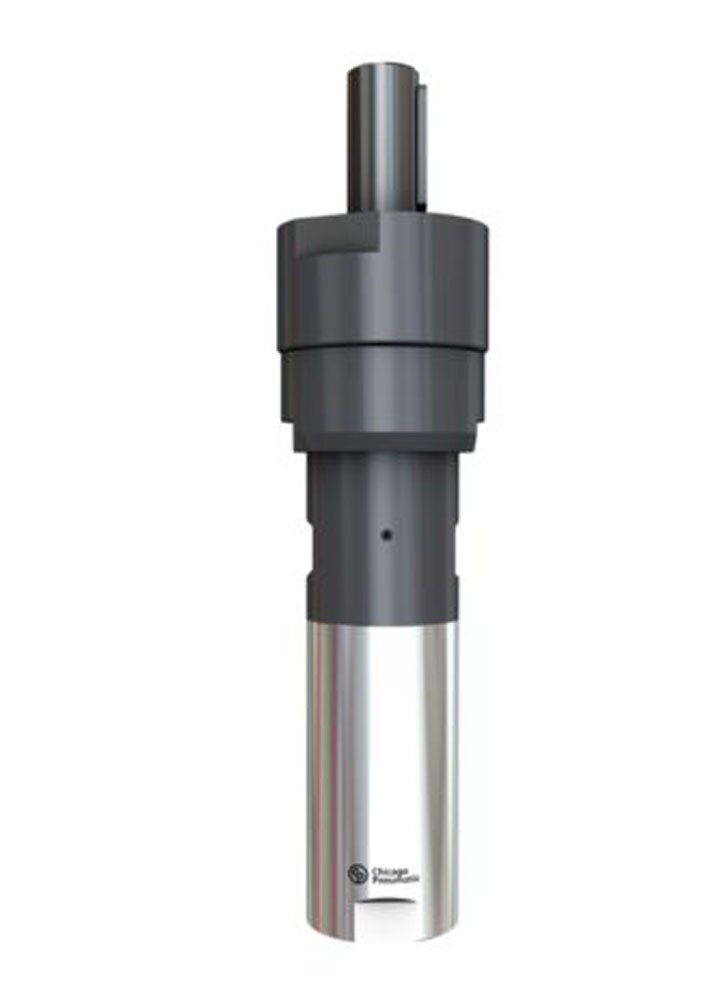

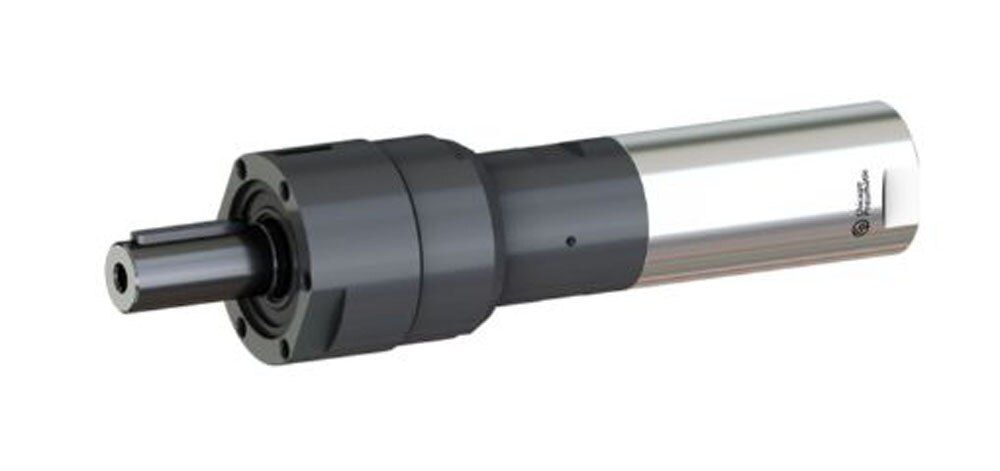

Chicago PneumaticMR180-200-K ATEX
M Motor, Reversible, 1 .40 - 1 .83 kW, 200 RPM, Keyed Spindle, ATEX
Standard vane air motor
$4,054.07List $5,067.58
Save $1,013.51Total$4,054.07Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorized service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
MR180-200-K ATEX | M Motor, Reversible, 1 .40 - 1 .83 kW, 200 RPM, Keyed Spindle, ATEXMR180-200-K ATEX
Total$4,054.07
1
Details
Product information
Overview
Chicago Pneumatic MR180-200-K ATEX | M Motor, Reversible, 1 .40 – 1 .83 kW, 200 rpm, Keyed Spindle, ATEX Certified Air Motor
| Technical Specifications | |
|---|---|
| Model | MR180-200-K ATEX |
| Manufacturer | Chicago Pneumatic |
| Free Speed (RPM) | 200 |
| SKU | 2051479684 |
| Stock Code | 3 |
| Max Torque (Ft Lb) | 86 |
| Max Torque (Nm) | 117 |
| Rated Power (kw) | 1.41 |
| Weight (lbs) | 11.1 |
| Starting Torque (ft lb) | 111 |
| Stall Torque (ft lb) | 172 |
| Series | M188 |
| Air Cons. @ Load (cfm) | 66 |
| Rated Power (hp) | 1.89 |
| Stall Torque (Nm) | 233 |
| Weight (kg) | 5.1 |
| Air Consp. @ Free Speed (L/s) | 31 |
| MPN | MR180-200-K ATEX |
