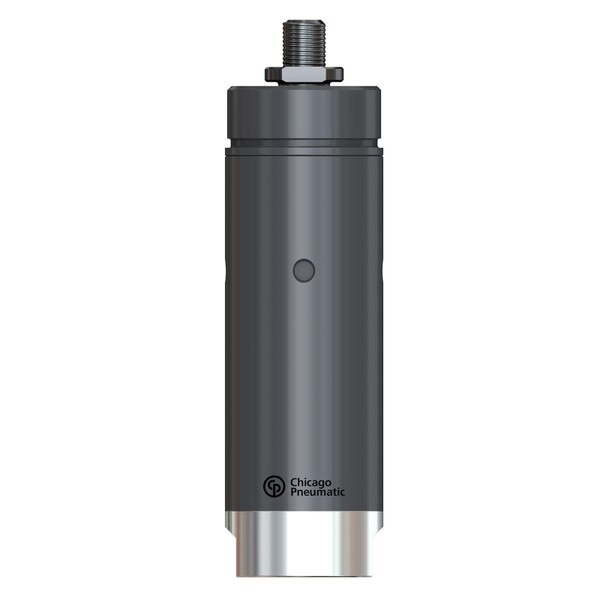

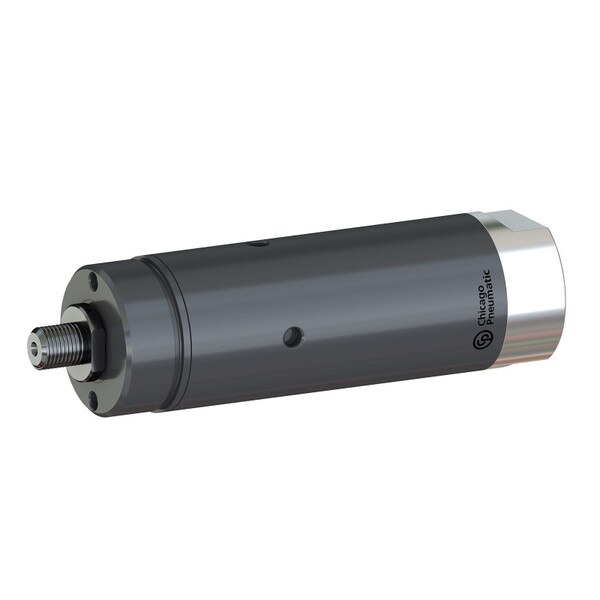

Chicago PneumaticMR25-1300-KL ATEX
M Motor, Reversible, 0.16 - 0.25 kW, 1300 RPM, Keyed Spindle, Oil-Free, ATEX
Standard vane air motor
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
MR25-1300-KL ATEX | M Motor, Reversible, 0.16 - 0.25 kW, 1300 RPM, Keyed Spindle, Oil-Free, ATEXMR25-1300-KL ATEX
Price on request
Details
Product information
Overview
Chicago Pneumatic MR25-1300-KL ATEX | M Motor, Reversible, 0 .16 – 0 .25 kW, 1300 rpm, Keyed Spindle, Oil-Free, ATEX Certified Air Motor
| Technical Specifications | |
|---|---|
| Model | MR25-1300-KL ATEX |
| Manufacturer | Chicago Pneumatic |
| Free Speed (RPM) | 1300 |
| SKU | 2051478394 |
| Stock Code | 3 |
| Max Torque (Ft Lb) | 1.8 |
| Max Torque (Nm) | 2.4 |
| Rated Power (kw) | 0.16 |
| Weight (lbs) | 1.21 |
| Starting Torque (ft lb) | 2.4 |
| Stall Torque (ft lb) | 3.5 |
| Series | M25-KL/TL |
| Air Cons. @ Load (cfm) | 10.6 |
| Rated Power (hp) | 0.21 |
| Stall Torque (Nm) | 4.8 |
| Weight (kg) | 0.55 |
| Air Consp. @ Free Speed (L/s) | 5 |
| MPN | MR25-1300-KL ATEX |
