Chicago PneumaticMR39-360-KSL ATEX
M Motor, Reversible, 0.25 - 0.39 kW, 360 RPM, Keyed Spindle, Stainless Steel, Oil-Free, ATEX
Stainless steel vane air motor
$1,838.01List $2,297.52
Save $459.51Total$1,838.01Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorized service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.

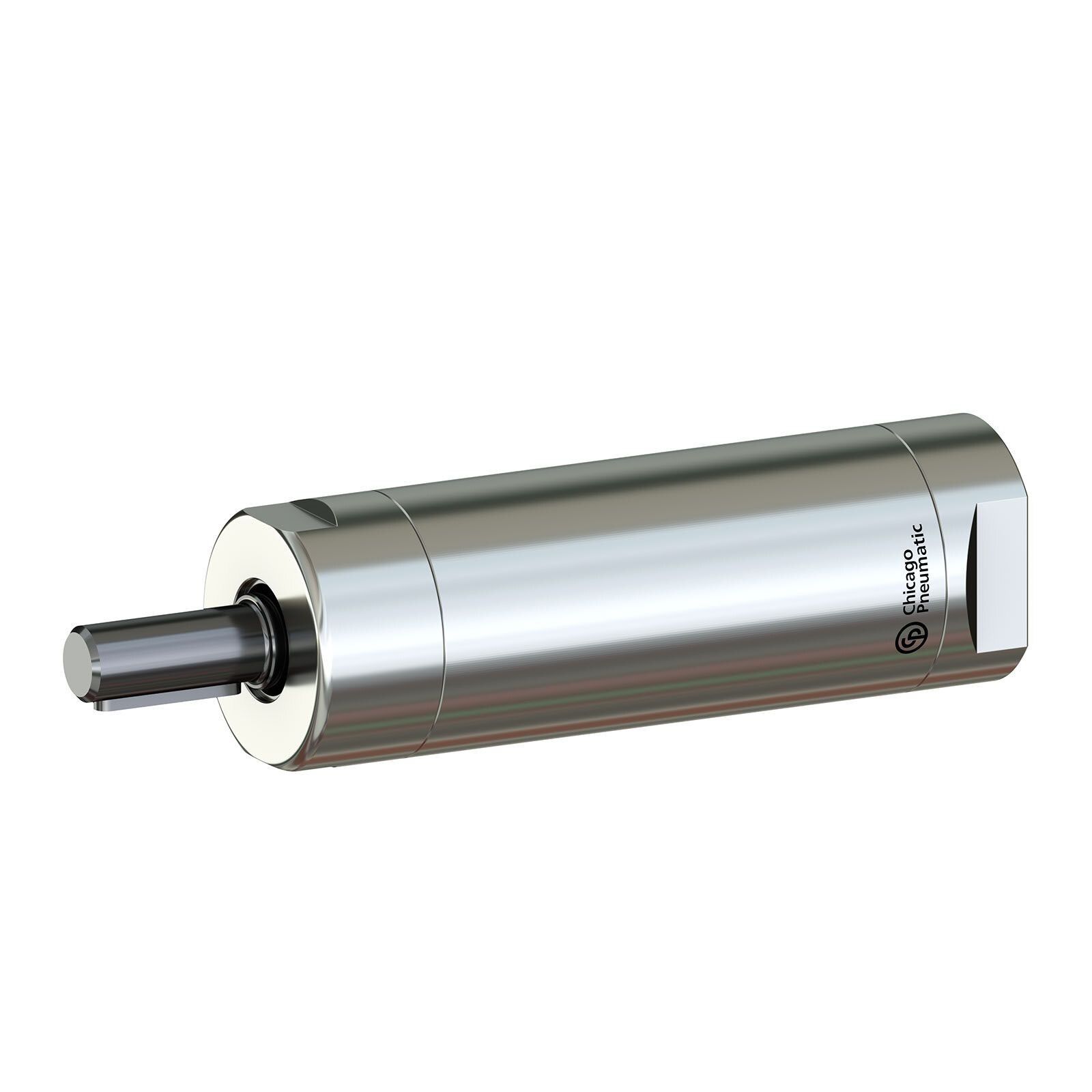

MR39-360-KSL ATEX | M Motor, Reversible, 0.25 - 0.39 kW, 360 RPM, Keyed Spindle, Stainless Steel, Oil-Free, ATEXMR39-360-KSL ATEX
Total$1,838.01
1
Details
Product information
Overview
Chicago Pneumatic MR39-360-KSL ATEX | M Motor, Reversible, 0 .25 – 0 .39 kW, 360 rpm, Keyed Spindle, Stainless Steel, Oil-Free, ATEX Certified Air Motor
| Technical Specifications | |
|---|---|
| Model | MR39-360-KSL ATEX |
| Manufacturer | Chicago Pneumatic |
| Free Speed (RPM) | 360 |
| SKU | 2051478914 |
| Stock Code | 3 |
| Max Torque (Ft Lb) | 8.9 |
| Max Torque (Nm) | 12.1 |
| Rated Power (kw) | 0.25 |
| Weight (lbs) | 2.65 |
| Starting Torque (ft lb) | 11.5 |
| Stall Torque (ft lb) | 17.7 |
| Series | M39-KSL |
| Air Cons. @ Load (cfm) | 16.8 |
| Rated Power (hp) | 0.34 |
| Stall Torque (Nm) | 24 |
| Weight (kg) | 1.2 |
| Air Consp. @ Free Speed (L/s) | 7.9 |
| MPN | MR39-360-KSL ATEX |
