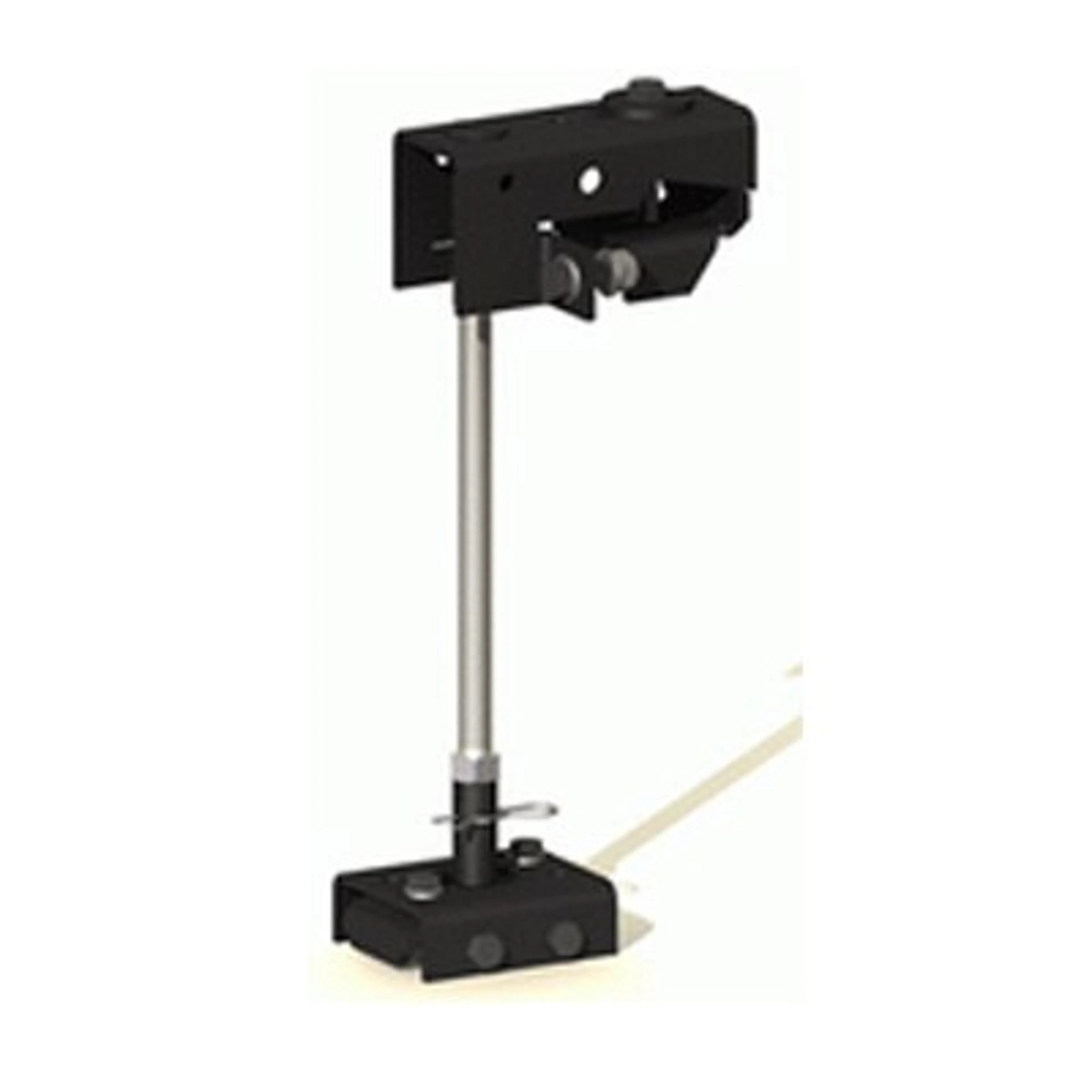

C-Channel Rod and Ball Load Hanger

Knight Industries MRHS4034

C-Channel Rod And Ball Load Hanger

Features

• Recommended Light Duty Use Only. Should not be used in applications that include: cantilevered loads, telescoping rails, shock loading, tractors, or heavy duty cycles.
• Suspends Knight RAD4110 or RAD7510 Aluminum Rail
• Attaches up to 2.5in. [64mm] Maximum C-Channel flange.
• Includes 1ft. [0.3m] threaded rod.
• Optional threaded rod lengths are available up to 12ft. [3.6m].
• Rod lengths 2ft. [0.6m] or greater require the use of V-Sway Braces (MRWS40161 or MRWS41431
• Structural steel can be perpendicular or parallel to the Knight rail.
• Optional Safety Cable (RWA4133)
• Load Hangers are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of 49 ksi and a yield point of 30 ksi.
• All load hangers are coated with an environmentally friendly corrosion protection (Autophoretic ACC 800).
• 2.50" [64.0mm] Max. Structural Support Flange Size
• For Direct Loads
• Adjustable Height
• Product Weight: 7.9 lbs [3.58 kg]
• Product Weight Note: Add 1.0 lbs [0.45 kg] per foot of added threaded rod.
