Horizontal Mounting Bracket Compatible With Mtmdp2 Systems

Advanced Witness Series MTM2-HB

Horizontal Mounting Bracket Compatible With Mtmdp2 Systems

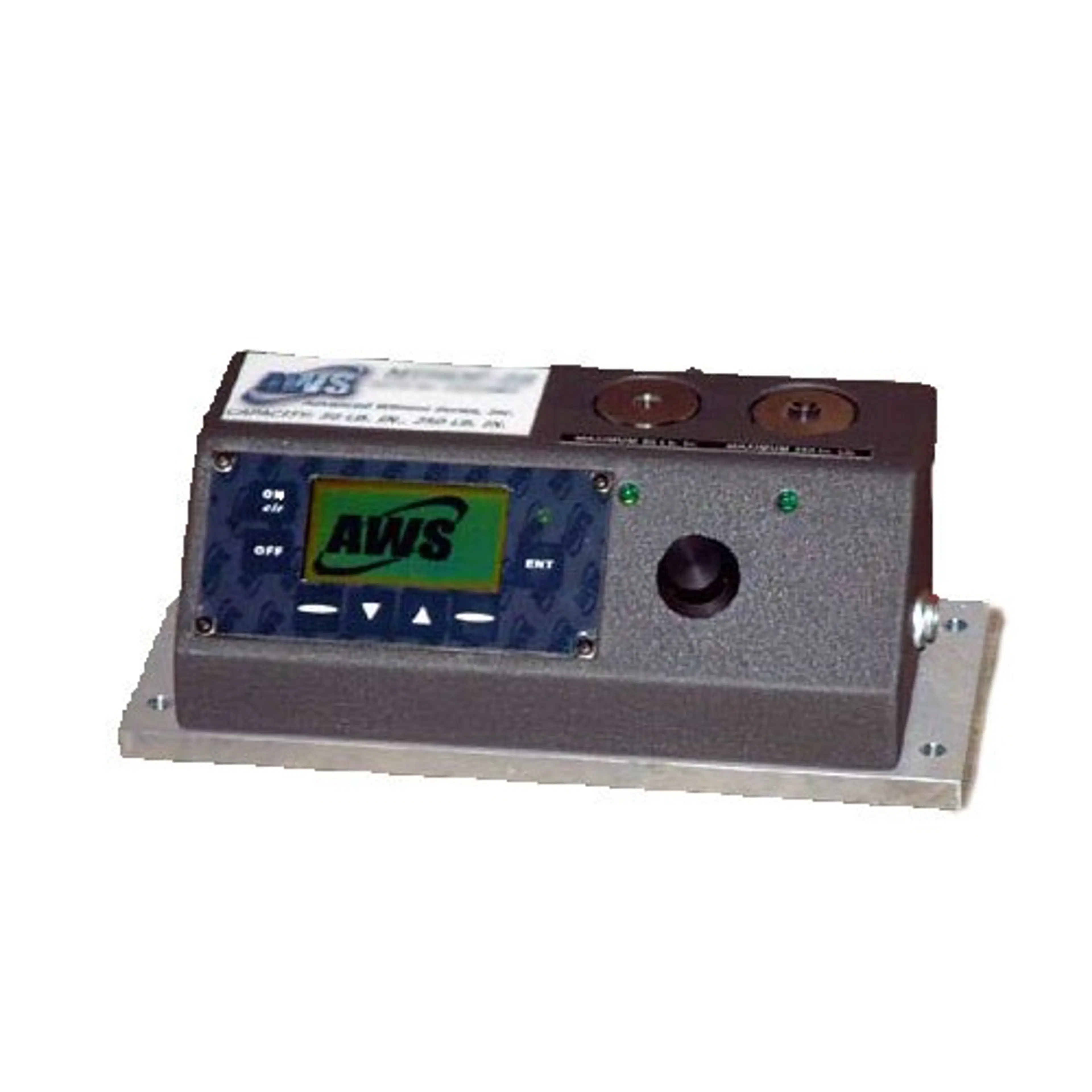

The AWS-MTM Series of torque transducer are designed to provide an economical way to measure and calibrate multiple torque tools. The MTMDP models (MTMDP-2 pictured) include an integrated display for a fully integrated tester.

Historically, transducer shafts had to be purchased individually and connected to a display via a switch box or rats nest of cables. With the MTM series, up to 4 transducer shafts can be connected to one display with only one cable.

The small footprint also allows for a clean, well-organized work space. This helps eliminate the endless searching for cables, adaptors, and other accessories that may be needed.

Features such as independent CW and CCW calibration, multi-point linearization, metrology grade transducer shafts, and overload protection to 200% of full scale are standard. All of the above translate to a better product for you at an unbeatable price.

Features:

• MTMDP-2 Series with 2 built-in torsion shafts and built-in display.
• MTMDP-4 Series with 4 built-in torsion shafts and built-in display.
• User-selectable ranges: Sizes available: 100 oz.in. thru 750 Lb.ft.
• Built-in switch for easy transducer selection.
• LED indicator shows active transducer.
• Selected transducer capacity is displayed on the torque readout.
• Accuracy of ± 0.5% of indicated, top 90% of full scale standard.
• Accuracy of ± 0.25% of indicated, top 90% of full scale optional.
• Extended calibration range of 5 - 100% of full scale optional.
• Unique replaceable shaft design. If one shaft is damaged, replace that one shaft, not the entire unit. This saves on repair cost and down time.
• RS-232 output can be used to print values to a serial printer, or sent to a PC with our cable and software package
