Torque tool tester, 100 lbFin / 1600 ozFin / 116 kgFcm / 115 Ncm / 11.5 Nm
Elevate your torque tool testing capabilities with the Mark-10 MTT02-100 Torque Tool Tester. Its simplicity, accuracy, and advanced features make it an indispensable tool for quality control professionals. Invest in the MTT02-100 and experience precise and reliable torque measurements that empower you to maintain the highest standards in your assembly processes.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Recommended Accessories
3 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 15-100415-1004 | MESUR™ gauge software$638.40 | $638.40 | 1 | View details |
| $161.50 | 1 | View details | |
| $190.00 | 1 | View details |
Details
Product information
Overview

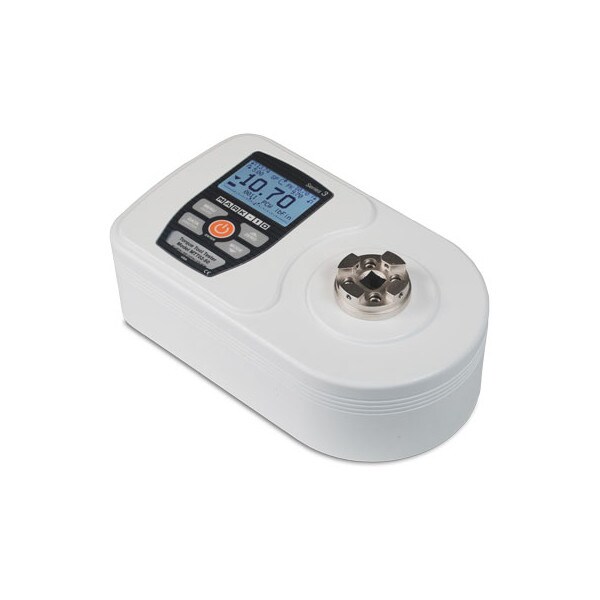

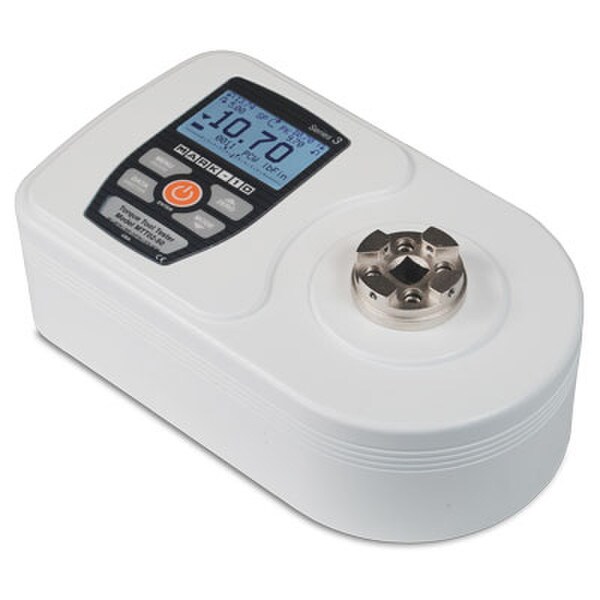

Introducing the Mark-10 MTT02-100 Torque Tool Tester, a compact and rugged solution for testing manual, electric, and pneumatic torque screwdrivers, wrenches, and other tools. Designed for production environments, this versatile tester offers precise and reliable torque measurements, enhancing your quality control processes.
- Capacity: 100 lbFin / 1600 ozFin / 116 kgFcm / 115 Ncm / 11.5 Nm
- Accuracy: +/-0.3% of full scale
- Resolution: 0.01 lbFin / 0.1 ozFin / 0.1 kgFcm / 0.01 Ncm / 0.001 Nm
- Sampling Rate: 7,000 Hz
- Memory Storage: 1,000 readings
| Technical Specifications | |
|---|---|
| Model | MTT02-100 |
| Permissable Environmental Conditions | 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating) |
| Overload Protection | 150% of full scale |
| Type | Torque Tool Tester |
| Drive size | 3/8" square |
| Manufacturer | Mark-10 |
| Warranty | 3 Year Warranty |
| Accuracy (+/-) | 0.30% |
| SKU | MTT02-100 |
| Stock Code | 3 |
| Min Torque (In Lb) | 10.0 |
| Max Torque (In Lb) | 100.0 |
| Min Torque (Nm) | 1.15 |
| Max Torque (Nm) | 11.5 |
| Weight (lbs) | 5.8 |
| Series | TT02 |
| Drive Type | 3/8" square |
| Accuracy | ±0.3% of full scale |
| MPN | MTT02-100 |
| Features & Benefits | |
| Simple and Accurate Testing: The MTT02-100 provides a straightforward and accurate method to assess the performance of your torque tools. With a capacity of 100 lbFin / 1600 ozFin / 116 kgFcm / 115 Ncm / 11.5 Nm, it caters to a wide range of applications. | |
| Peak Capture and Calculation: The tester captures peak torque in both clockwise (CW) and counterclockwise (CCW) directions, enabling comprehensive analysis of your tools. Additionally, it calculates the 1st and 2nd peaks, making it ideal for evaluating click-type tools. | |
| High-Speed Sampling: Equipped with a rapid sampling rate of 7,000 Hz, the MTT02-100 ensures reliable and consistent test results, giving you confidence in the accuracy of your measurements. | |
| Versatile Connectivity: The tester comes with a range of connectivity options, including USB, RS-232, Mitutoyo, and analog outputs. This flexibility allows for integration with various data acquisition systems and devices. | |
| Advanced Productivity Features: The MTT02-100 offers several productivity-enhancing features, such as automatic data output, zeroing, and data storage upon tool slip or click. It also includes memory storage for up to 1,000 readings, pass/fail indicators and outputs, and password protection to preve | |
