Torque tool tester, 12 lbFin / 192 ozFin / 14 kgFcm / 135 Ncm / 1.35 Nm
Elevate your torque tool testing capabilities with the Mark-10 MTT02-12 Torque Tool Tester. Its simplicity, accuracy, and advanced features make it an indispensable tool for quality control professionals. Invest in the MTT02-12 and experience precise and reliable testing in your production environment.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Recommended Accessories
3 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 15-100415-1004 | MESUR™ gauge software$638.40 | $638.40 | 1 | View details |
| $161.50 | 1 | View details | |
| $190.00 | 1 | View details |
Details
Product information
Overview

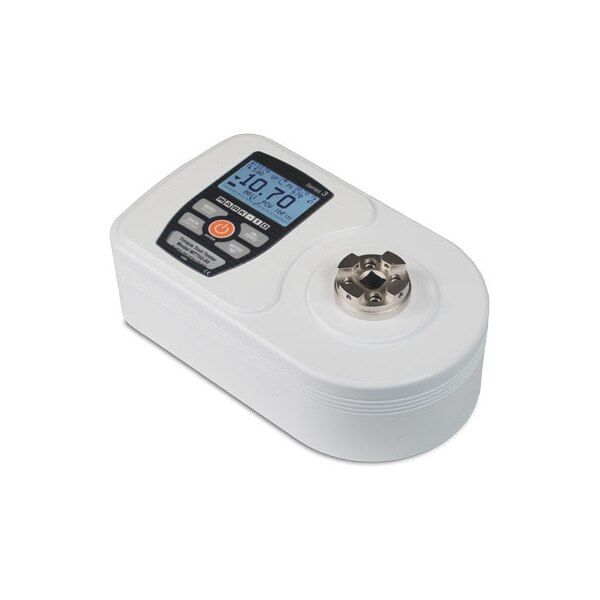

Introducing the Mark-10 MTT02-12 Torque Tool Tester, a compact and rugged solution for testing manual, electric, and pneumatic torque screwdrivers, wrenches, and other tools. Designed for production environments, this versatile tester delivers accurate and reliable results, enhancing your quality control processes.
- Capacity: 12 lbFin / 192 ozFin / 14 kgFcm / 135 Ncm / 1.35 Nm
- Accuracy: +/-0.3% of full scale
- Resolution: 0.001 lbFin / 0.01 ozFin / 0.001 kgFcm / 0.01 Ncm / 0.0001 Nm
- Sampling Rate: 7,000 Hz
- Memory Storage: 1,000 readings
| Technical Specifications | |
|---|---|
| Model | MTT02-12 |
| Permissable Environmental Conditions | 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating) |
| Overload Protection | 150% of full scale |
| Type | Torque Tool Tester |
| Drive size | 3/8" square |
| Manufacturer | Mark-10 |
| Warranty | 3 Year Warranty |
| Accuracy (+/-) | 0.30% |
| SKU | MTT02-12 |
| Stock Code | 3 |
| Min Torque (In Lb) | 1.2 |
| Max Torque (In Lb) | 12 |
| Min Torque (Nm) | .135 |
| Max Torque (Nm) | 1.35 |
| Weight (lbs) | 5.8 |
| Series | TT02 |
| Drive Type | 3/8" square |
| Accuracy | ±0.3% of full scale |
| MPN | MTT02-12 |
| Features & Benefits | |
| Simple and Accurate Testing: The MTT02-12 offers a straightforward and precise solution for evaluating the performance of your torque tools. With a universal 3/8" square receptacle, it accepts common bits and attachments, making it compatible with a wide range of tools. | |
| Peak Torque Capture: This torque tool tester captures peak torque in both measurement directions, providing comprehensive data for analysis. Additionally, it calculates 1st and 2nd peaks, making it ideal for testing click-type tools. | |
| High-Speed Sampling: Equipped with a blazingly fast sampling rate of 7,000 Hz, the MTT02-12 ensures reliable and consistent test results. This high-speed sampling capability allows for precise measurement and analysis of even the most dynamic torque applications. | |
| Data Storage and Output: The tester includes memory storage for up to 1,000 readings, allowing you to store and review test data easily. It also features USB, RS-232, Mitutoyo, and analog outputs, providing versatile connectivity options for data transfer and analysis. | |
| Advanced Features: The MTT02-12 comes with a range of sophisticated features to enhance productivity. These include automatic data output/zeroing/data storage upon tool slip or click, pass/fail indicators and outputs, and password protection to prevent unauthorized changes to settings and calibratio | |
