Mark-10 MTT03-50
Torque gauge, 50 lbFin / 580 kgFmm / 570 Ncm

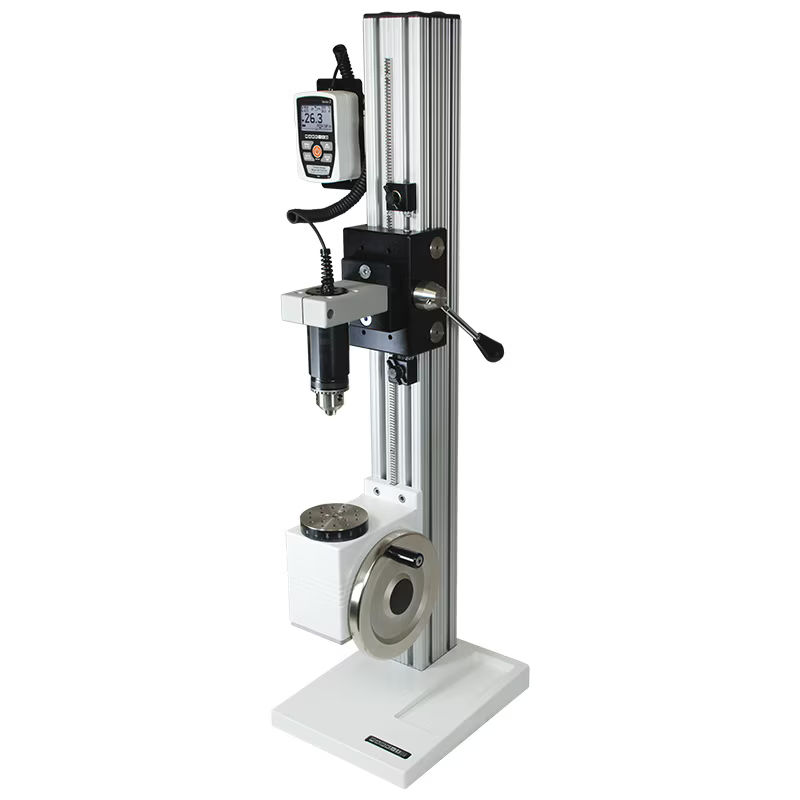

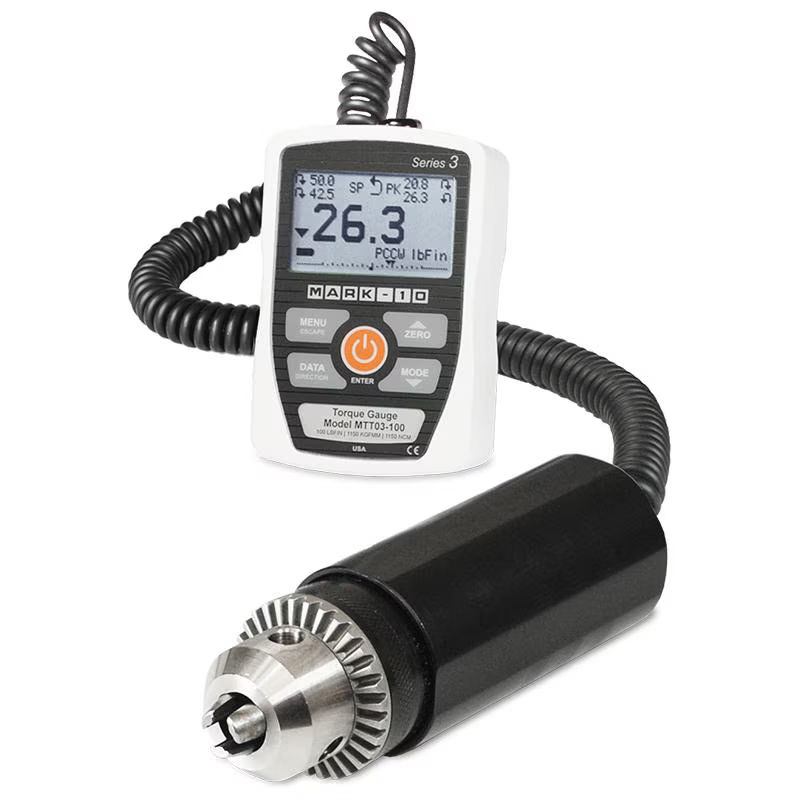

TT03 digital torque gauges are designed for clockwise and counter-clockwise torque testing applications in virtually every industry, with capacities from 10 ozFin to 100 lbFin (7 to 1,150 Ncm). A dedicated remote torque sensor with Jacobs chuck can be used to grip a sample, bit, or fixture. The gaugesÂ’ rugged aluminum housing allows for hand-held use or test stand mounting for more sophisticated testing requirements.

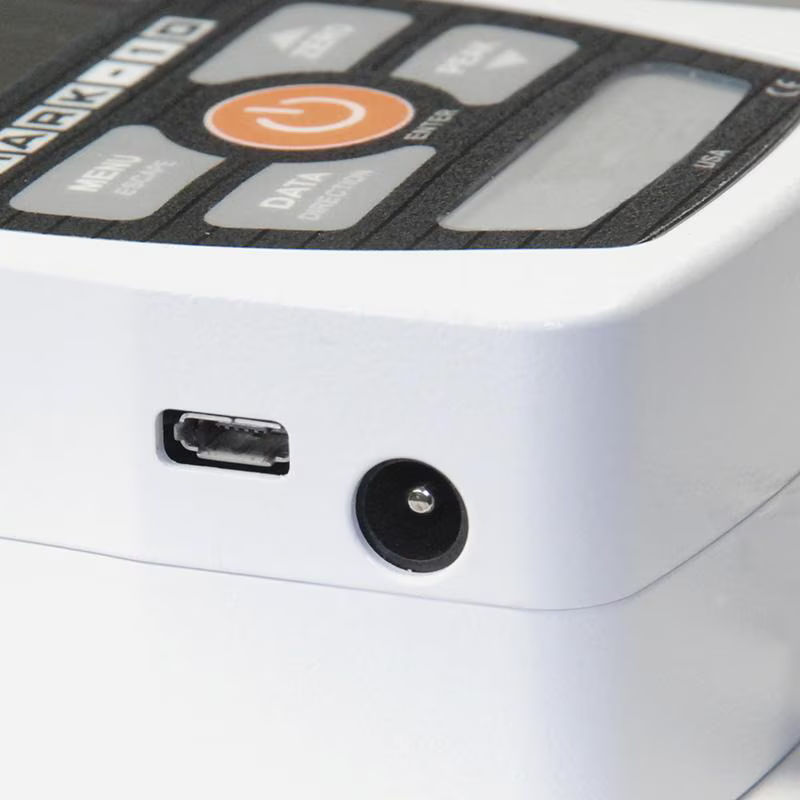

Series TT03 features a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gaugesÂ’ features and configurable parameters. USB output is provided for data collection purposes.
Set point indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force. The gauges include MESUR™ Lite data acquisition software, for tabulation of continuous or individual data points. One-click export to Excel allows for further data manipulation.
| Technical Specifications | |
|---|---|
| Model | MTT03-50 |
| Permissable Environmental Conditions | 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating) |
| Overload Protection | 150% of full scale |
| Type | Digital Torque Gauge |
| Manufacturer | Mark-10 |
| Warranty | 3 Year Warranty |
| SKU | MTT03-50 |
| Stock Code | 2 |
| Weight (lbs) | 1.8 |
| Series | TT03 |
| Accuracy | ±0.5% of full scale |
| MPN | MTT03-50 |
| Features & Benefits | |
| Ergonomic torque sensor with Jacobs chuck | |
| Peak torque values saved and displayed | |
| High-speed 2,000 Hz sampling rate | |
| Live load bar graphs with set point markers | |
| High-speed 2 | |
| 000 Hz sampling rate | |
