StahlwilleMP300-800
Torque Multiplier, 800 Nm, 1/2'' in x 3/4'' out

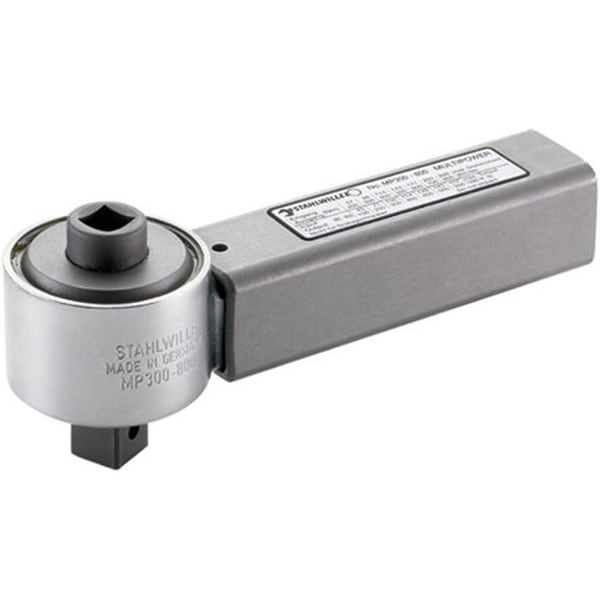

The Stahlwille MP300-800 torque multiplier delivers high-output torque with minimal physical input. Engineered with planetary gearing and robust construction, it’s the professional solution for handling high-torque connections with precision and safety.
$1,543.88List $2,315.81
Save $771.93Total$1,543.88Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
MP300-800 | Torque Multiplier, 800 Nm, 1/2'' in x 3/4'' out53030800
Total$1,543.88
1
Details
Product information
Overview
The Stahlwille MP300-800 torque multiplier features a planetary gear system, it delivers smooth, consistent torque without requiring long lever arms or excessive force. Allowing for safe and accurate operation—even with stubborn or oversized fasteners.
| Technical Specifications | |
|---|---|
| Manufacturer | Stahlwille |
| SKU | 53030800 |
| Series | MULTIPOWER |
| Model | MP300-800 |
| Type | Torque Multiplier |
| Size | 800 |
| Output Capacity (Nm) | 800 (E1) / 229 (E2) |
| Output Capacity (Ft lbs) | 590 (E1) / 169 (E2) |
| Gear Ratio | 4:01 |
| Torque Ratio | 1:3.5 |
| Length (mm) | 215 |
| Width (mm) | 66 |
| Height (mm) | 85 |
| Weight (lbs) | 4.41 |
| Weight (g) | 2000 |
| MPN | 53030800 |
| Features & Benefits | |
| High Torque Output: Delivers up to 800 Nm with ease—no need for oversized levers or extensions. | |
| Planetary Gear Drive: Enables efficient torque transfer with steady motion and reduced operator fatigue. | |
| Precision Engineering: Designed for consistent, accurate torque application over time. | |
| Heavy-Duty Construction: Made to withstand high load cycles and harsh working environments. | |
