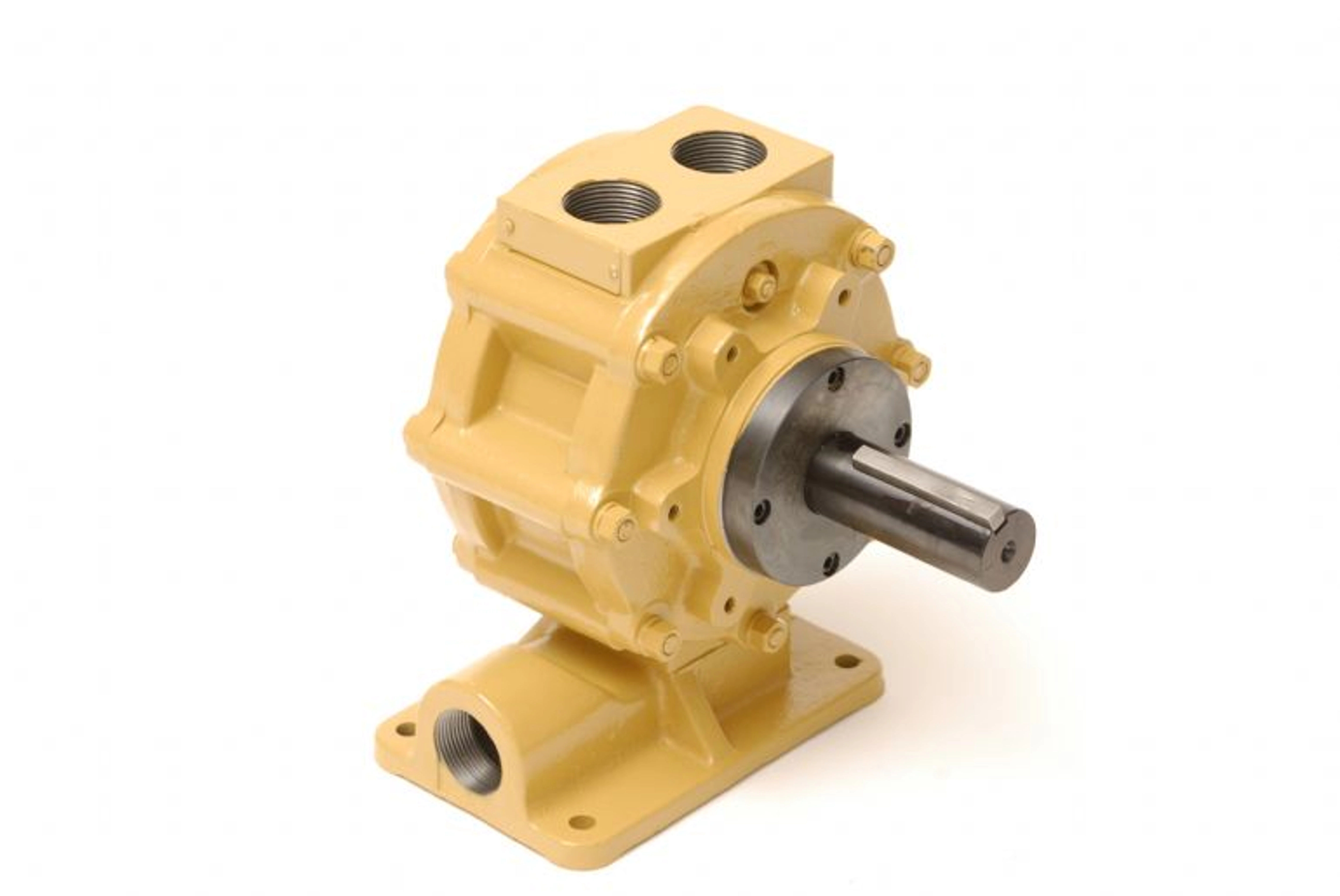

Ingersoll RandMVA034B/VSM-5159
4.15 Hp, 6250 Rpm, Direct Drive Multi-Vane Air Motor
$1,902.65List $2,475.00
Save $572.35Total$1,902.65Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
MVA034B/VSM-5159 | 4.15 Hp, 6250 Rpm, Direct Drive Multi-Vane Air MotorMVA034B/VSM-5159
Total$1,902.65
1
Details
Product information
Overview
Ingersoll Rand MVA034B/VSM-5159
4.15 Hp, 6250 Rpm, Direct Drive Multi-Vane Air Motor
Direct drive multi-vane air motors from 0.75 hp to 10.5 hp with speed adjustability through air controls.
Features:- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive environments.
- Instantly reversible.
- Compact and portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean air supply and proper lubrication.
- No shock starts: Air cushioned start-up cuts stress on your equipment.
- Mounting options: Face and foot mount.
| Technical Specifications | |
|---|---|
| Model | MVA034B/VSM-5159 |
| Manufacturer | Ingersoll Rand |
| SKU | MVA034B/VSM-5159 |
| Stock Code | 3 |
| Max Free Speed (rpm) | 6250 |
| Weight (lbs) | 2.2 |
| Starting Torque (ft lb) | 8.3 |
| Speed at Max Power (rpm) | 3000 |
| Stall Torque (ft lb) | 12.8 |
| Rated Power (hp) | 4.15 |
| Stall Torque (Nm) | 17.4 |
| MPN | MVA034B/VSM-5159 |
