Datasensing95B081480

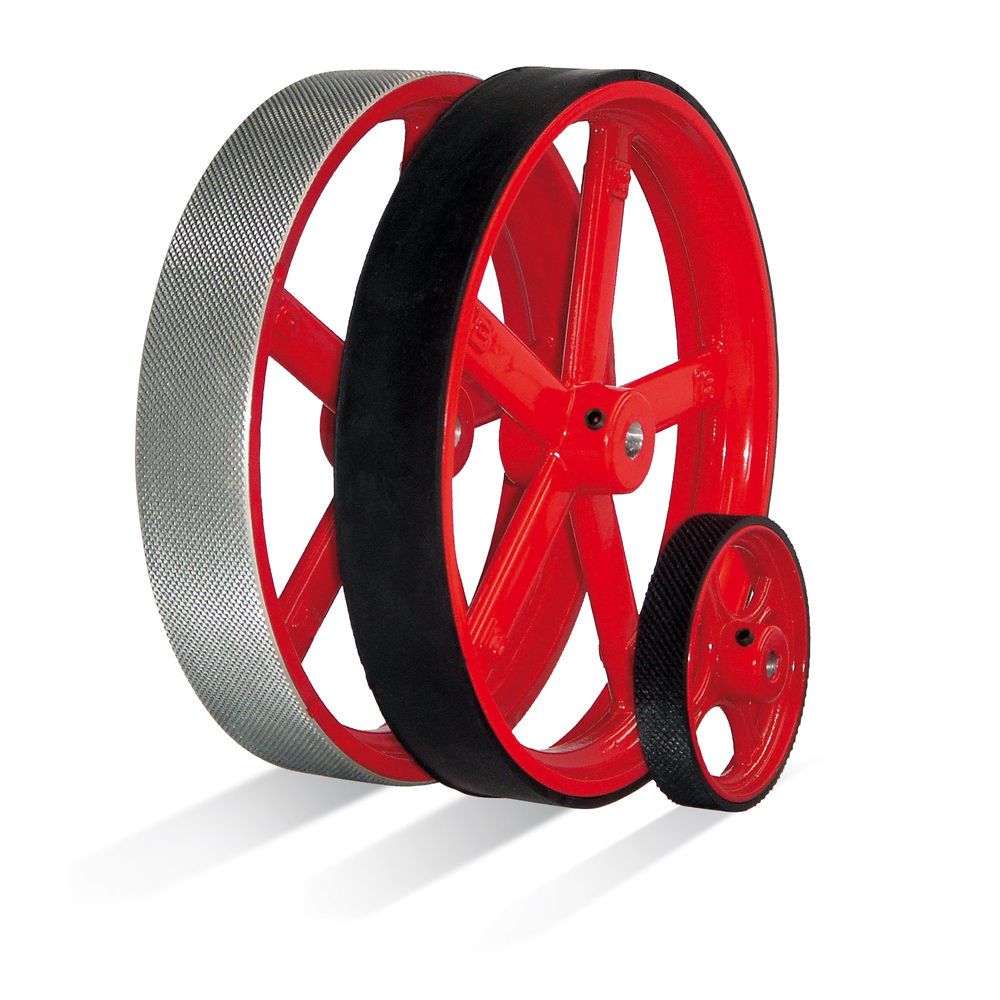

Metric wheel with circumference 200 mm
Metric wheels are used with encoders mainly for length measuring applications and the accuracy is given by the ratio between the wheel circumference and encoder’s resolution, e.g.: 500 mm / 8192 CPR = 0.061 mm per code 500 mm / 10000 PPR = 0.05 mm per pulse
$52.48List $78.72
Save $26.24Total$52.48Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
95B081480 | Metric wheel with circumference 200 mm95B081480
Total$52.48
1
Details
Product information
Overview
Datalogic MW-200-D6 / 95B081480
Metric wheel with circumference 200 mm
Metric wheels are used with encoders mainly for length measuring applications and the accuracy is given by the ratio between the wheel circumference and encoder?Æs resolution, e.g.:
- 500 mm / 8192 CPR = 0.061 mm per code
- 500 mm / 10000 PPR = 0.05 mm per pulse
| Technical Specifications | |
|---|---|
| Nominal Sensing Distance | n/a |
| Sensitivity Adjustment | n/a |
| Application Description | Circumference 200 mm |
| Functions | Metric wheel with hole Ø6 |
| Output Type | n/a |
| Response Time | n/a |
| Operating Voltage | n/a |
| Emission | n/a |
| Dimensions | Ø63x12 |
| Connections | n/a |
| Material | Plastic / Rubber |
| MPN | 95B081480 |
