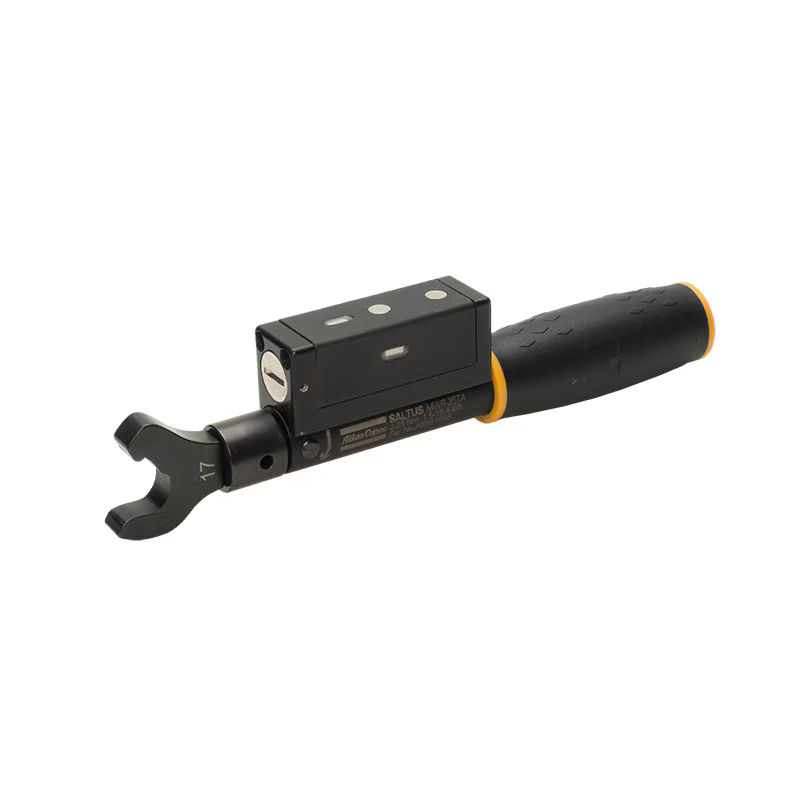

Atlas Copco 85 Nm mechatronic wrench, 9 x 12 drive
MWR-85 TA
Based on the mechanical "click" wrench the MWR mechatronic wrench is highly productive. The clear physical feedback with the distinctive "click" in combination with the colored LEDs makes it easy to handle even for untrained workers. Size and performance makes the MWR wrenches optimal for limited space applications with all functionalities in a compact size. Thanks to standard drive (9x12 and 14x18), the operator can choose from a wide range of Atlas Copco end fittings for his application.
Increase the quality of your joints considerably with the error proofing functionalities of the MWR mechatronic system. Combining the productivity of a click wrench with the traceability of an electronic one, this smart manual fastening system for tightening processes is a good investment. Using the smallest version of this high productive wrench you are able to get access to joints inaccessible for a standard tool. The online results provide a complete traceability of the tightening process.
| Technical Specifications | |
|---|---|
| Model | MWR-85 TA |
| Overload Protection | 120% of nominal capacity |
| Drive size | 9 x 12 mm |
| Manufacturer | Atlas Copco |
| Length (mm) | 307 |
| Min Torque (Ft Lb) | 11.1 |
| SKU | 8441 0044 22 |
| Max Torque (Ft Lb) | 62.7 |
| Min Torque (Nm) | 15 |
| Max Torque (Nm) | 85 |
| Repeatability | ± 4% |
| Drive Type | 9 x 12 mm |
| MPN | 8441 0044 22 |
