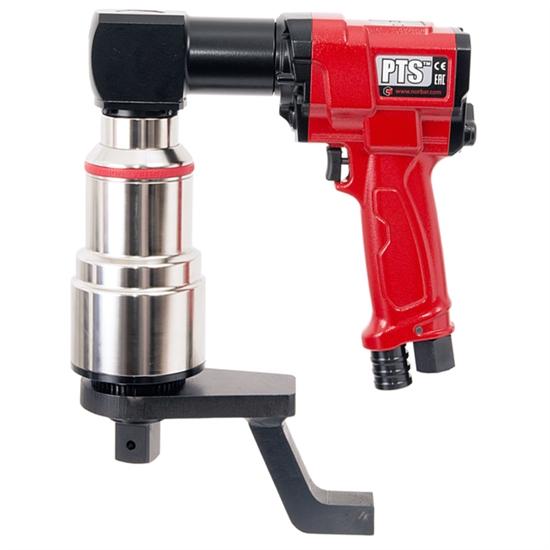

1-1/2 in. Square 4000 Nm Torque Multiplier with Right Angle Gearbox, 5.3 rpm

Norbar 1-1/2 in. Square 4000 Nm Torque Multiplier with Right Angle Gearbox, 5.3 rpm

180250.B12.RA

1-1/2 in. Square 4000 Nm Torque Multiplier with Right Angle Gearbox, 5.3 rpm by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!

The PTS is the result of an extensive design project to produce an efficient air motor, purpose built for this application in an accurate torque tool. The new air motor is then married to Norbar's respected gearbox range, sharing common torque reaction accessories with PTM and EvoTorque tools.

Features:

• Designed to offer excellent power-to-weight ratio
• Up to 2.5kg weight saving compared with PT equivalents
• Easily accessible switch for forward and reverse operation
• ±5% repeatability of reading from 20% to 100% of range
• Air coupling designed for safety and rapid operation
• Directional exhaust barrel directs exhaust away from operator
• Replaceable square drive
• Fast operation for rapid bolt rundown. Up to 60% faster than PT-72 model
• Non impacting - low vibration levels for comfortable and safe use
• Steel reactions supplied as standard. Bespoke reactions available
• Very quiet operation - reducing the need for protection with sound pressure levels from 77dB(A) to 79dB(A)
