Norbar18013
1-1/2 in. Square 6000 Nm Torque Multiplier, 1/2 in. input, 125:1
HandTorque models HT30 and 60 have all the features of the standard series, but have a higher torque output for a given gearbox diameter.
$4,608.40List $5,266.74
Save $658.34Total$4,608.40Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorized service
18013 | 1-1/2 in. Square 6000 Nm Torque Multiplier, 1/2 in. input, 125:118013
Total$4,608.40
1
Details
Product information
Overview

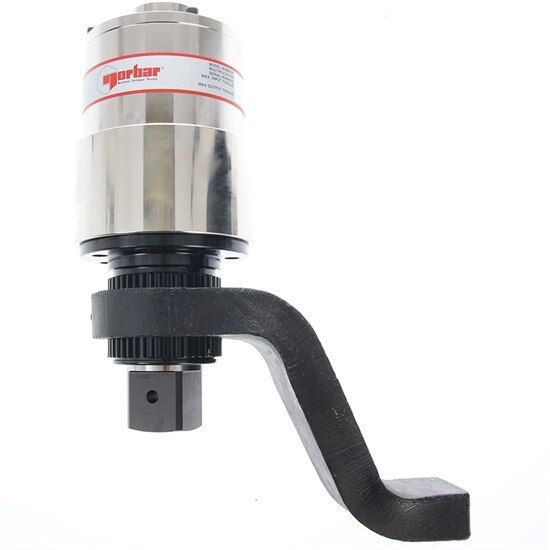

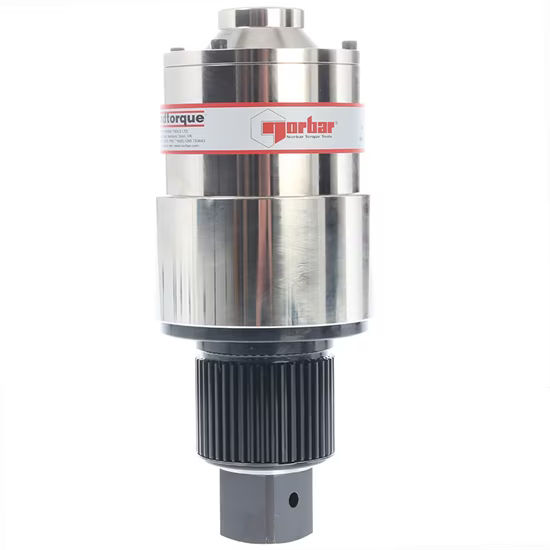

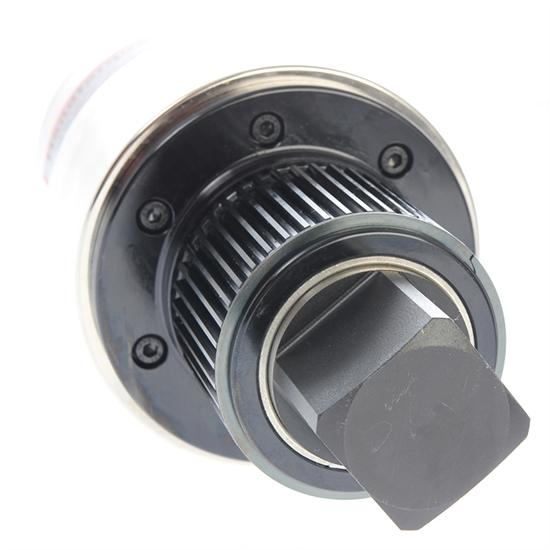

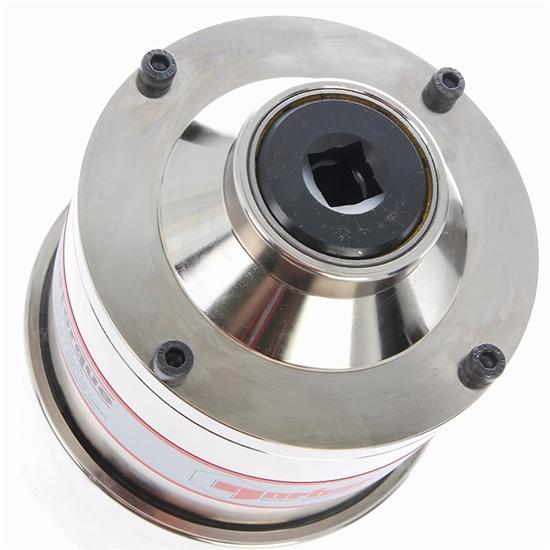

Norbar 1-1/2 in. Square 6000 Nm Torque Multiplier, 1/2 in. input, 125:1
18013
1-1/2 in. Square 6000 Nm Torque Multiplier, 1/2 in. input, 125:1 by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!
The HT60 Small Diameter HandTorque Multipliers have a high torque output (up to 6000 N·m) for the gearbox diameter, allowing better access particularly on pipe flanges.
Features:
- Reduced diameter allows better access, particularly on pipe flanges.

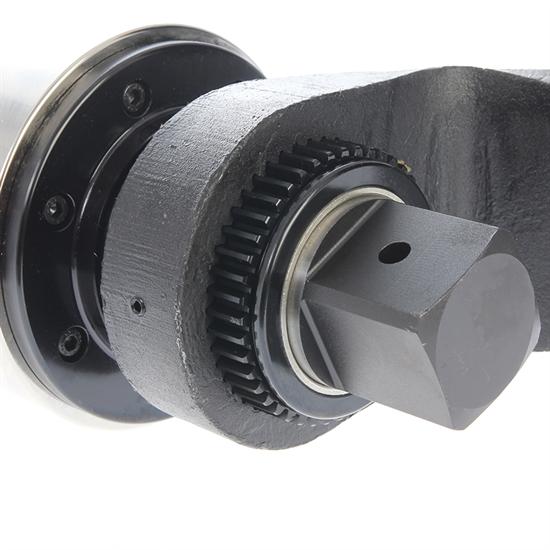

- Reaction taken from high strength spline.
- Reaction foot can slide on the spline to allow for sockets of various lengths.
- Anti Wind-Up Ratchet available on all models (except 5:1 ratios), allowing safer and more practical operation.
- HT45 has integral angle protractor for easy torque and angle tightening.
| Technical Specifications | |
|---|---|
| Model | 18013 |
| Type | Torque Multiplier |
| Drive size | 1/2'' square |
| Manufacturer | Norbar |
| SKU | 18013 |
| Max Torque (Ft Lb) | 4400 |
| Min Torque (Nm) | 600 |
| Max Torque (Nm) | 6000 |
| Input Drive (In) | 1/2 |
| Weight (lbs) | 24.25 |
| Ratio | 125:1 |
| Series | Small Diameter HT60 |
| Drive Type | 1-1/2 in. Square |
| Weight (kg) | 11 |
| MPN | 18013 |
| Features & Benefits | |
| High ratios allow the use of a small torque wrench,multipliers can be used where access is limited. | |
| True torque multiplication guaranteed better than ±4%. | |
