Norbar18008
1-1/2 in. Square 6000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 25:1
HandTorque models HT30 and 60 have all the features of the standard series, but have a higher torque output for a given gearbox diameter.
$5,066.40List $5,789.24
Save $722.84Total$5,066.40Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorized service
18008 | 1-1/2 in. Square 6000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 25:118008
Total$5,066.40
1
Details
Product information
Overview

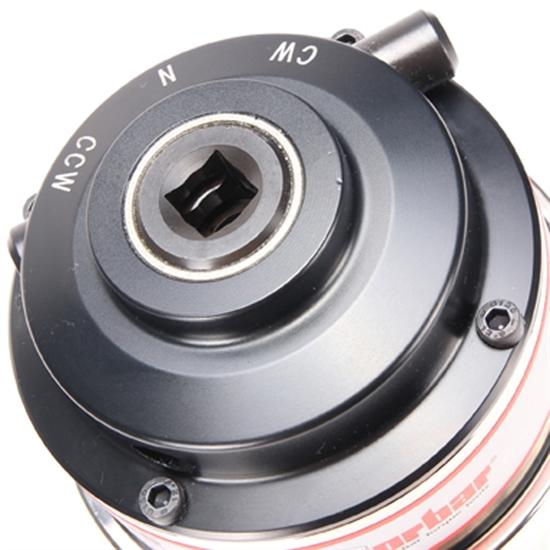

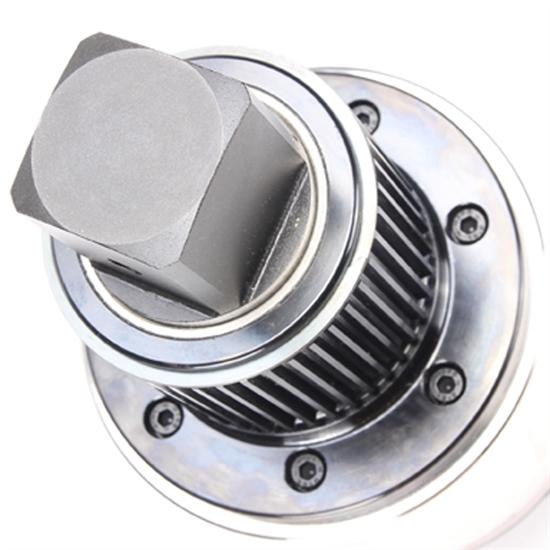

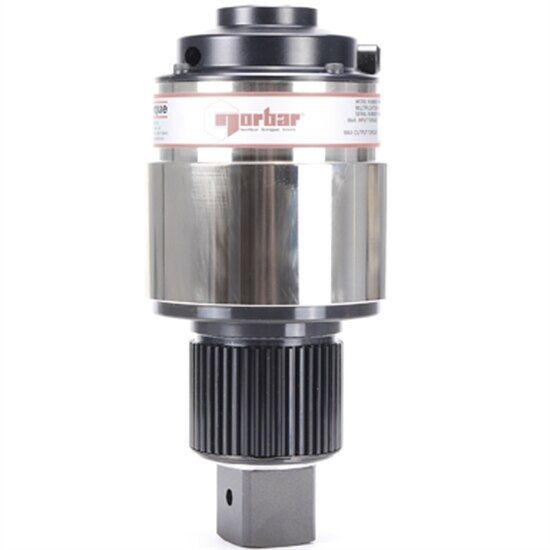

Norbar 1-1/2 in. Square 6000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 25:1
18008
1-1/2 in. Square 6000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 25:1 by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!
The HT60 Small Diameter HandTorque Multipliers have a high torque output (up to 6000 N·m) for the gearbox diameter, allowing better access particularly on pipe flanges.
Features:
- Reduced diameter allows better access, particularly on pipe flanges.
- Reaction taken from high strength spline.

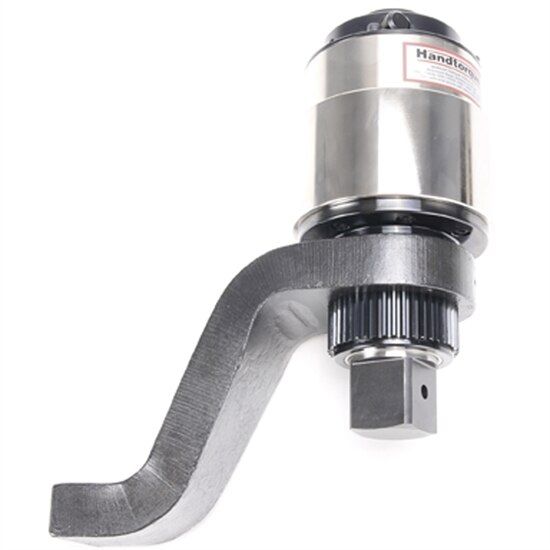

- Reaction foot can slide on the spline to allow for sockets of various lengths.
- Anti Wind-Up Ratchet available on all models (except 5:1 ratios), allowing safer and more practical operation.
- HT45 has integral angle protractor for easy torque and angle tightening.
| Technical Specifications | |
|---|---|
| Model | 18008 |
| Type | Torque Multiplier |
| Drive size | 1/2'' square |
| Manufacturer | Norbar |
| SKU | 18008 |
| Max Torque (Ft Lb) | 4400 |
| Min Torque (Nm) | 600 |
| Max Torque (Nm) | 6000 |
| Input Drive (In) | 1/2 |
| Weight (lbs) | 23.37 |
| Ratio | 25:1 |
| Series | Small Diameter HT60 |
| Drive Type | 1-1/2 in. Square |
| Weight (kg) | 10.6 |
| MPN | 18008 |
| Features & Benefits | |
| High ratios allow the use of a small torque wrench,multipliers can be used where access is limited. | |
| True torque multiplication guaranteed better than ±4%. | |
