Norbar18109.B12
PTM-119-6000-B | 1-1/2 in. Square 6000 Nm Torque Multiplier, Bi-Directional, Stall, 15.5 rpm
The latest extension to the PTM tool range brings the speed advantage to the twin motor handle to higher capacity PneuTorque models.
$9,120.59List $10,523.76
Save $1,403.17Total$9,120.59Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
18109.B12 | PTM-119-6000-B | 1-1/2 in. Square 6000 Nm Torque Multiplier, Bi-Directional, Stall, 15.5 rpmPTM-119-6000-B
Total$9,120.59
1
Recommended Accessories
2 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 6029060290 | Multi Channel Lubro Control Unit PneuTorque Accessory | 1 | View details | |
 OFFSETOFFSET | Geared Offset PneuTorque Accessory | 1 | View details |
Details
Product information
Overview

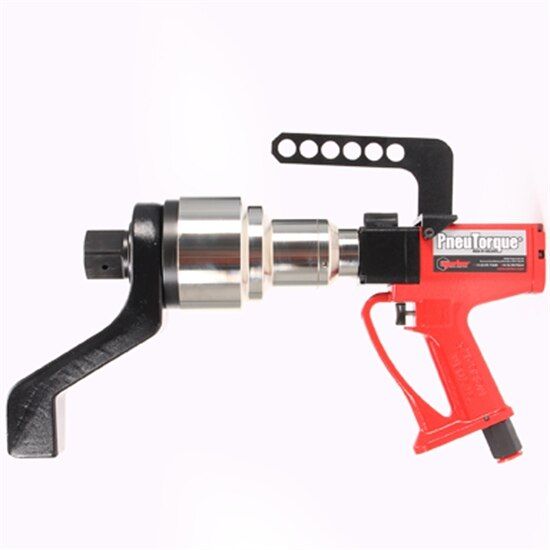

Norbar 1-1/2 in. Square 6000 Nm Torque Multiplier, Bi-Directional, Stall, 15.5 rpm
18109.B12
1-1/2 in. Square 6000 Nm Torque Multiplier, Bi-Directional, Stall, 15.5 rpm by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!
| Technical Specifications | |
|---|---|
| Model | PTM-119-6000-B |
| Type | Torque Multiplier |

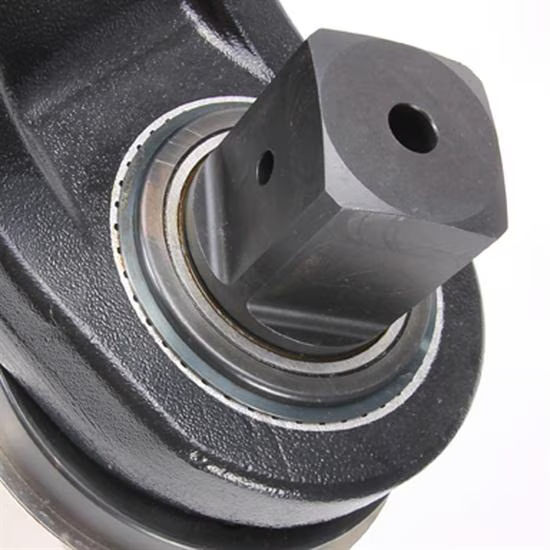

| Drive size | 1-1/2'' square |
| Manufacturer | Norbar |
| Length (mm) | 456 |
| Min Torque (Ft Lb) | 885 |
| Free Speed (RPM) | 15.5 |
| SKU | NOR18109.B12 |

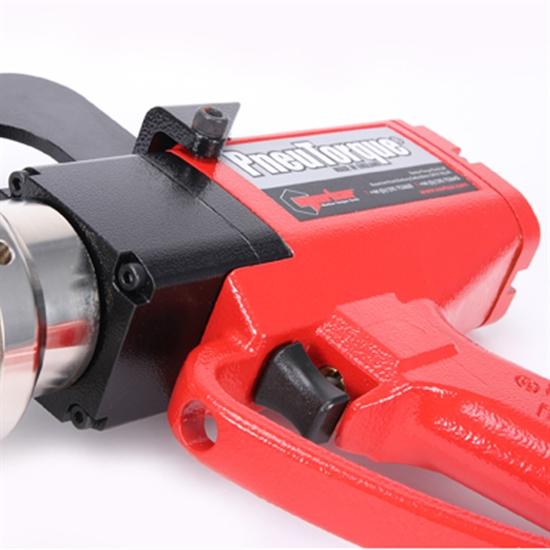

| Style | Pistol Grip |
| Max Torque (Ft Lb) | 4500 |
| Min Torque (Nm) | 1200 |
| Max Torque (Nm) | 6000 |
| Weight (lbs) | 27.5 |
| Series | PTM-119 |
| Drive Type | 1-1/2 in. Square |
| Weight (kg) | 12.5 |
| MPN | PTM-119-6000-B |
| Features & Benefits | |
| Efficient air motor | |
| Exceptionally low vibration levels | |
| Very quiet operation | |
| Light weight design | |
