1-1/2 in. Square 7000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 25.5:1
180216 | 1-1/2 in. Square 7000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 25.5:1
$5,156.87List $5,525.23
Save $368.36Total$5,156.87Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
180216 | 1-1/2 in. Square 7000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 25.5:1180216
Total$5,156.87
1
Details
Product information
Overview

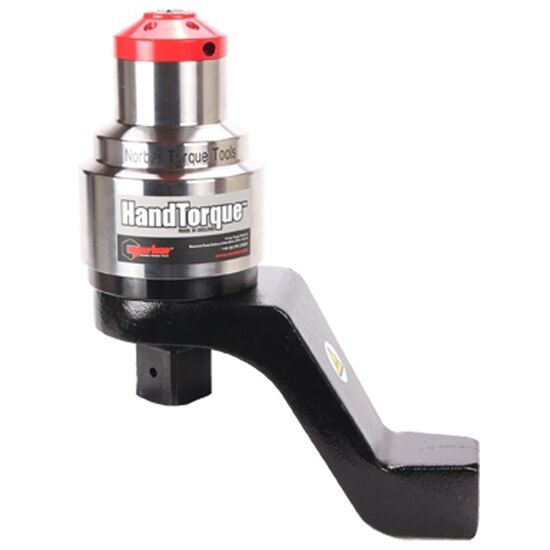

Norbar 1-1/2 in. Square 7000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 25.5:1
180216
1-1/2 in. Square 7000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 25.5:1 by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!
Features:
- Guaranteed accuracy of better than +/-4%.
- Anti Wind-Up Ratchet available on 25:1 models for easier and safer operation.
- A variety of reaction styles are available for maximum versatility.
- Electronic torque transducers can be fitted for precise torque monitoring.
- Available in a variety of ratios and output square drive sizes.
- Corrosion resistant finish.
- Supplied with traceable calibration certificate stating exact ratio. Calibrated from 20% of maximum capacity.
| Technical Specifications | |
|---|---|
| Model | 180216 |
| Type | Torque Multiplier |
| Drive size | 1-1/2'' square |
| Manufacturer | Norbar |
| SKU | 180216 |
| Min Torque (Nm) | 700 |
| Max Torque (Nm) | 7000 |
| Input Drive (In) | 1/2 |
| Weight (lbs) | 20.50 |
| Ratio | 25.5:1 |
| Series | Compact Series HT-119 |
| Drive Type | 1-1/2 in. Square |
| Weight (kg) | 9.3 |
| MPN | 180216 |
