Norbar180249.B12

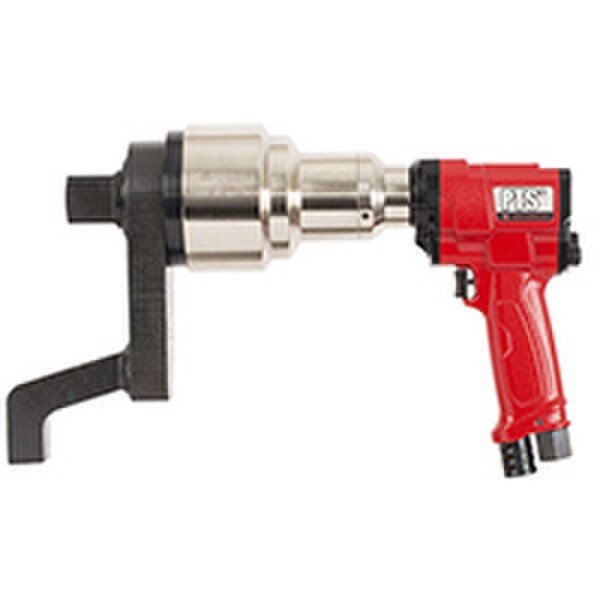

PTS-119-7000 | 1-1/2 in. Square 7000 Nm Torque Multiplier, 2.6 rpm
The PTS is the result of an extensive design project to produce an efficient air motor, purpose built for this application in an accurate torque tool.
$7,358.54List $8,490.62
Save $1,132.08Total$7,358.54Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorized service
180249.B12 | PTS-119-7000 | 1-1/2 in. Square 7000 Nm Torque Multiplier, 2.6 rpmPTS-119-7000
Total$7,358.54
1
Recommended Accessories
1 itemAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 180280180280 | Right Angle Gearbox PneuTorque Accessory | 1 | View details |
Details
Product information
Overview
Norbar 1-1/2 in. Square 7000 Nm Torque Multiplier, 2.6 rpm
180249.B12
1-1/2 in. Square 7000 Nm Torque Multiplier, 2.6 rpm by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!
The PTS is the result of an extensive design project to produce an efficient air motor, purpose built for this application in an accurate torque tool. The new air motor is then married to Norbar's respected gearbox range, sharing common torque reaction accessories with PTM and EvoTorque tools.
Features:
- Designed to offer excellent power-to-weight ratio
- Up to 2.5kg weight saving compared with PT equivalents
- Easily accessible switch for forward and reverse operation
- ±5% repeatability of reading from 20% to 100% of range
- Air coupling designed for safety and rapid operation
- Directional exhaust barrel directs exhaust away from operator
- Replaceable square drive
- Fast operation for rapid bolt rundown. Up to 60% faster than PT-72 model
- Non impacting - low vibration levels for comfortable and safe use
- Steel reactions supplied as standard. Bespoke reactions available
- Very quiet operation - reducing the need for protection with sound pressure levels from 77dB(A) to 79dB(A)
| Technical Specifications | |
|---|---|
| Model | PTS-119-7000 |
| Type | Torque Multiplier |
| Drive size | 1-1/2'' square |
| Max Air Pressure (psi) | 94 |
| Manufacturer | Norbar |
| Length (mm) | 407 |
| Min Torque (Ft Lb) | 1030 |
| Free Speed (RPM) | 2.6 |
| SKU | NOR180249.B12 |
| Style | Pistol Grip |
| Max Torque (Ft Lb) | 5200 |
| Min Torque (Nm) | 1400 |
| Max Torque (Nm) | 7000 |
| Weight (lbs) | 27.5 |
| Series | PTS-119 |
| Drive Type | 1-1/2 in. Square |
| Weight (kg) | 12.52 |
| MPN | PTS-119-7000 |
| Features & Benefits | |
| Single efficient bi-directional air motor | |
| Exceptionally low vibration levels | |
| Very quiet operation | |
| Light weight design | |
