Norbar16072

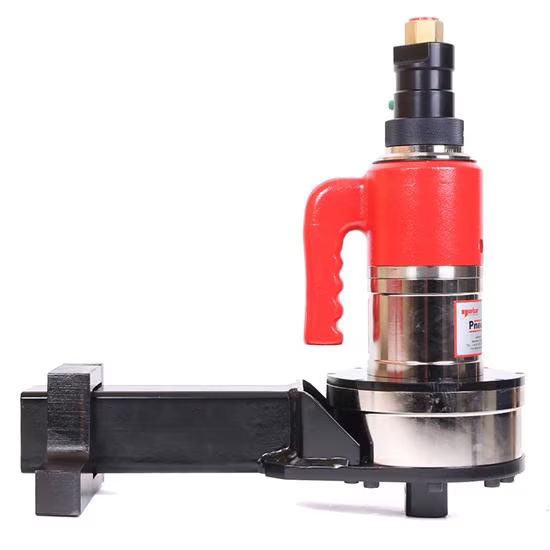

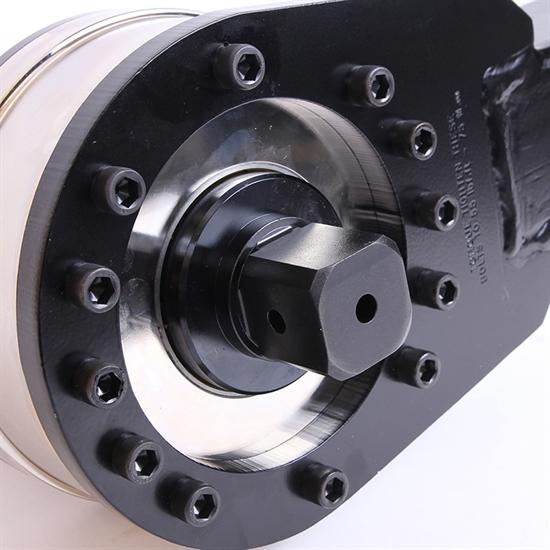

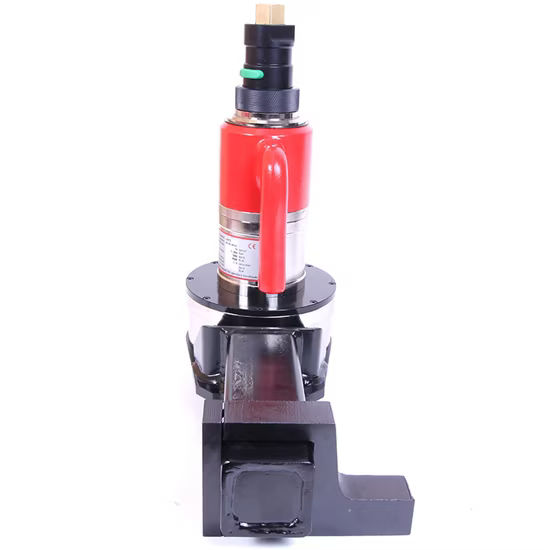

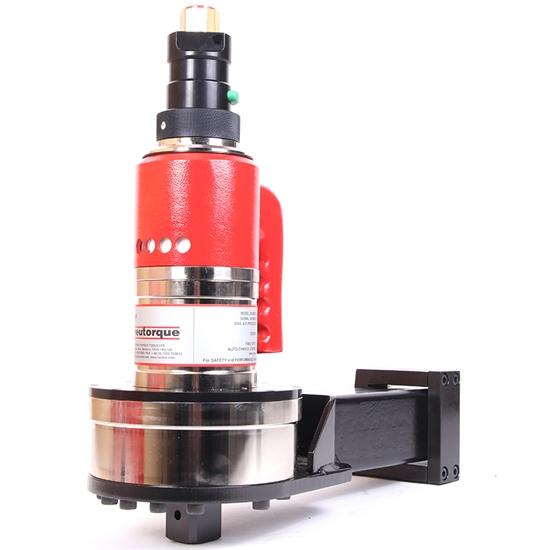

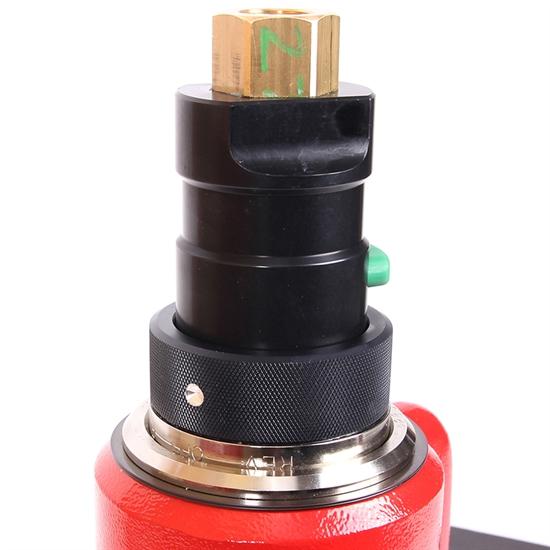

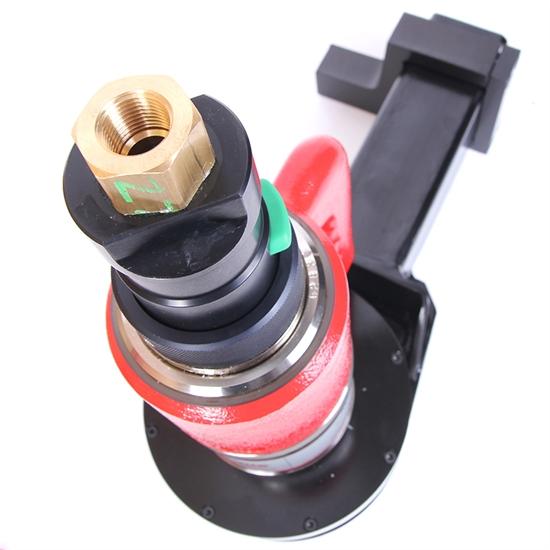

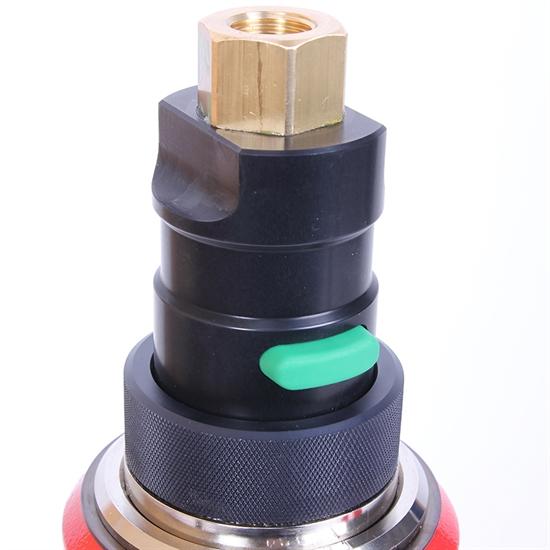

1 1/2 in. 2710 - 9500 Nm Pneumatic Torque Multiplier
$10,902.02List $12,579.26
Save $1,677.24Total$10,902.02Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
16072 | 1 1/2 in. 2710 - 9500 Nm Pneumatic Torque Multiplier16072
Total$10,902.02
1
Recommended Accessories
4 itemsAdd-on accessories that can be purchased alongside this product.
Details
Product information
Overview
Norbar 1 1/2 in. 2710 - 9500 Nm Pneumatic Torque Multiplier
16072
1 1/2 in. 2710 - 9500 Nm Pneumatic Torque Multiplier Item #16072 by Norbar, available to order online from Flexible Assembly Systems. Do you see the Norbar Pneumatic Torque Multiplier being sold at a lower price? Contact Customer Service about Price Matching!
Based on the original PneuTorque, the 'Standard Series' range is a direct result of over 30 years of refinement and development necessary to keep pace with industry's requirements today. In use on many thousands of applications worldwide, PneuTorque Wrenches continue to represent the foundation of Norbar's powered tool range.
Features
- A variety of reaction styles are available for maximum versatility.
- Electronic torque transducers can be fitted for precise torque monitoring.
- Forward and reverse operation
- Low operator fatigue - quiet, non impacting or pulsing.
- Repeatability of ±5%.
- Models available for almost every bolting application, up to 300,000 N·m.
| Technical Specifications | |
|---|---|
| Model | 16072 |
| Type | Pneumatic Torque Multiplier |
| Max Air Pressure (psi) | 72.52 |
| Manufacturer | Norbar |
| Min Torque (Ft Lb) | 2000 |
| SKU | NOR16072 |
| Max Torque (Ft Lb) | 7000 |
| Min Torque (Nm) | 2710 |
| Max Torque (Nm) | 9500 |
| Square Drive | 1 1/2 in. |
| Max Torque (Kgf m) | 965 |
| Min Torque (Kgf m) | 275 |
| Series | PneuTorques 108 Diameter |
| Weight (kg) | 24.4 |
| MPN | 16072 |
