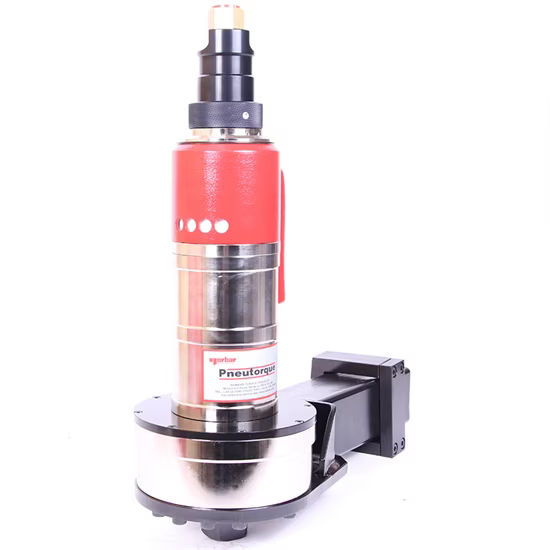

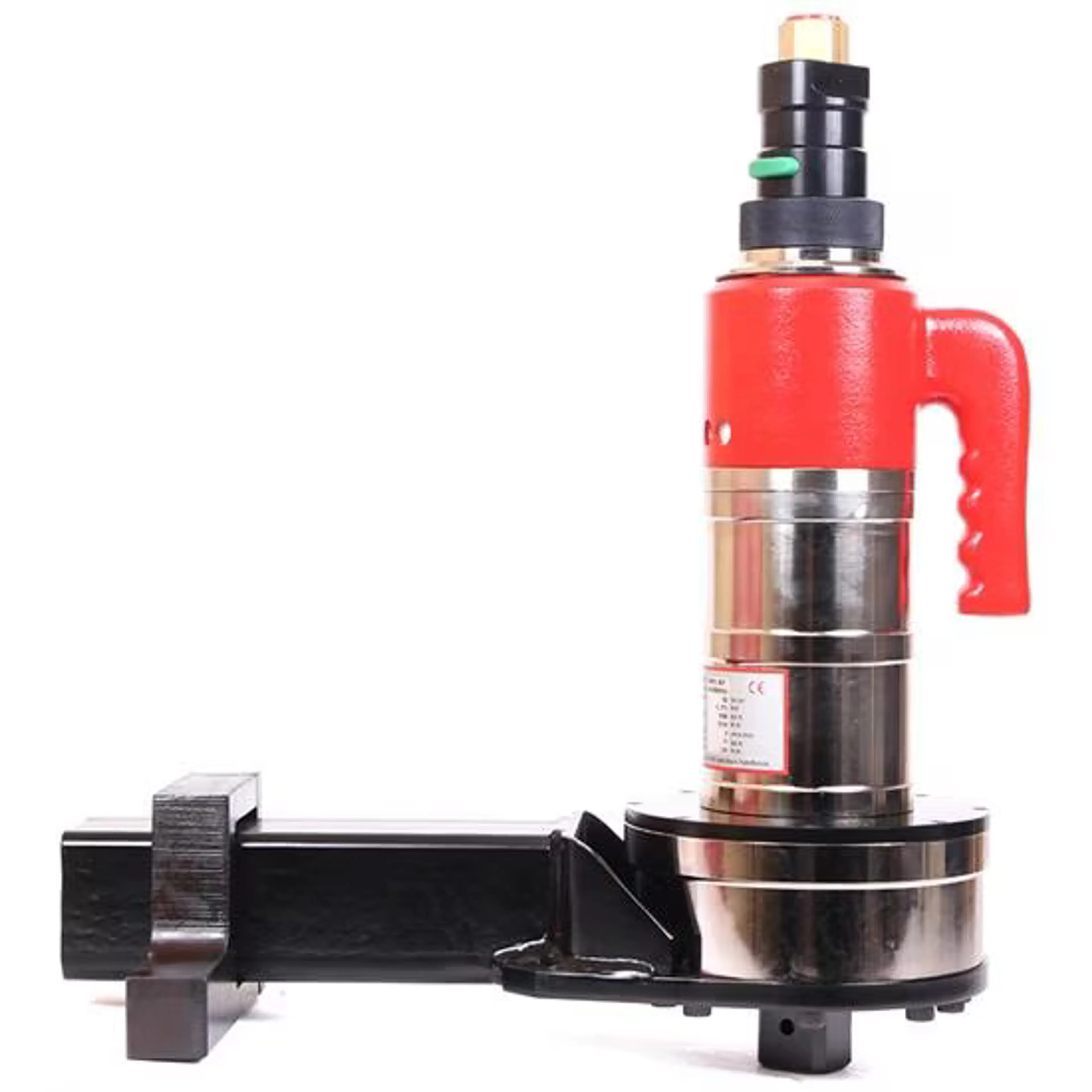

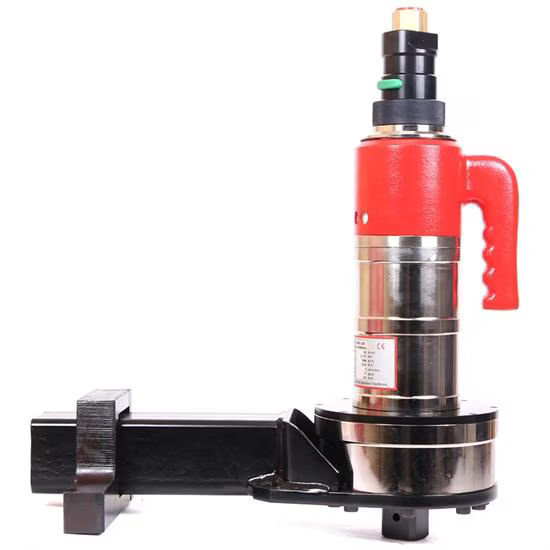

Norbar 1 1/2 in. 3100 - 9500 Nm Pneumatic Torque Multiplierwith Automatic Two Speed gearbox
16072.AUT
1 1/2 in. 3100 - 9500 Nm Pneumatic Torque Multiplierwith Automatic Two Speed gearbox Item #16072.AUT by Norbar, available to order online from Flexible Assembly Systems. Do you see the Norbar Pneumatic Torque Multiplier being sold at a lower price? Contact Customer Service about Price Matching!
Based on the original PneuTorque, the 'Standard Series' range is a direct result of over 30 years of refinement and development necessary to keep pace with industry's requirements today. In use on many thousands of applications worldwide, PneuTorque Wrenches continue to represent the foundation of Norbar's powered tool range. The Automatic Two Speed gearbox offers the same time saving advantage as the 'manual' version but requires no operator intervention. Because the Automatic gearbox changes without having to stop the tool, the tightening cycle can be completed faster.
Features
- A variety of reaction styles are available for maximum versatility.
- Electronic torque transducers can be fitted for precise torque monitoring.
- Forward and reverse operation
- Low operator fatigue - quiet, non impacting or pulsing.
- Repeatability of ±5%.
- Models available for almost every bolting application, up to 300,000 N·m.
| Technical Specifications | |
|---|---|
| Model | 16072.AUT |
| Type | Pneumatic Torque Multiplier |
| Max Air Pressure (psi) | 72.52 |
| Manufacturer | Norbar |
| Min Torque (Ft Lb) | 2286 |
| SKU | NOR16072.AUT |
| Max Torque (Ft Lb) | 700 |
| Min Torque (Nm) | 3100 |
| Max Torque (Nm) | 9500 |
| Square Drive | 1 1/2 in. |
| Series | PneuTorques 108 Diameter |
| Weight (kg) | 27.9 |
| MPN | 16072.AUT |
