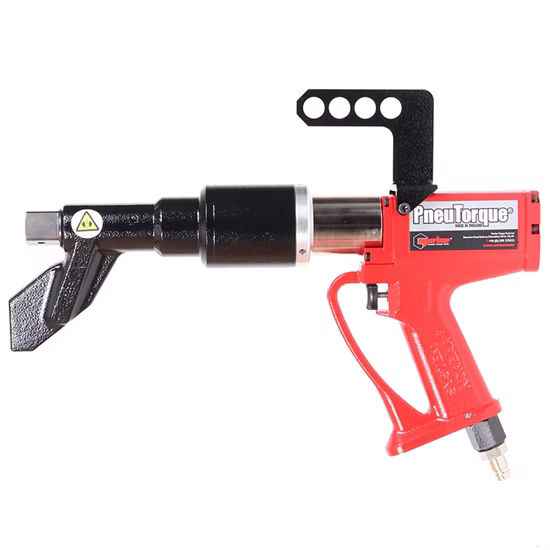

PTME-72-1000-B | 1 in. Square 1000 Nm Torque Multiplier, Bi-Directional, Stall, 140 rpm
Designed to meet the needs of the commercial vehicle wheel market. The integrated reaction foot is designed specifically to reach recessed wheel bolts and the 72mm diameter gearbox is selected to cope with the high frequency of use demanded by busy tire shops.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Recommended Accessories
7 itemsAdd-on accessories that can be purchased alongside this product.
Details
Product information
Overview
Norbar 1 in. Square 1000 Nm Torque Multiplier, Bi-Directional, Stall, 140 rpm
18149.B08
1 in. Square 1000 Nm Torque Multiplier, Bi-Directional, Stall, 140 rpm by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!
The PTME-72 series of tools was designed to meet the needs of the commercial vehicle wheel market.
The integration of electronic torque measurement and control into the PTME-72 series is achieved with the minimum impact on overall tool size and weight. The actual applied torque is accurately measured at the output of the tool meaning that a repeatability of +/-2% can be guaranteed.
Features:
- Quiet - less than 85 dB(A) when under load.
- Non impacting - low vibration levels make these tools comfortable and safe to use.
- Square drive is quickly and easily replaceable.

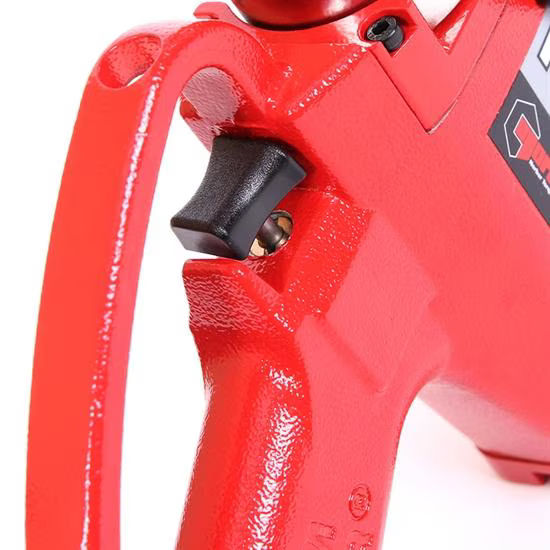

- "Soft Start" trigger controls / aids socket location and allows gradual and safe reaction location.
- For safety, gearbox can rotate independently from the handle so that reaction forces are not transmitted back to the operator.
- On Bi-Directional tools, the direction control knob is locked while the tool is running to prevent accidental damage to the gearbox.
- Light weight, for ease of handling.

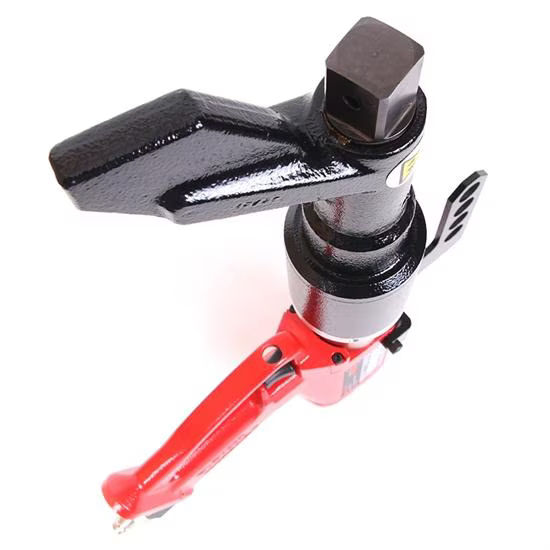

- Extended reaction is ideal for reaching recessed nuts.
| Technical Specifications | |
|---|---|
| Model | PTME-72-1000-B |
| Type | Torque Multiplier |
| Drive size | 1'' square |
| Manufacturer | Norbar |
| Length (mm) | 434.6 |
| Min Torque (Ft Lb) | 147 |
| Max Air Consumption (cfm) | 40 |
| Free Speed (RPM) | 122 |
| SKU | NOR18149.B08 |
| Style | Pistol Grip |
| Max Torque (Ft Lb) | 738 |
| Min Torque (Nm) | 200 |
| Max Torque (Nm) | 1000 |
| Direction | Bi-directional |
| Weight (lbs) | 15.8 |
| Series | PTME-72 |
| Drive Type | 1 in. Square |
| Weight (kg) | 7.2 |
| MPN | PTME-72-1000-B |
| Features & Benefits | |
| Efficient air motor | |
| Exceptionally low vibration levels | |
| Very quiet operation | |
| Light weight design | |
