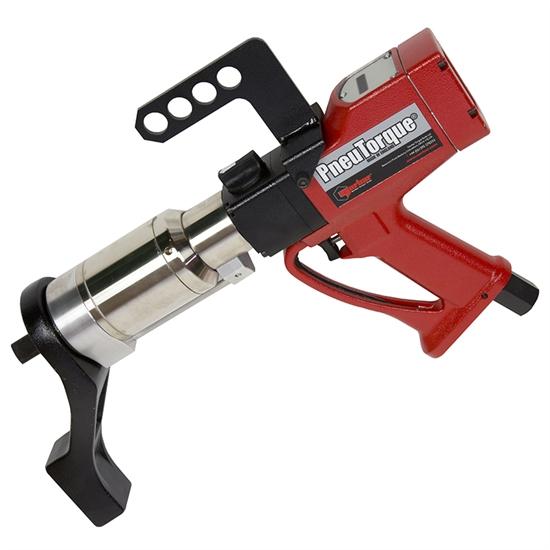

PTM-72-1350-B-EC | 1 in. Square 1000 Nm Torque Multiplier, External Control Shut Off, 86 rpm
PTM-72 tools use the same 'twin motor' handle as the PTM-52 but fitted with a durable 72mm gearbox to allow higher torque outputs. The 'twin motor' concept gives the benefit of high run-down speeds while adding very little to the size and weight of the tool.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorized service
Recommended Accessories
7 itemsAdd-on accessories that can be purchased alongside this product.
Details
Product information
Overview
Norbar 1 in. Square 1000 Nm Torque Multiplier, External Control Shut Off, 86 rpm
18123.B08
1 in. Square 1000 Nm Torque Multiplier, External Control Shut Off, 86 rpm by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!
PTM-72 tools use the same 'twin motor' handle as the PTM-52 but fitted with a durable 72mm gearbox to allow higher torque outputs. The 'twin motor' concept gives the benefit of high run-down speeds while adding very little to the size and weight of the tool.
| Technical Specifications | |
|---|---|
| Model | PTM-72-1350-B-EC |
| Type | Torque Multiplier |
| Drive size | 1'' square |
| Max Air Pressure (psi) | 91 |
| Manufacturer | Norbar |
| Length (mm) | 422 |
| Min Torque (Ft Lb) | 200 |
| Free Speed (RPM) | 86 |
| SKU | 18123.B08 |
| Style | Pistol Grip |
| Clutch Type | External Control |
| Max Torque (Ft Lb) | 1000 |
| Min Torque (Nm) | 270 |
| Max Torque (Nm) | 1350 |
| Direction | Bi-directional |
| Weight (lbs) | 16.3 |
| Series | PTM-72 |
| Drive Type | 1 in. Square |
| Weight (kg) | 7.4 |
| MPN | PTM-72-1350-B-EC |
| Features & Benefits | |
| Efficient air motor | |
| Exceptionally low vibration levels | |
| Very quiet operation | |
| Light weight design | |
