Norbar 180245.B08 | PTS-72-2000 | 1 in. Square 2000 Nm Torque Multiplier, 9.2 rpm

Rating:
(0)No Reviews yet
$5,144.79
Norbar

Details

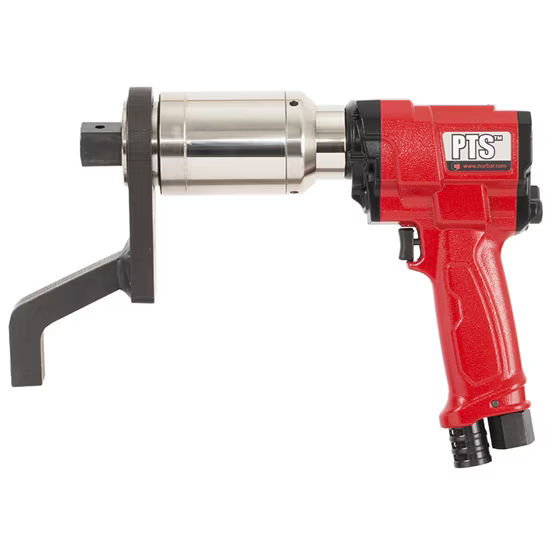

Norbar 1 in. Square 2000 Nm Torque Multiplier, 9.2 rpm

180245.B08

1 in. Square 2000 Nm Torque Multiplier, 9.2 rpm by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!

The PTS is the result of an extensive design project to produce an efficient air motor, purpose built for this application in an accurate torque tool. The new air motor is then married to Norbar's respected gearbox range, sharing common torque reaction accessories with PTM and EvoTorque tools.

Features:
  • Designed to offer excellent power-to-weight ratio
  • Up to 2.5kg weight saving compared with PT equivalents
  • Easily accessible switch for forward and reverse operation
  • ±5% repeatability of reading from 20% to 100% of range
  • Air coupling designed for safety and rapid operation
  • Directional exhaust barrel directs exhaust away from operator
  • Replaceable square drive
  • Fast operation for rapid bolt rundown. Up to 60% faster than PT-72 model
  • Non impacting - low vibration levels for comfortable and safe use
  • Steel reactions supplied as standard. Bespoke reactions available
  • Very quiet operation - reducing the need for protection with sound pressure levels from 77dB(A) to 79dB(A)

The PTS is the result of an extensive design project to produce an efficient air motor, purpose built for this application in an accurate torque tool.

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.


Features & Benefits

  • Single efficient bi-directional air motor
  • Exceptionally low vibration levels
  • Light weight design
  • Very quiet operation

Technical Information

Technical Specifications

Technical Specifications

SKU: 180245.B08-norbar
Manufacturer Norbar
Model PTS-72-2000
Drive size 1'' square
Drive Type 1 in. Square
Free Speed (RPM) 9.2
Length (mm) 352
Max Air Pressure (psi) 94
Series PTS-72
Torque Range (Ft Lbs) 295 - 1475
Torque Range (Nm) 400 - 2000
Type Torque Multiplier
Weight14.5 lbs

We strive to provide as much technical information as possible. If you need more tech data, let us know!
