Norbar 1 in. Square 2700 Nm Torque Multiplier kit, 3/4 in. input, 5:1
17221
1 in. Square 2700 Nm Torque Multiplier kit, 3/4 in. input, 5:1 by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!

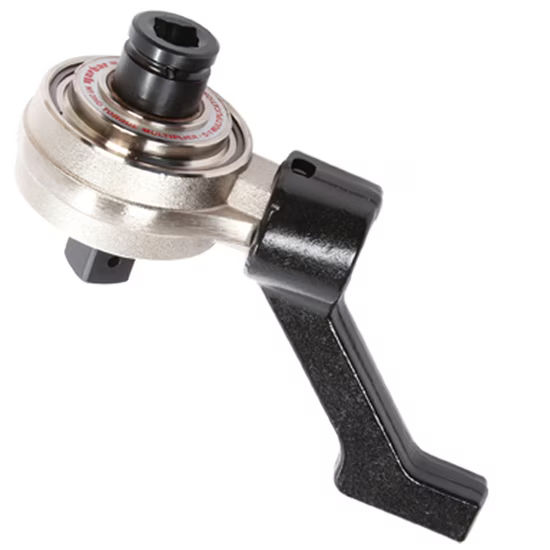

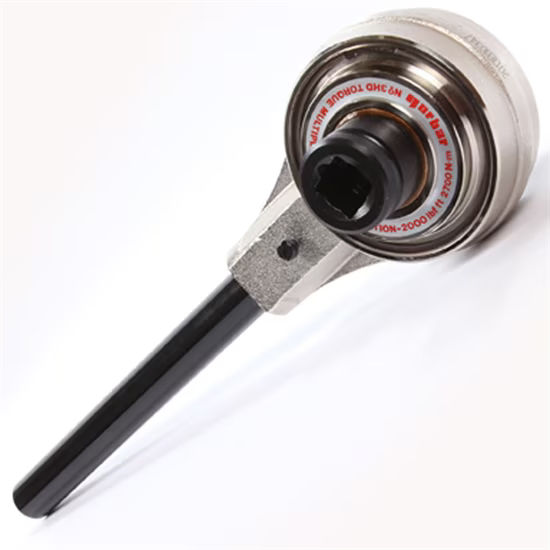

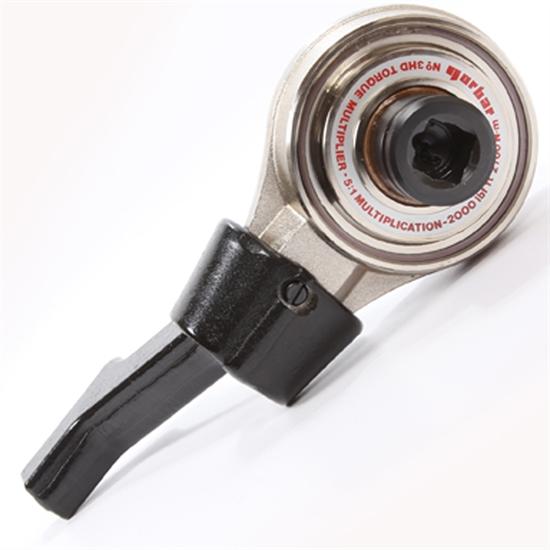

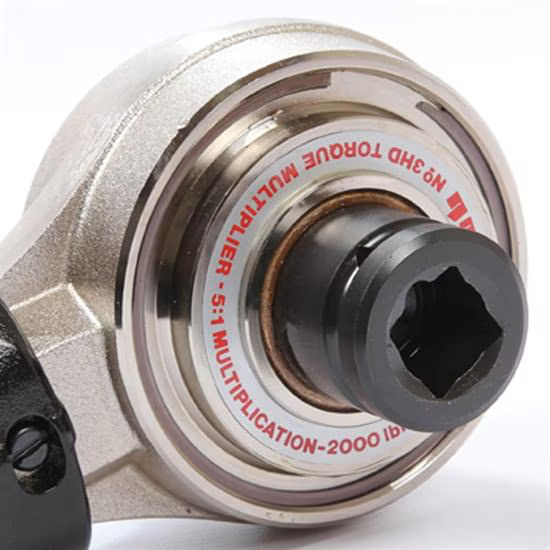

The 'Highwayman' torque multiplier has been designed for use where it is necessary to provide higher torques than would otherwise be possible due to limitations of space or operator strength. Input to the multiplier is via a ratchet torque wrench set to one fifth of the desired output torque.
Features:
- 5:1 torque multiplication, accuracy guaranteed better than +/-4%.
- Supplied with two reaction bar styles for maximum versatility.
- Robust construction means minimal maintenance and long life.

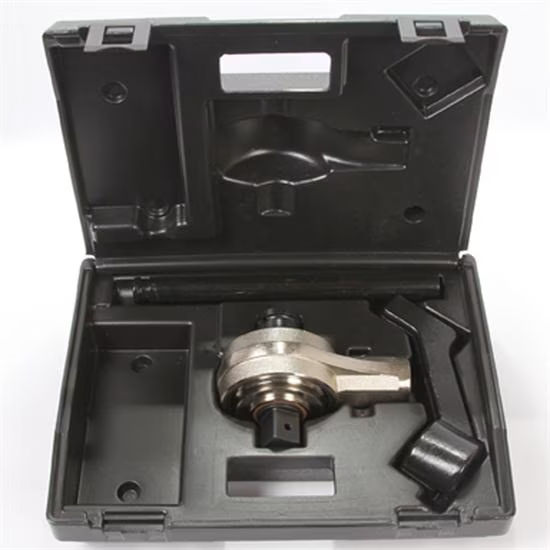

- Supplied in a carrying case, the Highwayman is ideal for inclusion in the heavy vehicle kit.
| Technical Specifications | |
|---|---|
| Model | HT3 2700 |
| Type | Torque Multiplier |
| Drive size | 3/4'' square |
| Manufacturer | Norbar |
| Length (mm) | 210 |
| SKU | NOR17221 |
| Max Torque (Ft Lb) | 2000 |
| Min Torque (Nm) | 270 |
| Max Torque (Nm) | 2700 |
| Input Drive (In) | 3/4'' square |
| Output Drive (In) | 1'' square |
| Weight (lbs) | 1.7 |
| Ratio | 5:1 |
| Series | HT3 |
| Drive Type | 1 in. Square |
| Weight (kg) | 3.8 |
| MPN | HT3 2700 |
| Features & Benefits | |
| Robust construction means minimal maintenance and long life. | |
| 5:1 torque multiplication, accuracy guaranteed better than ±4%. | |
