Norbar18003
1 in. Square 3000 Nm Torque Multiplier, 3/4 in. input, 5:1
HandTorque models HT30 and 60 have all the features of the standard series, but have a higher torque output for a given gearbox diameter.
$2,759.08List $3,153.23
Save $394.15Total$2,759.08Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorized service
18003 | 1 in. Square 3000 Nm Torque Multiplier, 3/4 in. input, 5:118003
Total$2,759.08
1
Details
Product information
Overview

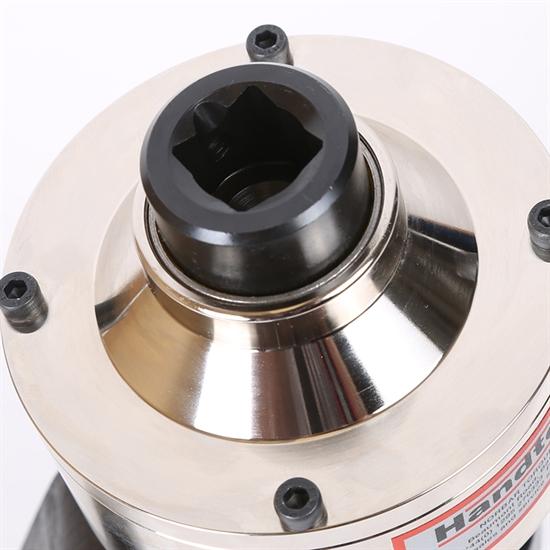

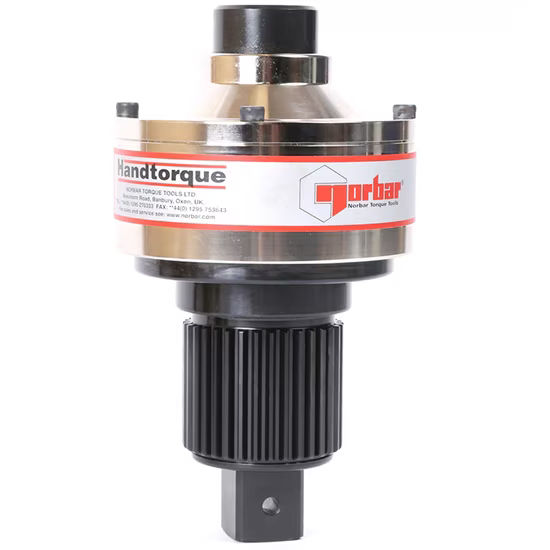

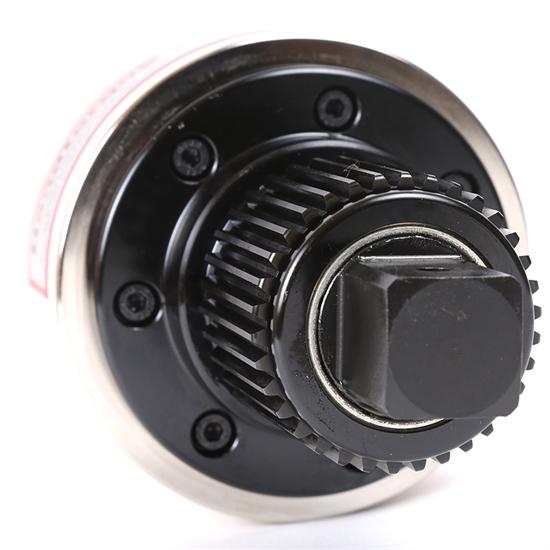

Norbar 1 in. Square 3000 Nm Torque Multiplier, 3/4 in. input, 5:1
18003
1 in. Square 3000 Nm Torque Multiplier, 3/4 in. input, 5:1 by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!
HandTorque models HT30 and 60 have all the features of the standard series, but have a higher torque output for a given gearbox diameter.
Features:
- Reduced diameter allows better access, particularly on pipe flanges.
- Reaction taken from high strength spline.
- Reaction foot can slide on the spline to allow for sockets of various lengths.
- Anti Wind-Up Ratchet available on all models (except 5:1 ratios), allowing safer and more practical operation.
- HT45 has integral angle protractor for easy torque and angle tightening.
| Technical Specifications | |
|---|---|
| Model | 18003 |
| Type | Torque Multiplier |
| Drive size | 3/4'' square |
| Manufacturer | Norbar |
| SKU | 18003 |
| Max Torque (Ft Lb) | 2200 |
| Min Torque (Nm) | 300 |
| Max Torque (Nm) | 3000 |
| Input Drive (In) | 3/4 |
| Weight (lbs) | 11.02 |
| Ratio | 5:1 |
| Series | Small Diameter HT30 |
| Drive Type | 1 in. Square |
| Weight (kg) | 5 |
| MPN | 18003 |
| Features & Benefits | |
| High ratios allow the use of a small torque wrench,multipliers can be used where access is limited. | |
| True torque multiplication guaranteed better than ±4%. | |
