15106 | 14 x 18mm 220 Ft lb Adjustable Torque Wrench, Female
Overview
Norbar 14 x 18mm 220 Ft lb Adjustable Torque Wrench, Female
15106
14 x 18mm 220 Ft lb Adjustable Torque Wrench, Female by Norbar, available to order online on FlexibleAssembly.com. Do you see the 15106 Adjustable Torque Wrench available for a lower price than what we're advertising? Contact Customer Service to price match!
Norbar Torque Handles are based on the "Professional" wrench range and share the same high precision engineering. The Female End versions are either 9 x 12 mm or 14 x 18 mm rectangular type. For many applications a spanner end fitting rather than a socket is the best or, often, the only solution. Typically this will be because the joint is a pipe union; such as a brake pipe.
Features:- Factory calibrated to ±3% and our new mechanism ensures that the accuracy is retained for longer.
- Every wrench is supplied with a calibration certificate
- Ergonomic new handle with a high proportion of soft-feel, high grip material.
- Handle material and lens resist all chemicals in common automotive, industrial and aviation use.
- Secure push/pull locking mechanism is quick and intuitive to use and prevents accidental adjustment.

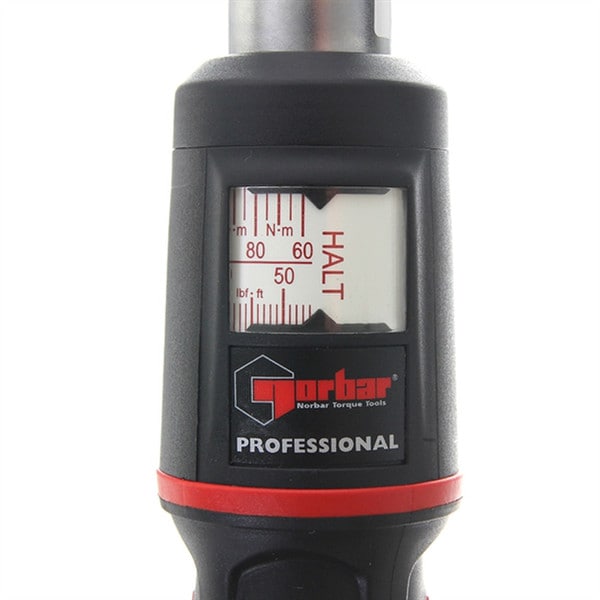

- Large scale window and long scale length for great visibility and accurate setting.
- Unique on a torque wrench, the TimeStrip® gives a visual indication that the wrench is due for re-calibration.
Technical Specifications
Model
15106
Type
Adjustable Torque Wrench
Drive size
14 x 18 mm
Wrench Type
Dual Scale, Female Handle, Adjustable Torque Wrench
Manufacturer
Norbar
Length (mm)
570
Min Torque (Ft Lb)
45
SKU
NOR15106
Max Torque (Ft Lb)
220
Min Torque (Nm)
60
Max Torque (Nm)
300
Weight (lbs)
2.58
Handle Type
Female
Series
Professional
Drive Type
14 x 18mm
Weight (kg)
1.17
Accuracy
±
Technical Documents
- Norbar 14 x 18mm 220 Ft lb Adjustable Torque Wrench, Female Parts Breakdown (PDF)
- Norbar 14 x 18mm 220 Ft lb Adjustable Torque Wrench, Female Operator's Manual (PDF)
- Norbar Professional Series Adjustable Torque Wrench Brochure (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
