15064 | 16mm spigot 200 Nm Adjustable Torque Handle
Overview

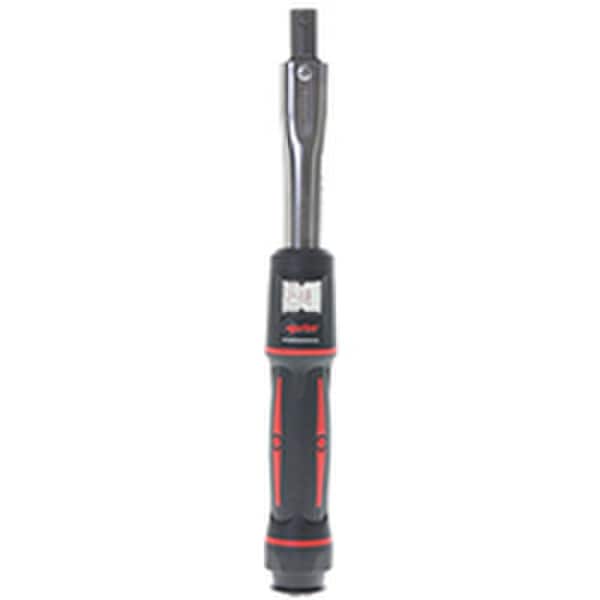

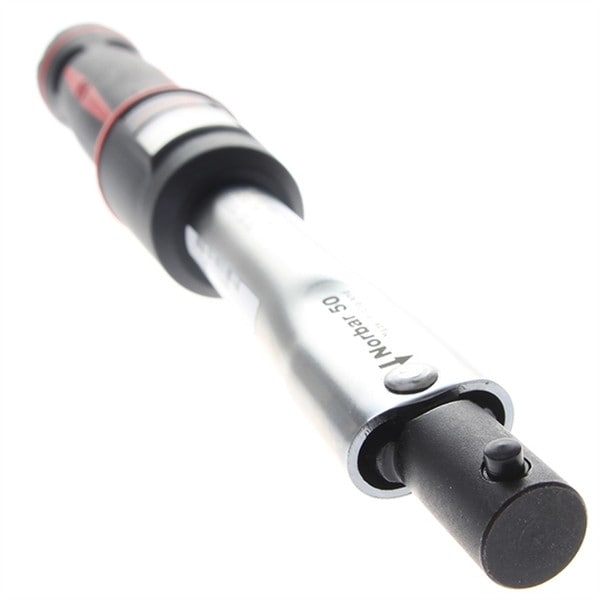

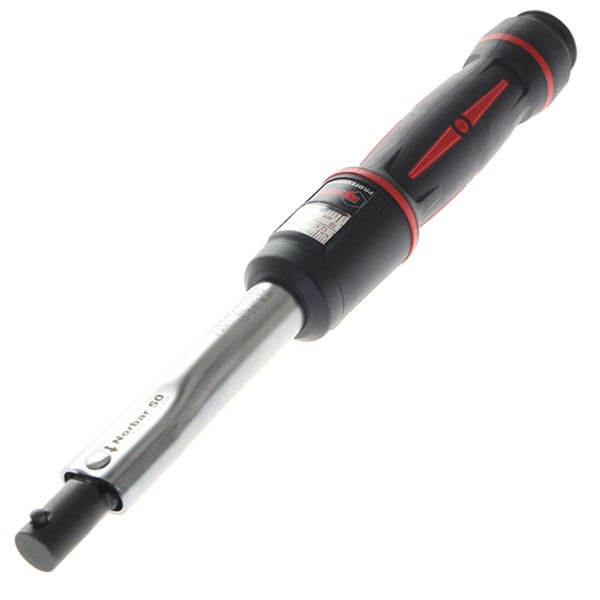

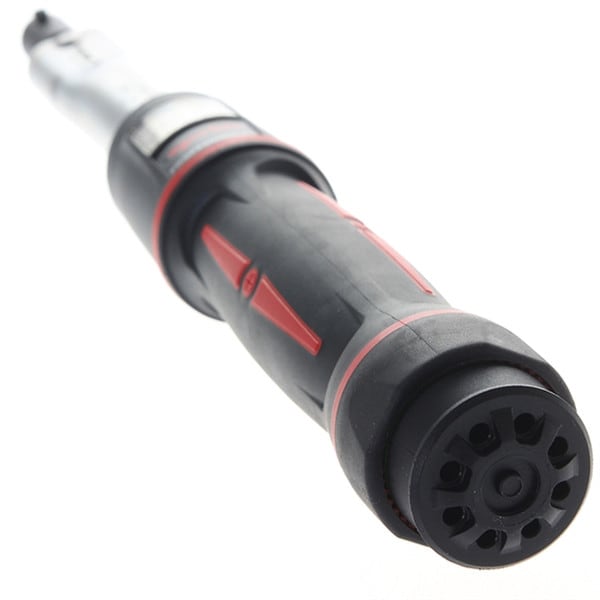

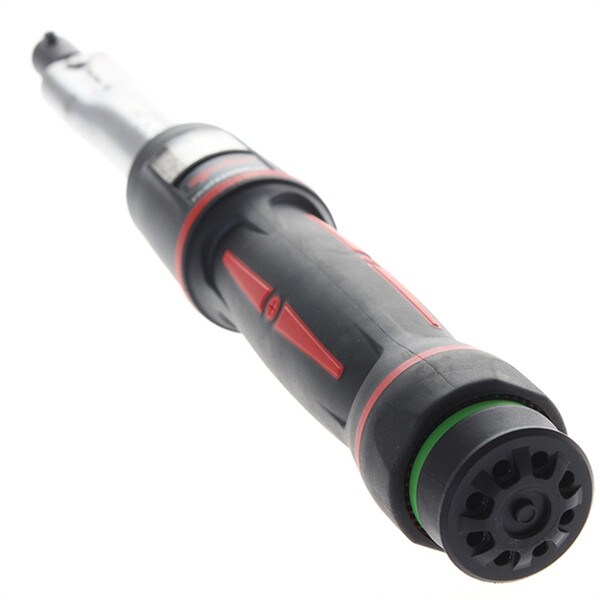

Norbar 16mm spigot 200 Nm Adjustable Torque Handle
15064
16mm spigot 200 Nm Adjustable Torque Handle by Norbar, available to order online on FlexibleAssembly.com. Do you see the 15064 Adjustable Torque Handle available for a lower price than what we're advertising? Contact Customer Service to price match!
The New Professional torque handle has been re-engineered to be even more accurate, durable and easy to use.

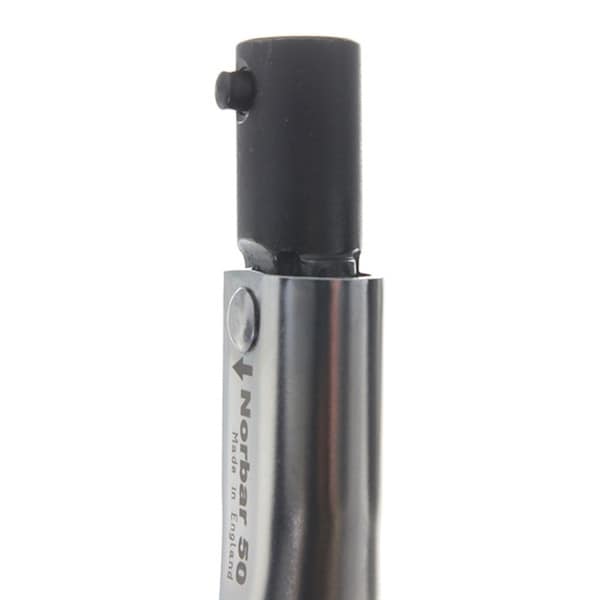

The square drive features a finger grip on the top ('mushroom' head) that assists with running down the nut until resistance is met.
Features:- Factory calibrated to ±3% and our new mechanism ensures that the accuracy is retained for longer.
- Ergonomic new handle with a high proportion of soft-feel, high grip material.
- Handle material and lens resist all chemicals in common automotive, industrial and aviation use.
- Secure push/pull locking mechanism is quick and intuitive to use and prevents accidental adjustment.

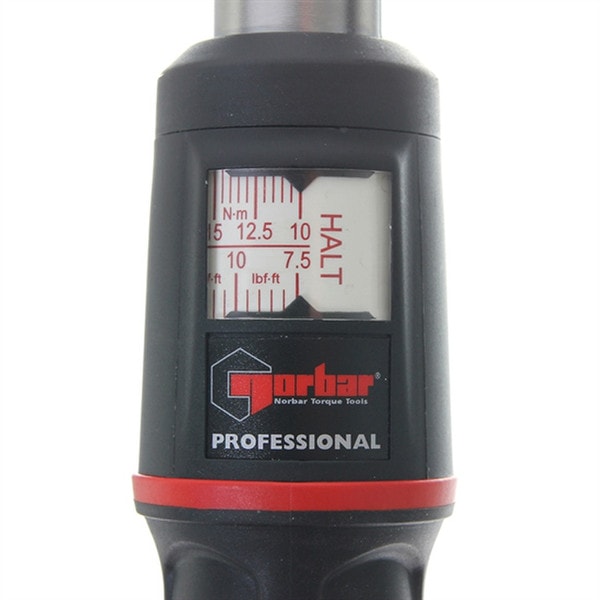

- Large scale window and long scale length for great visibility and accurate setting.
Technical Specifications
Model
15064
Type
Adjustable Torque Handle
Drive size
16 mm
Wrench Type
Dual Scale, Adjustable
Manufacturer
Norbar
Length (mm)
445
SKU
NOR15064
Min Torque (In Lb)
30
Max Torque (In Lb)
150
Min Torque (Nm)
40
Max Torque (Nm)
200
Weight (lbs)
1.87
Series
Professional
Drive Type
16mm spigot
Weight (kg)
0.85
Accuracy
± 3%
Technical Documents
Norbar 16mm spigot 200 Nm Adjustable Torque Wrench Parts Breakdown (PDF)- Norbar 16mm spigot 200 Nm Adjustable Torque Wrench Operator's Manual (PDF)
- Norbar Professional Series Adjustable Torque Wrench Brochure (PDF)
