Norbar29963.22
22mm Open End Fitting, 22mm spigot, 0 - 225 Nm range
29963.22 | 22mm Open End Fitting, 22mm spigot, 0 - 225 Nm range
$200.30List $231.12
Save $30.82Total$200.30Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
29963.22 | 22mm Open End Fitting, 22mm spigot, 0 - 225 Nm range29963.22
Total$200.30
1
Details
Product information
Overview

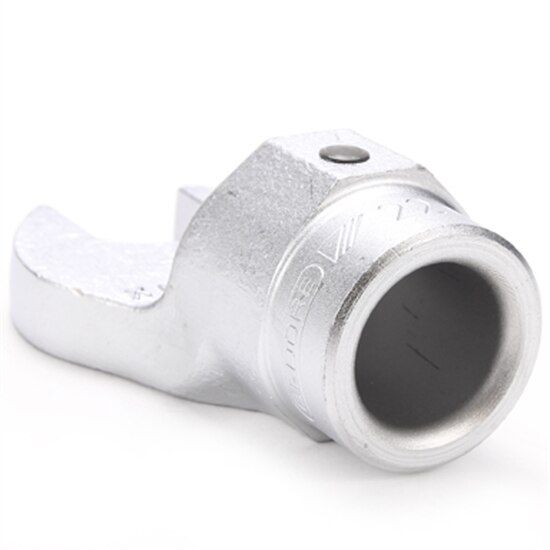

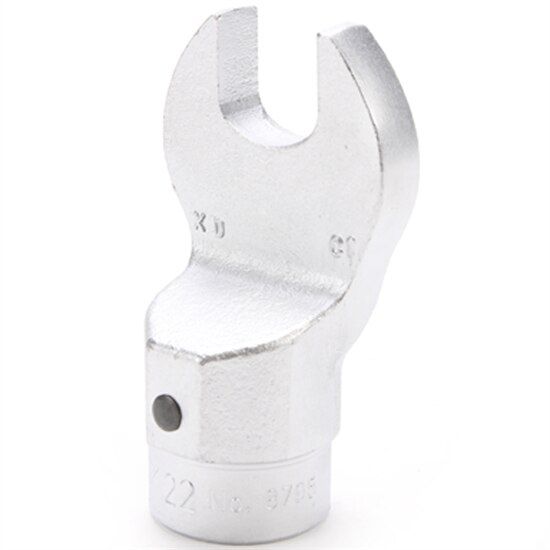

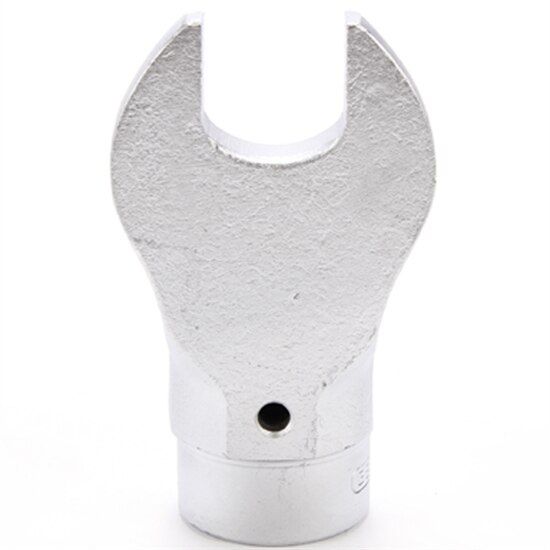

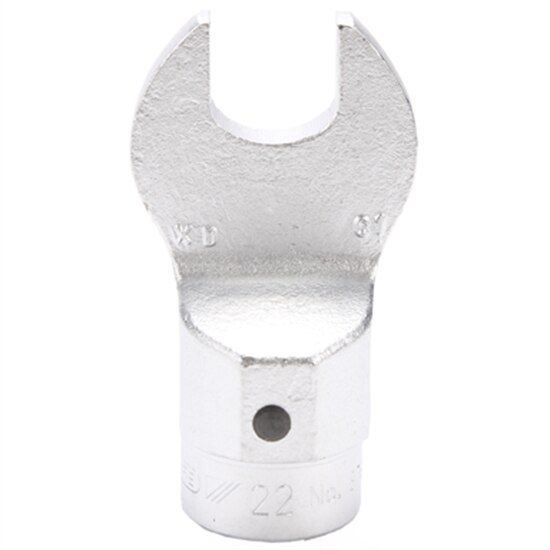

Norbar 22mm Open End Fitting, 22mm spigot, 0 - 225 Nm range
29963.22
22mm Open End Fitting, 22mm spigot, 0 - 225 Nm range by Norbar. Available to order from Flexible Assembly.com. Do you see this Open End Fitting online at a lower price? Contact Customer Service to price match!
Spanner end fittings are designed to suit Norbar 22mm diameter spigot ended torque handles.
Features:
- Forged alloy steel.
- Ends easily interchangeable.
- Torque Handle calibrated to give correct torque at nut/bolt.
- Available in: Open Ends, Ring Ends, Flare Ends, Reversible 3/8" and 1/2" ratchets, Push through 3/8" and 1/2" ratchets and Fixed 3/8" and 1/2" square.
- Open, Ring and Flare Ends available in Metric and Imperial sizes.
- Blank end adaptors are available for applications where customised spanners are required.
| Technical Specifications | |
|---|---|
| Torque Range | 0 - 225 Nm |
| Type | Open End Fitting |
| Drive size | 22mm |
| Manufacturer | Norbar |
| SKU | NOR29963.22 |
| Max Torque (Nm) | 225 |
| Series | 650 Professional, Industrial |
| Drive Type | 22mm spigot |
| MPN | 29963.22 |
