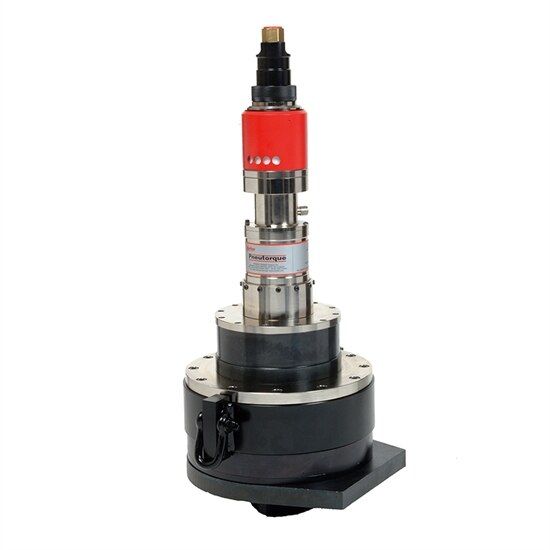

Norbar 3 1/2 in. 22375 - 100000 Nm Pneumatic Torque Multiplier with manual two speed gearbox
16045.MTS
3 1/2 in. 22375 - 100000 Nm Pneumatic Torque Multiplier with manual two speed gearbox Item #16045.MTS by Norbar, available to order online from Flexible Assembly Systems. Do you see the Norbar Pneumatic Torque Multiplier being sold at a lower price? Contact Customer Service about Price Matching!
Based on the original PneuTorque, the 'Standard Series' range is a direct result of over 30 years of refinement and development necessary to keep pace with industry's requirements today. In use on many thousands of applications worldwide, PneuTorque Wrenches continue to represent the foundation of Norbar's powered tool range. The Manual Two Speed gearbox allows the PneuTorque operator to run down a nut at 5 times normal operating speed before manually changing gear to apply the specified torque. This can considerably reduce the cycle time for each joint.
Features
- Electronic torque transducers can be fitted for precise torque monitoring.
- Forward and reverse operation.
- Low operator fatigue - quiet, non impacting or pulsing.
- Repeatability of ±5%.
- Models available for almost every bolting application, up to 300,000 N·m.
- Supplied with a blank reaction plate for fabrication to specific requirements.
| Technical Specifications | |
|---|---|
| Model | 16045.MTS |
| Type | Pneumatic Torque Multiplier |
| Max Air Pressure (psi) | 75.42 |
| Manufacturer | Norbar |
| Min Torque (Ft Lb) | 16500 |
| SKU | NOR16045.MTS |
| Max Torque (Ft Lb) | 73500 |
| Min Torque (Nm) | 22375 |
| Max Torque (Nm) | 100000 |
| Square Drive | 3 1/2 in. |
| Max Torque (Kgf m) | 10000 |
| Min Torque (Kgf m) | 2280 |
| Series | PneuTorques 108 Diameter |
| Weight (kg) | 122.9 |
| MPN | 16045.MTS |
