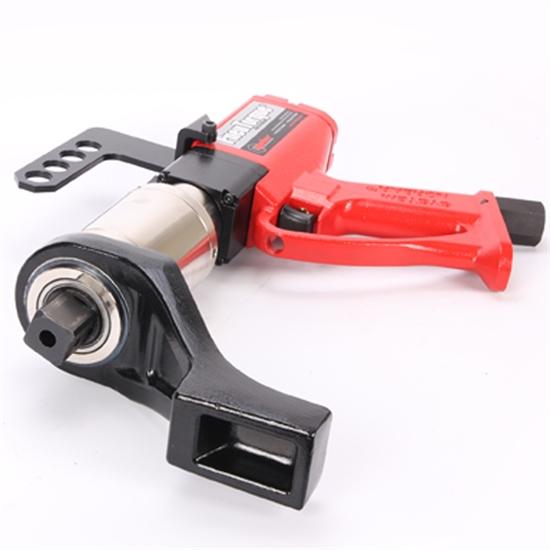

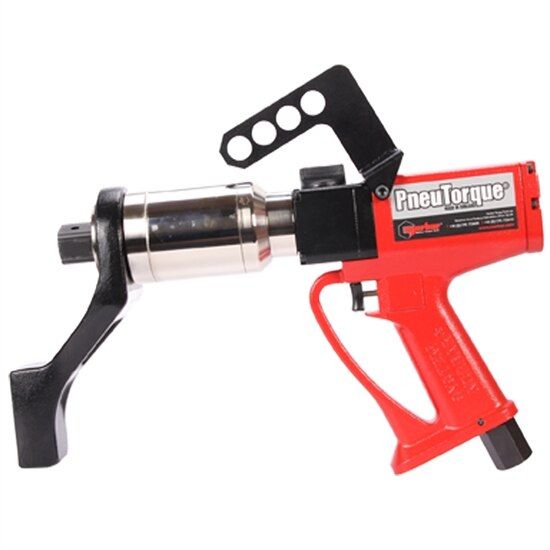

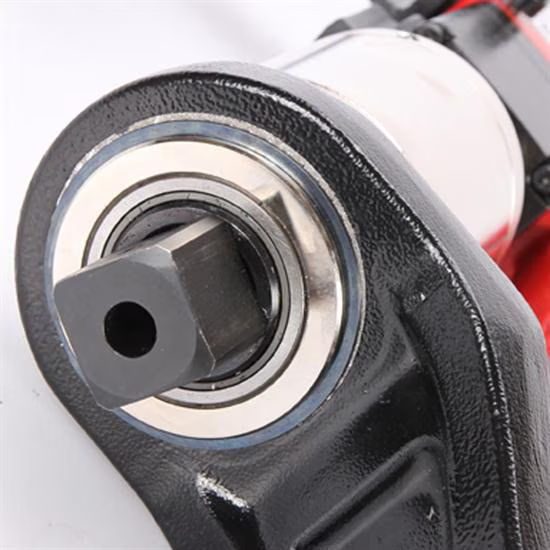

PTM-72-1000-B | 3/4 in. Square 1000 Nm Torque Multiplier, Bi-Directional, Stall, 122 rpm

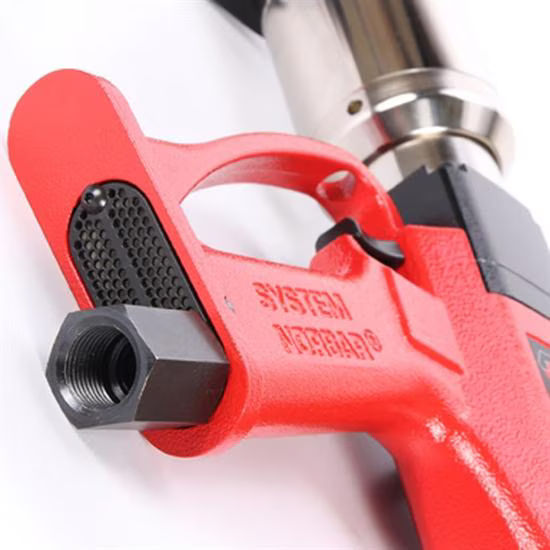

PTM-72 tools use the same 'twin motor' handle as the PTM-52 but fitted with a durable 72mm gearbox to allow higher torque outputs. The 'twin motor' concept gives the benefit of high run-down speeds while adding very little to the size and weight of the tool.
- Free UPS Ground over $999.99
- Factory-authorized service
Recommended Accessories
7 itemsAdd-on accessories that can be purchased alongside this product.
Details
Product information
Overview
Norbar 3/4 in. Square 1000 Nm Torque Multiplier, Bi-Directional, Stall, 122 rpm
18102.B06
3/4 in. Square 1000 Nm Torque Multiplier, Bi-Directional, Stall, 122 rpm by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!
PTM-72 tools use the same 'twin motor' handle as the PTM-52 but fitted with a durable 72mm gearbox to allow higher torque outputs. The 'twin motor' concept gives the benefit of high run-down speeds while adding very little to the size and weight of the tool.
| Technical Specifications | |
|---|---|
| Model | PTM-72-1000-B |
| Type | Torque Multiplier |
| Drive size | 3/4'' square |
| Max Air Pressure (psi) | 91 |
| Manufacturer | Norbar |
| Length (mm) | 365 |
| Min Torque (Ft Lb) | 147 |
| Free Speed (RPM) | 122 |
| SKU | NOR18102.B06 |
| Style | Pistol Grip |
| Max Torque (Ft Lb) | 738 |
| Min Torque (Nm) | 200 |
| Max Torque (Nm) | 1000 |
| Direction | Bi-directional |
| Weight (lbs) | 13.4 |
| Series | PTM-72 |
| Drive Type | 3/4 in. Square |
| Weight (kg) | 6.1 |
| MPN | PTM-72-1000-B |
| Features & Benefits | |
| Efficient air motor | |
| Exceptionally low vibration levels | |
| Very quiet operation | |
| Light weight design | |
