Norbar 18102.F06 | PTM-72-1000-F | 3/4 in. Square 1000 Nm Torque Multiplier, Forward, Stall, 122 rpm

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.


Norbar 18102.F06 | PTM-72-1000-F | 3/4 in. Square 1000 Nm Torque Multiplier, Forward, Stall, 122 rpm

$5,914.53
Norbar

Details

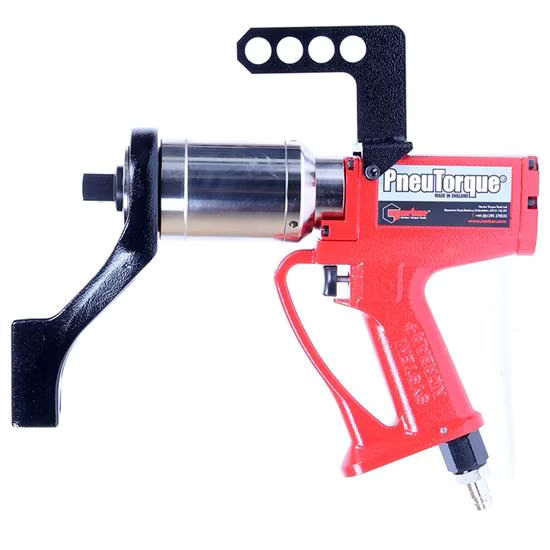

Norbar 3/4 in. Square 1000 Nm Torque Multiplier, Forward, Stall, 122 rpm

18102.F06

3/4 in. Square 1000 Nm Torque Multiplier, Forward, Stall, 122 rpm by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!

PTM-72 tools use the same 'twin motor' handle as the PTM-52 but fitted with a durable 72mm gearbox to allow higher torque outputs. The 'twin motor' concept gives the benefit of high run-down speeds while adding very little to the size and weight of the tool.

PTM-72 tools use the same 'twin motor' handle as the PTM-52 but fitted with a durable 72mm gearbox to allow higher torque outputs. The 'twin motor' concept gives the benefit of high run-down speeds while adding very little to the size and weight of the tool.

Warning: California Proposition 65

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.


Features & Benefits

  • Efficient air motor
  • Exceptionally low vibration levels
  • Light weight design
  • Very quiet operation

Technical Information

Technical Specifications

Technical Specifications

SKU: 18102.F06-norbar
Manufacturer Norbar
Model PTM-72-1000-F
Drive size 3/4'' square
Drive Type 3/4 in. Square
Free Speed (RPM) 122
Length (mm) 316
Max Air Pressure (psi) 91
Series PTM-72
Torque Range (Ft Lbs) 147 - 738
Torque Range (Nm) 200 - 1000
Type Torque Multiplier
Weight12.8 lbs

We strive to provide as much technical information as possible. If you need more tech data, let us know!

Technical Documents

Norbar Pneutorque PTM Series Torque Multipliers Operator Manual (PDF)
Norbar Pneutorque PTM 72 Series Torque Multipliers Brochure (PDF)

We are always wanting to provide more information! In need of a technical document? Let us know!
