Norbar180260

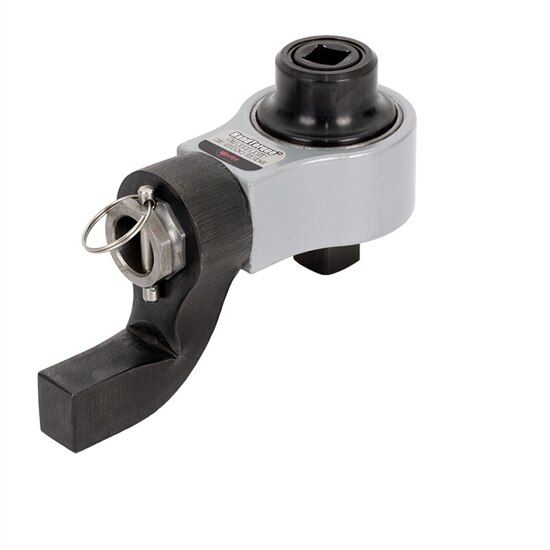

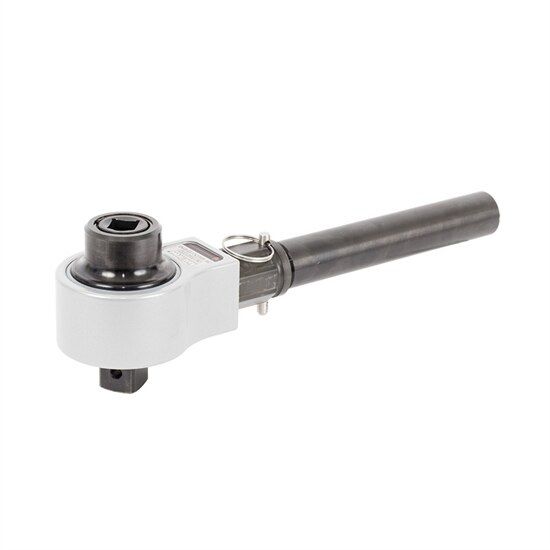

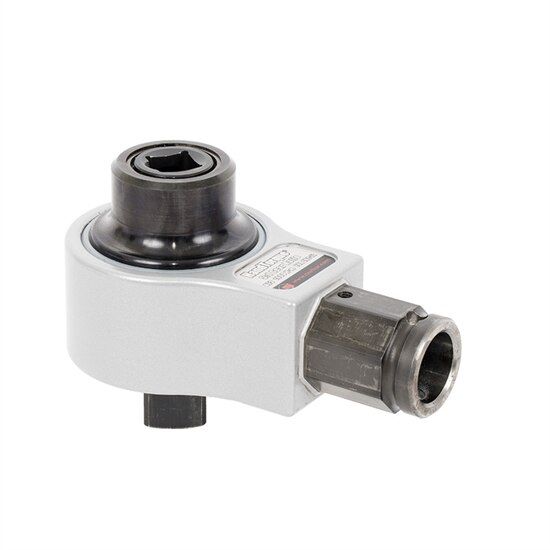

3/4 in. Square 1000 Nm Torque Multiplier kit, 1/2 in. input, 5:1

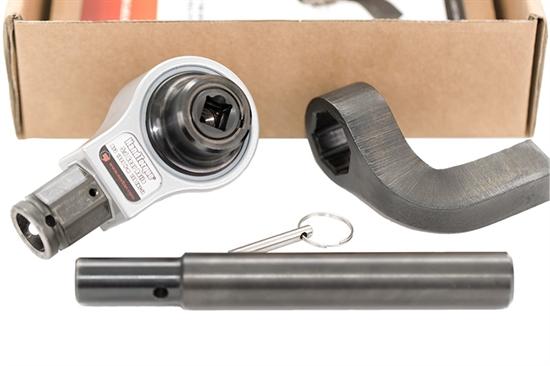

Supplied with two reaction bar styles for maximum versatility. Ideal for inclusion in the heavy vehicle tool kit
$1,009.82List $1,154.08
Save $144.26Total$1,009.82Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorized service
180260 | 3/4 in. Square 1000 Nm Torque Multiplier kit, 1/2 in. input, 5:1180260
Total$1,009.82
1
Details
Product information
Overview
Norbar 3/4 in. Square 1000 Nm Torque Multiplier kit, 1/2 in. input, 5:1
180260
3/4 in. Square 1000 Nm Torque Multiplier kit, 1/2 in. input, 5:1 by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!
The HandTorque HT3-1000 has been designed for use where it is necessary to provide higher torques than would otherwise be possible due to limitations of space or operator strength. Input to the multiplier is via a ratchet torque wrench set to one fifth of the desired output torque.
Features:
- Quick change cranked reaction with improved flexibility allowing reaction in 8 orientations
- Robust construction means minimal maintenance and long life
- Small and compact design
- Supplied with 2 reaction bar styles for maximum versatility
| Technical Specifications | |
|---|---|
| Model | 180260 |
| Type | Torque Multiplier |
| Drive size | 3/4'' square |
| Manufacturer | Norbar |
| SKU | NOR180260 |
| Max Torque (Ft Lb) | 738 |
| Min Torque (Nm) | 100 |
| Max Torque (Nm) | 1000 |
| Input Drive (In) | 1/2 |
| Weight (lbs) | 5.95 |
| Ratio | 5:1 |
| Series | HT3-1000 |
| Drive Type | 3/4 in. Square |
| Weight (kg) | 2.7 |
| MPN | 180260 |
| Features & Benefits | |
| Robust construction means minimal maintenance and long life. | |
| 5:1 torque multiplication, accuracy guaranteed better than ±4%. | |
