Norbar 17220 | HT3 1300 | 3/4 in. Square 1300 Nm Torque Multiplier kit, 1/2 in. input, 5:1

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Norbar 17220 | HT3 1300 | 3/4 in. Square 1300 Nm Torque Multiplier kit, 1/2 in. input, 5:1

$923.77
Norbar

Details

Norbar 3/4 in. Square 1300 Nm Torque Multiplier kit, 1/2 in. input, 5:1

17220

3/4 in. Square 1300 Nm Torque Multiplier kit, 1/2 in. input, 5:1 by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!

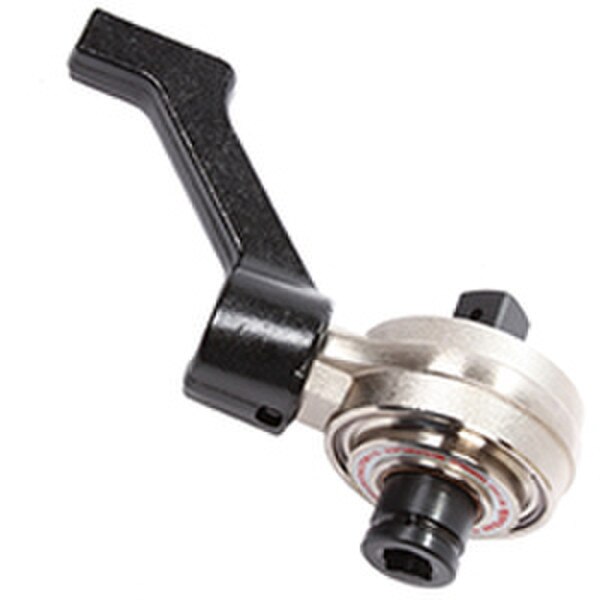

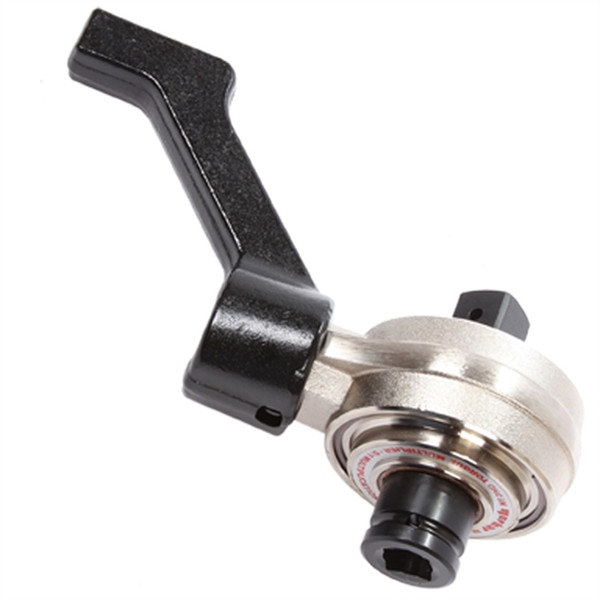

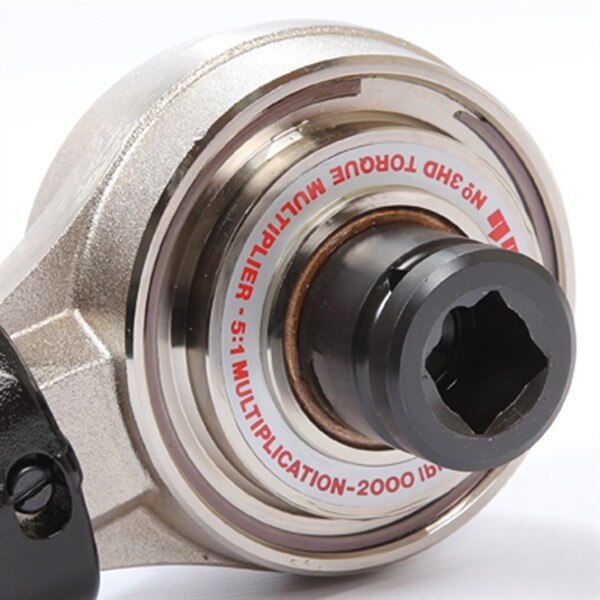

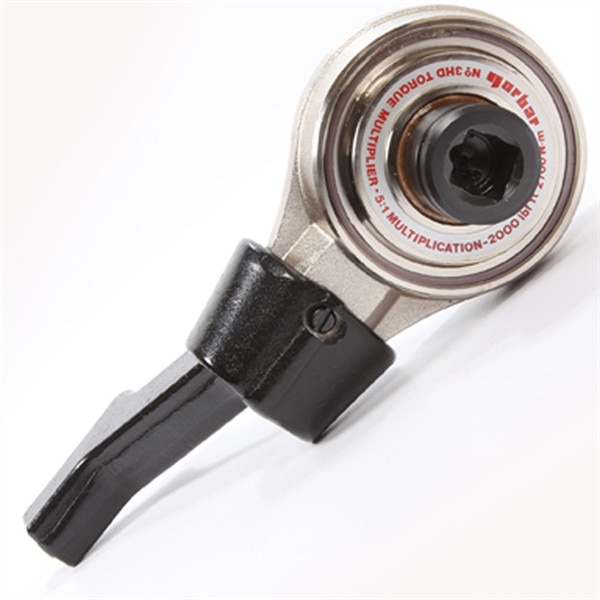

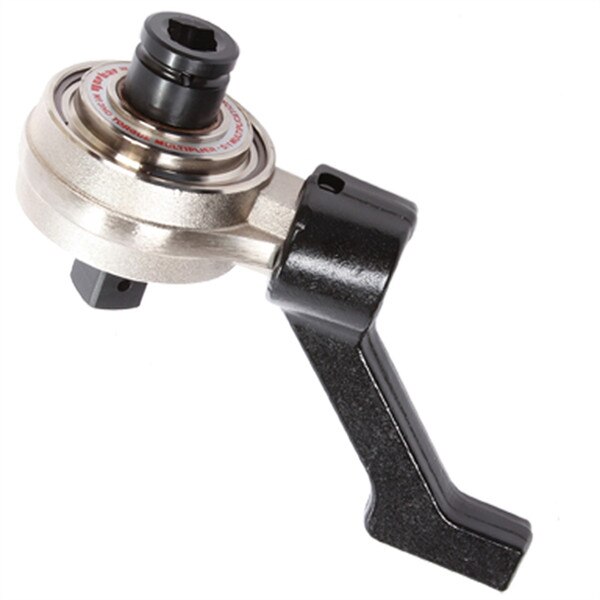

The 'Highwayman' torque multiplier has been designed for use where it is necessary to provide higher torques than would otherwise be possible due to limitations of space or operator strength. Input to the multiplier is via a ratchet torque wrench set to one fifth of the desired output torque.

Features:
  • 5:1 torque multiplication, accuracy guaranteed better than +/-4%.

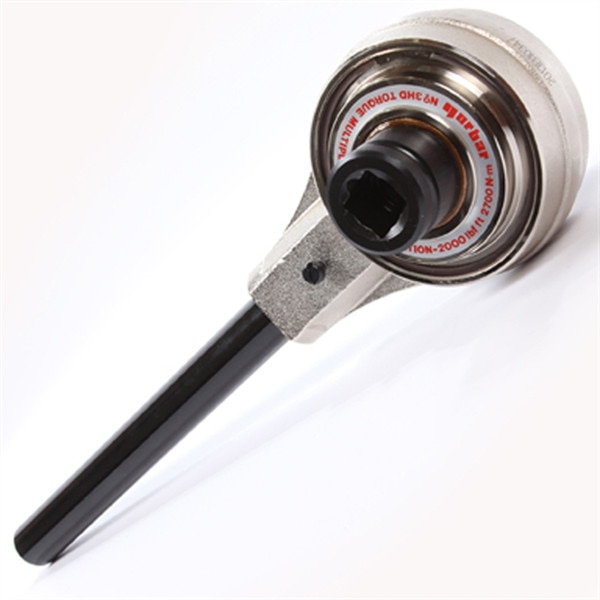

  • Supplied with two reaction bar styles for maximum versatility.
  • Robust construction means minimal maintenance and long life.

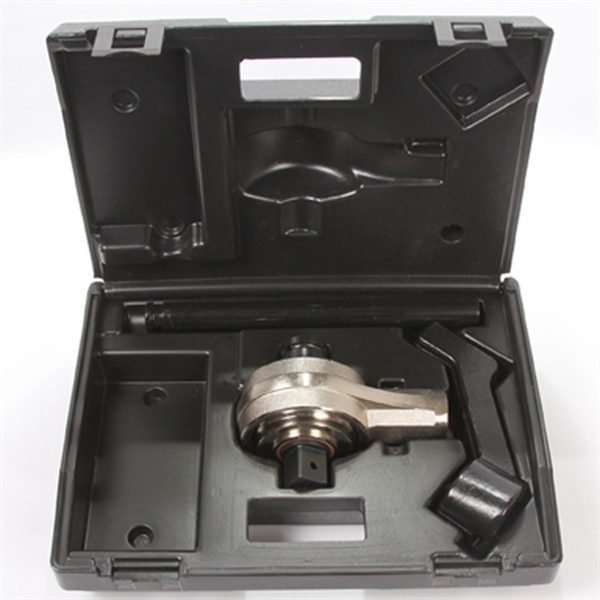

  • Supplied in a carrying case, the Highwayman is ideal for inclusion in the heavy vehicle kit.

Supplied with two reaction bar styles for maximum versatility. Ideal for inclusion in the heavy vehicle tool kit

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Features & Benefits

  • Robust construction means minimal maintenance and long life.
  • 5:1 torque multiplication, accuracy guaranteed better than ±4%.

Technical Information

Technical Specifications

Technical Specifications

SKU: 17220-norbar
Manufacturer Norbar
Model HT3 1300
Drive size 1/2'' square
Drive Type 3/4 in. Square
Length (mm) 210
Series HT3
Torque Range (Ft Lbs) - 960
Torque Range (Nm) 130 - 1300
Type Torque Multiplier
Weight1.7 lbs

We strive to provide as much technical information as possible. If you need more tech data, let us know!
